1.30.242.301/2207 Overview

Switch Actuators RAFIX 22 QR Selector switch 2x60

1.30.242.301/2207 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	RAFI
Product Category	Switch Actuators
RoHS	Details
Factory Pack Quantity	5

Preview

Download Datasheet

View All

18.06.2018

RAFIX 22 QR - Selector switch, illuminated, round collar, short

handle

1.30.242.301/2207

Included: Ring nut with claw.

Other handle marking colors available on request.

A contact block in position 3 or 5/6 (centre) is actuated when turning in either direction.

General information

Actuator

Marking of handle

Color of front ring

Form of collar

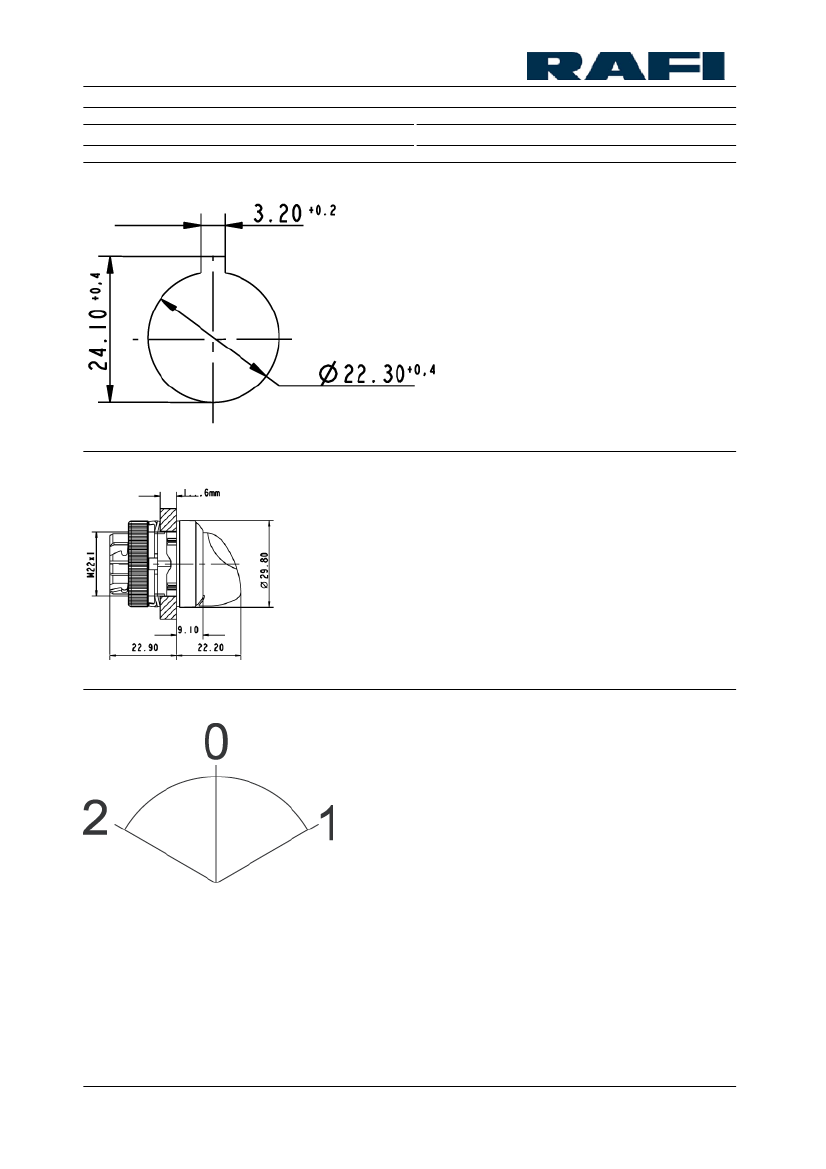

Dimensions

Dimensions of collar

Overall height

Mounting depth with contact block without cable

Mounting hole

Mounting grid

Diameter of collar

Mechanical design

Mounting

Contact function

Illumination

Rotating angle

Mechanical characteristics

Operating force max.

Torque max.

Electrical characteristics

Protection class

Other specifications

Operating life (operations)

Degree of protection from front side

Ambient temp. operating min.

Ambient temp. operating max.

Storage temperature min.

Storage temperature max.

Environmental restistance

handle

white

slate-grey

round

ø 29.8 mm

22.2 mm

56.4 mm

ø 22.3 mm

50 x 30 mm

29.8 mm

ring nut

latching

yes

2 x 60°

approx. 5 N for 1 switching element

2 Nm

500,000 cycle

IP65 (DIN EN 60529)

-25 °C

+70 °C

-40 °C

+80 °C

acc. to IEC 60068-2-14, -30, -33 and -78

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
