5.00.100.165/0000 Overview

Switch Contact Blocks / Switch Kits RAFIX 22 QR Switch element Au 1NO

5.00.100.165/0000 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	RAFI
Product Category	Switch Contact Blocks / Switch Kits
RoHS	Details
Factory Pack Quantity	10
Unit Weight	0.493835 oz

Preview

Download Datasheet

View All

21.05.2018

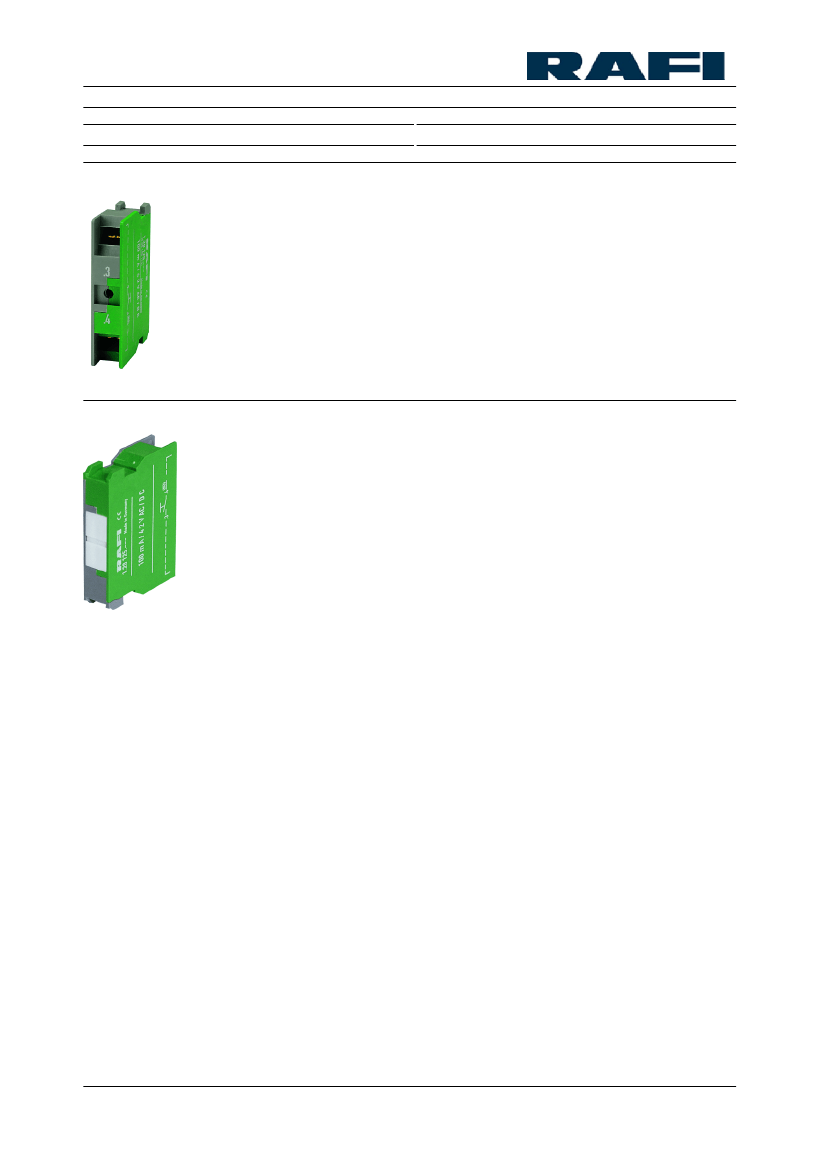

RAFIX 22 QR - Contact block with gold contacts, without

coupling, screw terminals, 1 NO

5.00.100.165/0000

Dimensions

Dimensions with coupling

Mounting depth without cable

Mechanical design

Mounting

Contact system

Contact materials

Contact arrangement

NC contact forcibly actuated acc. to IEC

60947-5-1

Terminals

Terminal marking

Robustness

Operating force

Wire range solid wires without wire end sleeves

Wire range stranded wires without wire end

sleeves

Stripping length, solid or stranded

Wire range with wire end sleeves

Electrical characteristics

Operating voltage AC/DC

Operating current AC/DC

Rated power max.

Lamp characteristics

Lamp socket

Other specifications

Operating life (operations)

Switching reliability at 24V/5mA DC

Robustness

Corresponding to CE

Shock resistance acc. to IEC 60068-2-27

Resistance to vibrations acc. to IEC 60068-2-6

Ambient temp. operating min.

Ambient temp. operating max.

Storage temperature min.

Storage temperature max.

Environmental restistance

39.5 x 49.9 x 30 mm

56.4 mm

snap on coupling and actuator

bridge-contact self cleaning

1 NO

yes

screw terminals

color encoded

100 N

-N

2 x 0.75 ... 2.5 mm²

2 x 1.0 ... 1.5 mm²

8 mm

2 x 0.75 ... 1.5 mm²

1 ... 35 V

0.01 ... 100 mA

1 W (ohmic load)

1,000,000 (24 V DC 10 mA)

10 x 10

-6

acc. to IEC 60947-5-5

acc. EU-guideline NSR 72/73

15 g at 11 ms, amplitude half sinusoidal

5 g at 10 ... 500 Hz

-25 °C

+70 °C

-40 °C

+80 °C

acc. to IEC 60068-2-14, -30, -33 and -78

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
