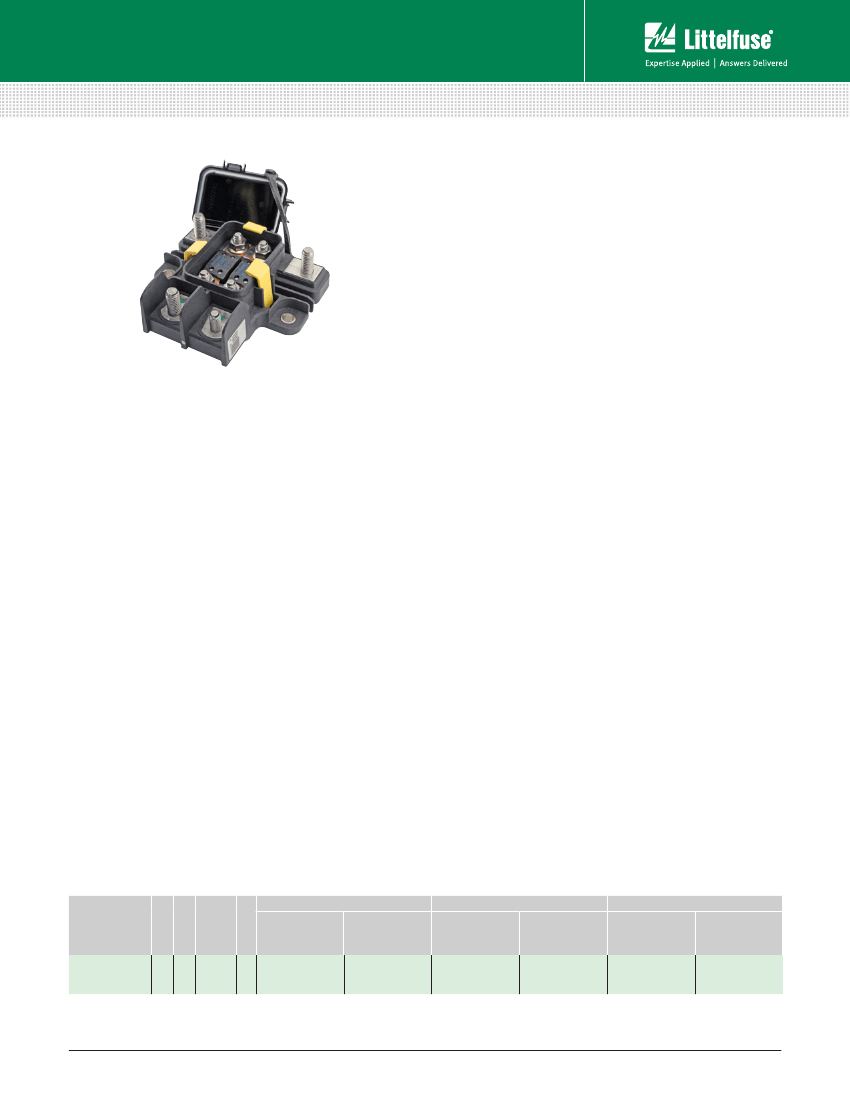

Commercial Vehicle Product Datasheet
HPDM SERIES POWER DISTRIBUTION MODULE
600 A • MEGA
®
Fuse • 2 Pole • Sealed • AssureLatch™
Description
The 2-Pole High Power Distribution Module (HPDM) is
designed for OEM and aftermarket applications in the
heavy truck and trailer industry. When connected to a
tractor / trailer’s electrical system it provides two high
current MEGA
®
fuse protected circuit outputs as well as
an un-fused output that can optionally be used to parallel
multiple modules or deliver power to circuits which do not
require circuit protection.
Specifications Overview
Max Voltage:
Max Input Current:
Max Current per Circuit:
Fuse Hardware:
Fuse Torque:
Input/Output Hardware:
Input/Output Torque:
Mounting Hardware:
Mounting Torque:
Operating Temp:
Ingress Protection:
Flammability Rating:
Dimensions:
48 Vdc
600 A
300 A
4x M8x1.25
(included)
15 Nm
1x M8x1.25, 3x M10x1.50
(sold separately)
20 Nm (Max install 300 RPM)
2x M8
(sold separately)
30 Nm
-50°C to +105°C
IP67, IP69K
UL94-V0
129 x 125 x 45 mm
Features and Benefits
• Separate fuse compartment provides a seal that protects
the fuses and their terminations from harsh environments.
This allows for permanent cable connections that can be
dielectrically sprayed without affecting the fuse.
• Custom insert-molded studs for input/output cable
terminations and MEGA
®
fuse attachment, resulting in high
terminal torque capability and lower connection resistance.
• Designed to minimize bridging corrosion between positive
live metal surfaces and potentially grounded assembly
hardware or mounting surfaces.
• Metal inserts at the mounting holes allows for an increased
assembly torque without distorting the base material.
• Optional un-fused terminal for daisy chaining multiple
devices or providing power distribution to circuits which
cannot be fused.
• AssureLatch™ Technology positive-sealing latches keep the
cover securely in place while allowing for fast service.
• Cover label recess allows optional addition of application-
specific labels per end-customer requirements.
Web Resources
Download 2D print and technical resources at:
littelfuse.com/HPDM
Ordering Information
AMPERAGE
VOLTAGE
FUSE HARDWARE
FUSE
TYPE
POLES
SIZE
4x M8x1.25
(included)
TORQUE
15 Nm
INPUT/OUTPUT HARDWARE
SIZE
1x M8x1.25
3x M10x1.50
(sold separately)
MOUNTING HARDWARE
SIZE
2x M8
(sold separately)
PART NUMBER
TORQUE
20 Nm
(max install 300 RPM)
TORQUE
30 Nm
880195400
48 600 MEGA
®
2
Note: Custom fuses loadings available. Minimum order quantity required. Contact your manufacturing rep for details.
littelfuse.com
1 of 2
© 2016 Littelfuse Commercial Vehicle Products
Rev: 021616
Commercial Vehicle Product Datasheet

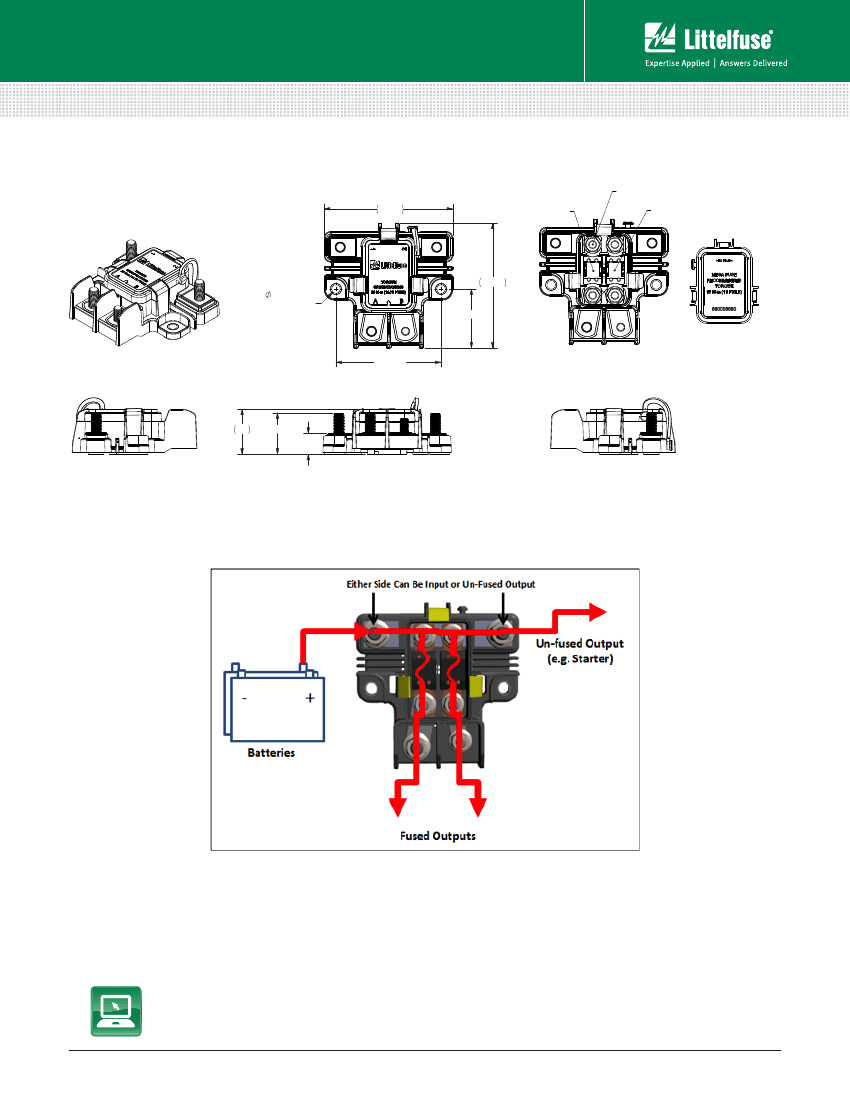

Dimensions in millimeters
4X
128.3
MEGA FUSE-A
MEGA FUSE-B
124.8
2X 8.50±0.1
MOUNTING HOLES
FOR M8 HARDWARE
58.97±0.2
INSIDE FUSE COVER
105±0.5
FUSE COVER REMOVED
45
3X 41.16±1
20.70±1
Application Drawing
Visit
Littelfuse.com
for the most up-to-date product information. Littelfuse reserves the right to make product changes, without notice.
Material in this document is as accurate as known at the time of publication.
littelfuse.com
2 of 2
© 2016 Littelfuse Commercial Vehicle Products
Rev: 021616
