Technical Data Sheet
7-16
Calibration Kit
Plug
60S34R-MSON3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

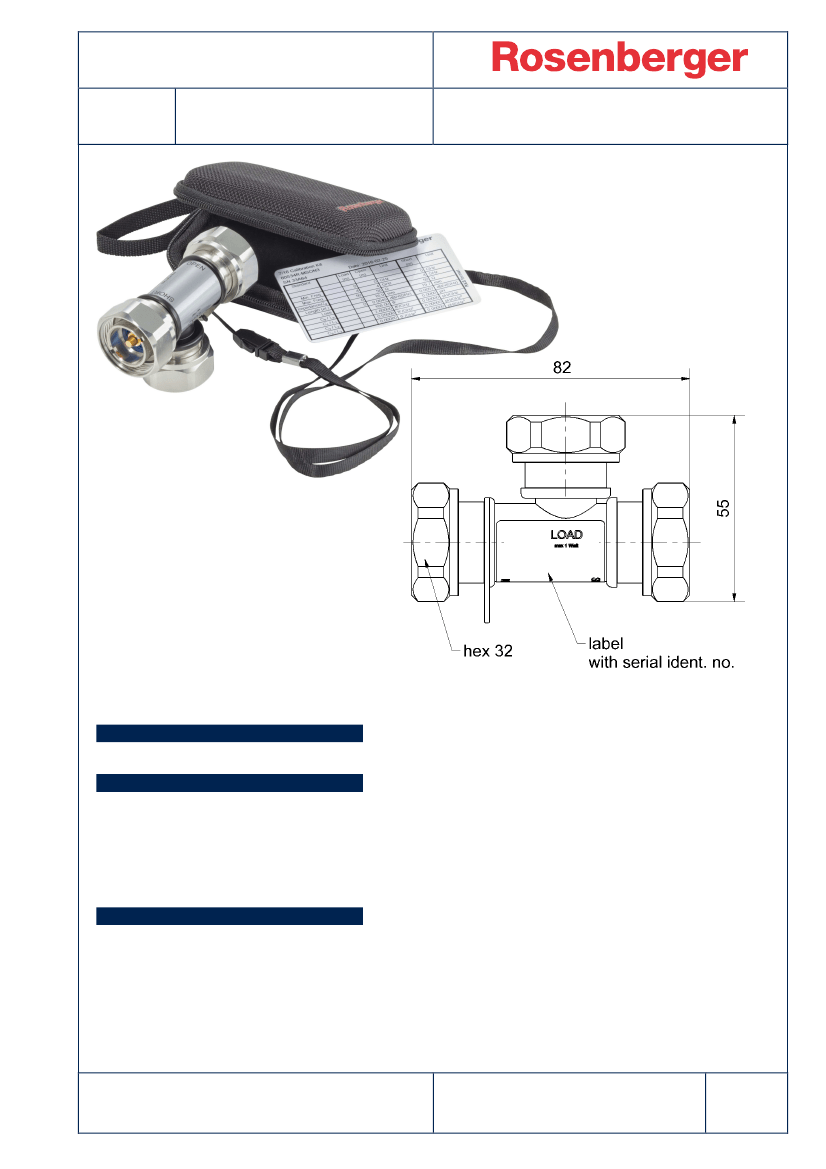

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 61169-4, EN 122190, DIN 47223
Documents
This kit is delivered with
•
Standard Definitions Card
Printed Standard Definitions that can be used on nearly all Vector Network Analyzers
•
Test Results Documentation
•
Lanyard
•
Hard Shell Case
Material and plating
Connector parts
Center conductor
Outer conductor
Body
Coupling nut
Dielectric
Substrate
Material
Brass
Brass
Brass
Brass
PP
Al
2
O
3
Plating
Gold, min. 1.27 µm, over nickel
Flash white bronze over silver(e.g. Optargen®)
powder coated
Flash white bronze over silver(e.g. Optargen®)
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/3
Technical Data Sheet
7-16
Calibration Kit
Plug
60S34R-MSON3
DC to 4 GHz
≤
0.15 dB, DC to 4 GHz
≤
3.0°, DC to 4 GHz
≤
0.15 dB, DC to 4 GHz
≤
3.0°, DC to 4 GHz
≥
40 dB, DC to 2.5 GHz
≥
38 dB, 2.5 GHz to 4 GHz
50
Ω ±
0.5
Ω
≤
1.0 W
Electrical data
Frequency range
Open
Return loss
Error from nominal phase
1
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Short
Return loss
Error from nominal phase
1
Load
Return loss
DC Resistance
Power handling
1
2
The nominal phase is defined by the Offset Delay, the Offset Loss and the Fringing Capacitances
The nominal phase is defined by the Offset Delay, the Offset Loss and the Short Inductance
Mechanical data
Mating cycles
Maximum torque
Recommended torque
Gauge
≥
500
30 Nm
2.26 Nm
1.47 mm to 1.77 mm
General standard definitions
For proper operation the vector network analyzer (VNA) needs a model describing the electrical behaviour
of this calibration standard. The different models, units, and terms used will depend on the VNA type and they
will have to be entered into the VNA. All values are based on typical geometry and plating.
Open
Offset Z
o
/ Impedance / Z
o
Offset Delay
Length (electrical) / Offset Length
Offset Loss
Loss
Fringing Capacitances
50
Ω
56.372 ps
16.90 mm
0.50 GΩ/s
0.0049 dB/
GHz
-15
C
0
= 168.000 x 10 F
C
1
=
C
2
=
C
3
=
2600.00 x 10
50.0000 x 10
-27
-36
-45
2
3
/
168.000 fF
2.60000 fF /GHz
0.05000 fF /GHz
0.00080 fF /GHz
2
3
F/Hz /
F/Hz /
F/Hz /
0.80000 x 10
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/3
Technical Data Sheet
7-16
Calibration Kit
Plug
60S34R-MSON3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Short
Offset Z
o
/ Impedance / Z
o
Offset Delay
Length (electrical) / Offset Length
Offset Loss
Loss
Short Inductance
50
Ω
65.712 ps
19.70 mm
0.50 GΩ/s
0.0057 dB/
GHz
-12
L
0
= 0.0000 x 10 H
L
1
= 0.0000 x 10
L
2
= 0.0000 x 10
L
3
= 0.0000 x 10
-24
-33
-42
/
/
/
/
2
3
0.0000 pH
0.0000 pH/GHz
0.0000 pH/GHz
2
3
H/Hz
H/Hz
H/Hz
0.0000 pH/GHz
Load
Offset Z
o
/ Impedance / Z
o
Offset Delay
Length (electrical) / Offset Length
Offset Loss
Loss
50
Ω
0.0000 ps
0.000 mm
0.00 GΩ/s
0.0000 dB/
GHz
Environmental data
Operating temperature range
Storage temperature range
RoHS
3
3
0 °C to +50 °C
- 55 °C to +90 °C
compliant
Temperature range over which these specifications are valid.
Declaration of documentation
Standard delivery for this kit includes Test Results. The documentation issued reports which quantities were
tested individually, traceable to national / international standards. Model based standard definitions of the
calibration standards are reported in Agilent / Keysight, Rohde & Schwarz and Anritsu compatible VNA format.
Inspection interval
Recommendation
12 months
Packing
Standard
Weight
1 pce in bag
332 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Kerstin Herzog
Date
10.07.06
Approved
Markus Müller
Date
26.10.17
Rev.
i00
Engineering change number
17-1795
Name
Marion Striegler
Date
26.10.17
