5903.41.0003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 5903.41.0003

5903.41.0003: DescriptionAttenuators - Interconnects; CategoryWireless rf/communication Radio frequency and microwave; File Size100KB，2 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

5903.41.0003 Overview

Attenuators - Interconnects

5903.41.0003 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
Reach Compliance Code	compliant
Is Samacsys	N
Other features	I/P POWER-MAX(PEAK)=500W
Nominal attenuation	3 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	46.99 dBm
Maximum operating frequency	6000 MHz
Minimum operating frequency
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

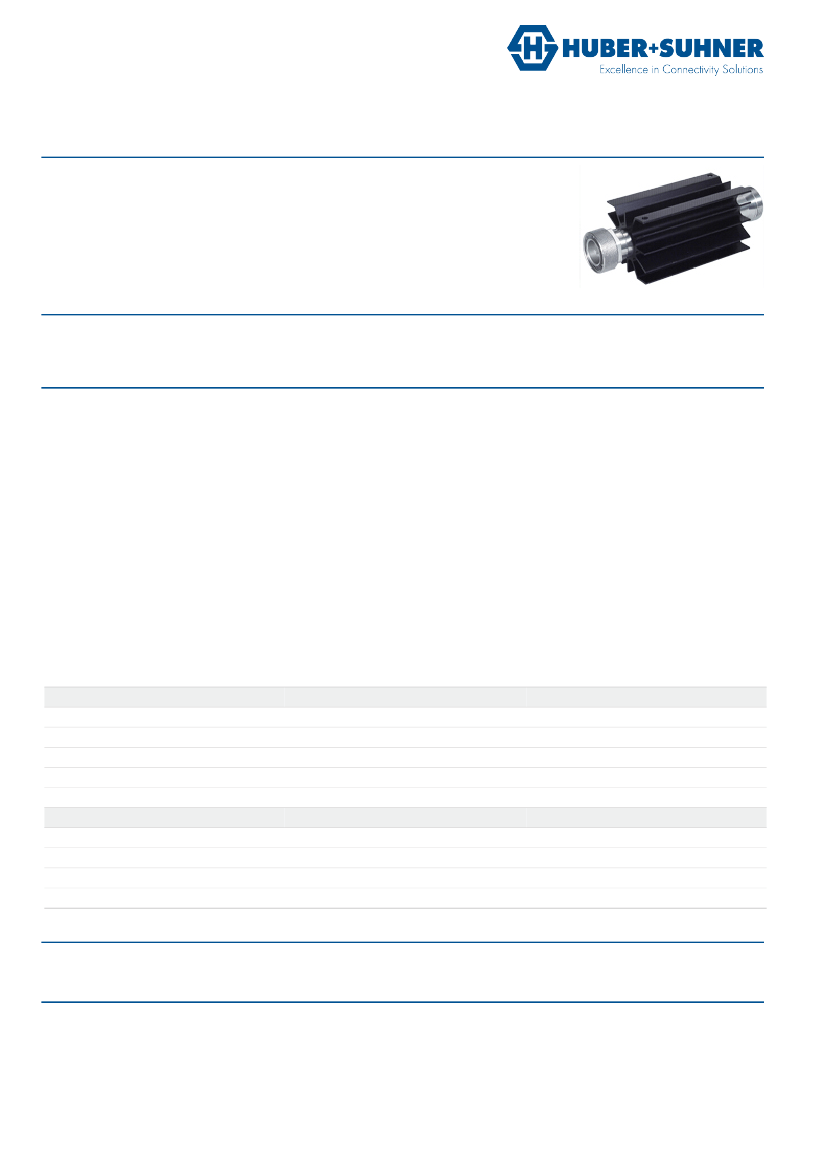

Data Sheet

RF Attenuator

5903.41.0003

Description

Standard Attenuator, Medium Power

Product Configuration

Connector (side 1 / side 2)

Interface Standards

7/16 plug (male) / 7/16 jack (female)

IEC 60169-4_CECC 22190_DIN 47223_VG 95250

Technical Data

Electrical Data

Nominal impedance

Nominal attenuation

Frequency range

Frequency sub range (GHz)

Attenuation deviation (±dB)

VSWR max.

Power rating

50 Ω

3 dB

DC to 6 GHz

DC to 2

0.2

1.1

2 to 6

0.3

1.25

50 Watt average power up to 30 ˚C ambient temperature, linearly derated to 0 Watt at 130 ˚C ambient

temperature.

Convection cooled.

500 Watt peak power, 5 µs pulse, 0.05 % duty cycle

Mechanical Data

Weight

0.555 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-55 °C to 130 °C

compliant

Material Data

Piece Part (side 1)

Centre contact

Outer contact

Body

Insulator

Coupling nut

Piece Part (side2)

Centre contact

Outer contact

Body

Insulator

Material

Bronze

Brass

Aluminium

PFA / PTFE

Brass

Material

Bronze

Brass

Aluminium

PFA / PTFE

SUCOPLATE (R) Plating

Surface Plating

Silver Plating

SUCOPLATE (R) Plating

Anodized

Surface Plating

Silver Plating

SUCOPLATE (R) Plating

Anodized
