Technical Data Sheet
QMA
Attenuator
Plug/Jack 2 Watt
28AS102-K30S3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

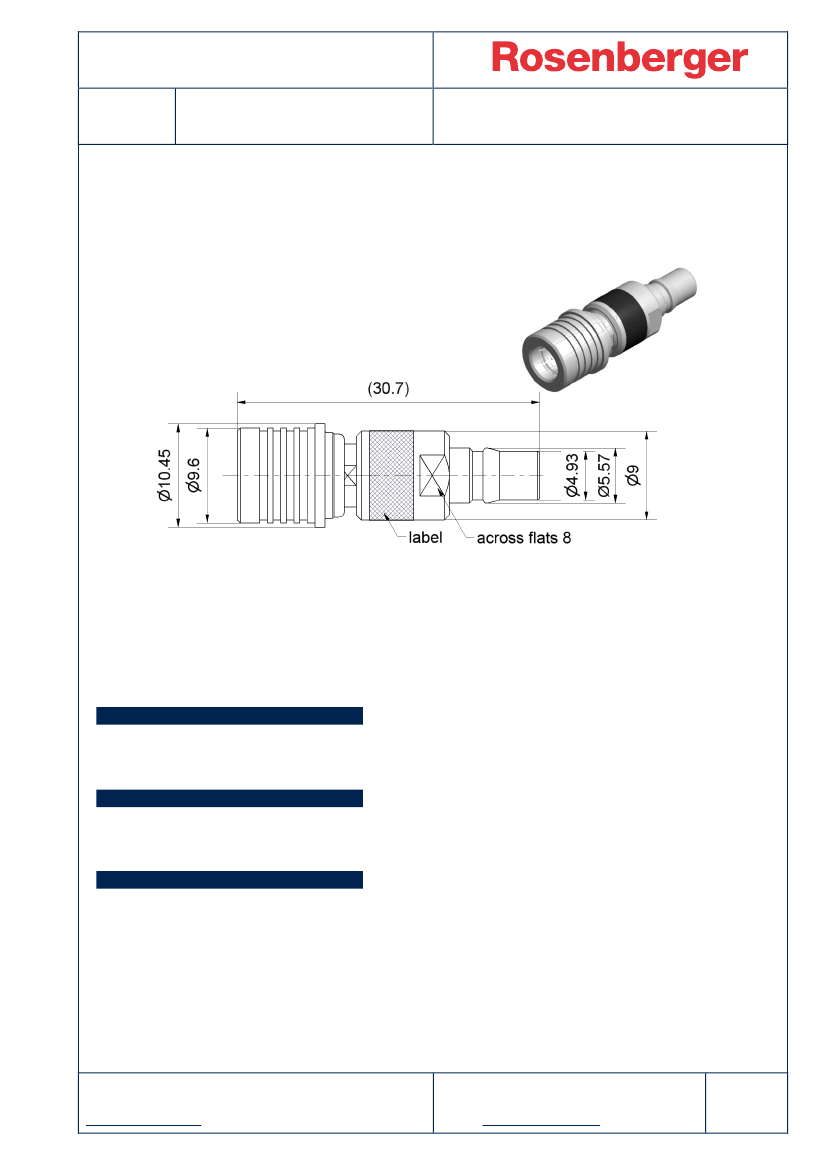

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
Rosenberger 28S000-000, series QMA
Rosenberger 28K000-000, series QMA
Rosenberger is an authorised QLF manufacturer
Documents
N/A
Material and plating
Connector parts
Center contact - plug
Center contact - jack
Outer contact
Dielectric
Unlocking sleeve
Substrate
Material
CuBe
CuBe
Stainless steel
PTFE
Brass
Al
2
O
3
Plating
Gold, min. 1.27 µm, over nickel
Gold, min. 1.27 µm, over nickel
Passivated
White bronze(e.g. Optalloy®)
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
QMA
Attenuator
Plug/Jack 2 Watt
28AS102-K30S3
50
Ω
DC to 6 GHz
≥
26.5 dB, DC to 2 GHz
≥
20.8 dB, 2 GHz to 6 GHz
30 dB
±
0.3 dB, DC to 2 GHz
30 dB
±
0.5 dB, 2 GHz to 6 GHz
≤
2 W at 25°C
Electrical data
Impedance
Frequency range
Return loss
Attenuation
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Power handling
Mechanical data
Mating cycles
Engagement force
Disengagement force
Retention force for interface
Gauge
≥
100
typ. 25 N
typ. 20 N
60 N min.
0.00 mm to 0.25 mm
Environmental data
Temperature range
RoHS
-40°C to +85°C
compliant
Packing
Standard
Weight
1 pce in bag
6.8 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Kerstin Herzog
Date
04/01/07
Approved
Markus Müller
Date
13/09/13
Rev.
c00
Engineering change number
13-0547
Name
Marion Striegler
Date
10/09/13
RF_35/05.10/6.0
