2271A Industrial
Pressure Calibrator
Technical Data
The complete pneumatic
pressure calibrator that grows
along with your workload
for wide workload coverage
now and in the future
The Fluke Calibration 2271A
Industrial Pressure Calibrator
provides a complete, automated
solution for calibrating a wide
variety of pressure gauges and
sensors. Thanks to its modular
design, it can be configured to
meet different needs and bud-
gets, and expanded to cover a
broad workload.
The 2271A is ideal for calibra-
tion laboratories starting out in
pressure calibration because it
offers wide pressure measure-
ment capabilities in a single
instrument. Everything you
need for calibrating pressure is
included; just connect supply
pressure. And your investment
will stand the test of time:
as your workload grows and
changes, the 2271A can grow
and change too. Just add mea-
surement modules.
The 2271A is also a great
fit for labs that currently cali-
brate pressure transmitters and
gauges and want to expand
their capabilities or make their
processes more efficient. This
instrument is easy to set up and
use, so you don’t have to reserve
it for your most experienced
technicians. And it can be fully
automated so it can help your lab
run more efficiently.
If you are concerned about
contamination from workload
coming in from the field, the
2271A is a good choice for you
as well. Its optional Contamina-
tion Prevention System (CPS)
provides an important safeguard
against that pervasive hazard.
A graphical user interface in
your choice of ten languages and
an intuitive menu structure, as
well as an intuitive hardware
design, make the 2271A remark-
ably easy to learn and to use.
2271A features at a glance
•
Calibrate a wide range of gauges
and sensors with a single
instrument
•
Wide measurement range
from -100 kPa to 20 MPa
(-15 psi to 3000 psi)
•
Removable pressure measure-
ment modules make it easy to
change or add measurement
ranges
•
Integrated electrical measure-
ment module provides a complete
solution for calibrating pressure
transmitters
•
Built-in dual test ports enable
you to connect multiple devices
under test (DUTs)
•
0.02 % FS pressure measurement
uncertainty
•
Localized graphical user inter-
face in choice of ten languages
1
3
4
2
14
5
6
7
8
10
13
11
17
9
16
15
14
12

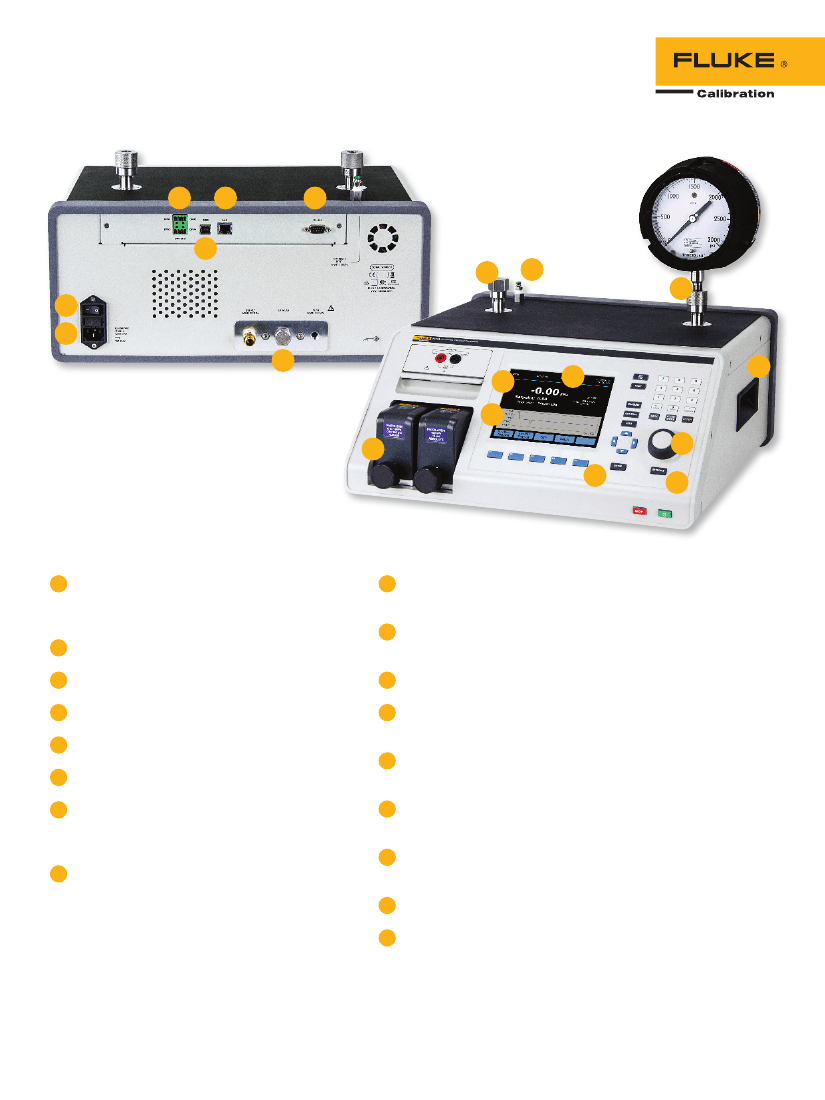

1
These external drivers are 24 V dc outputs that
operate accessories such as the Contamination
Prevention System
USB port
Ethernet connector
RS-232 connector
Master on/off switch
9
The large main display enables you to easily
view and edit important information
Real time graph makes it easy to see pressure
stability or procedure status
Function softkeys
Push the Setpoint button to quickly enter a
pressure value to control
Pressure measurement modules snap in and
out easily
Test ports provide easy, hand-tight
connection to devices under test
Reference port for applications that require an
atmospheric reference
Handle
Make minor adjustments to the pressure using
the jog wheel; ideal for calibration of analog
dial gauges
10
2
3
11
4
12
5
13
6
Line power fuse AC PWR INPUT Connector
All of the pressure connections are made
on the rear panel through this replaceable
manifold
Graphical user interface in choice of ten
languages features an easy-to-read, intuitive
menu structure that lets you access any feature
within four button presses or less
14
7
15
8
16
17
2 Fluke Corporation
2271A Industrial Pressure Calibrator
Wide workload coverage
for the present and the
future
The 2271A features pres-
sure ranges from -100 kPa to
20 MPa (-15 psi to 3000 psi),
which covers the requirements
of a wide range of gauges and
sensors. Thanks to its modular
design, the 2271A enables you
to install two modules with
different measurement ranges
within the same chassis. You can
purchase modules to match your
current workload now; later,
when your workload changes
and grows, you can easily add
ranges. This flexibility enables
you to maintain your investment
in the 2271A for years to come.
A built-in electrical measure-
ment module (EMM) with HART
capabilities enables you to per-
form closed loop, fully automated
calibration on 4-20 mA devices
such as smart transmitters,
gauges and switches. Just set up
the 2271A and then walk away
to attend to other tasks.
The EMM supplies 24 V dc
loop power for measuring mA
and V dc. It has a built-in 250
Ohm resistor that can be toggled
on or off, eliminating the need
to have an external resistor to
enable HART communications.
The 2271A accuracy specifi-
cations are provided in full and
supported by a technical note
that details its measurement
uncertainty so you know exactly
what you are getting. This
technical note is available for
download on the flukecal.com
website. As with all Fluke
Calibration instruments, these
specifications are conservative,
complete and dependable.

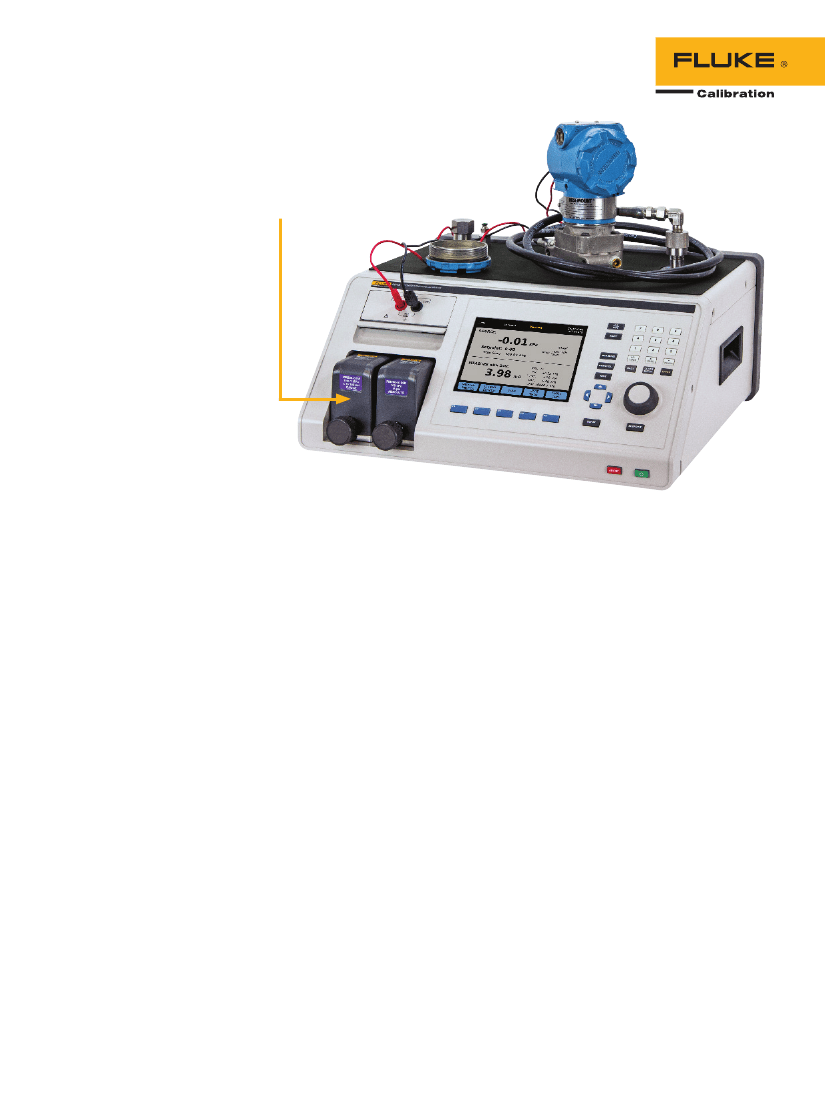

Install up to two pressure
modules in the 2271A
chassis at one time.
Use the 2271A to perform closed loop, fully automated calibration on
4-20 mA devices like this transmitter.
Versatile pressure
measurement modules
The 2271A uses PM200 Pressure
Measurement Modules. These
modules use a highly character-
ized silicon pressure sensor to
provide an economical method
of making accurate pressure
measurements. The 0.02 % full
scale (FS) specification includes
the short-term performance of
the module (linearity, hysteresis
and repeatability) as well as
its long-term stability and the
uncertainty of the calibration
standard. Users can be confi-
dent in the PM200 measurement
performance.
Install up to two pressure
modules in the 2271A chassis
at one time, mixing and match-
ing module ranges to get the
combination that best suits your
needs. There is no limit to the
number of modules that can be
used with the system, allowing
you to change pressure ranges
on the fly to meet your needs.
Modules snap in and out quickly
and easily through the front of
the 2271A; just slide each into
a specially-designed track and
tighten the knob until you hear
it click into place. The click
tells you the module is safely
in place; a special anti-torque
guard on the knob prevents
over-tightening so you never
have to wonder if you tightened
it too much or not enough.
Each module uses an
enhanced face-seal design that
has been leak tested to pres-
sures three times higher than
the maximum working pressure.
You don’t have to worry about a
leak in the system affecting your
ability to measure and control
pressure.
3 Fluke Corporation
2271A Industrial Pressure Calibrator
and integral support for M20
connections, whereas the P3000
style test port provides back-
wards compatibility for users of
Fluke Calibration P3000 dead-
weight testers or P5500 pressure
comparators.
A reference port is also
located on top of the 2271A for
applications that require an
atmospheric reference.
Preventing contamination
If your workload includes devices
that contain different substances
like water, oil and gas, you
could be at risk for contamina-
tion—something getting into your
system that isn’t supposed to be
there. Contamination can clog
a calibrator’s valves, wear out
its parts, and make it difficult to
maintain pressure. If the con-
tamination gets into the sensor,
it can actually change the cali-
brator’s behavior and throw off
your readings. If contamination
is a concern to you, order the
optional Contamination Preven-
tion System (CPS) to help keep
the calibrator’s valves clean and
free from debris.
The CPS provides an unprec-
edented level of protection by
maintaining uni-directional
flow away from the controller, a
gravity sump system, and a two-
stage filtering system.
Safety features protect
operators and instruments

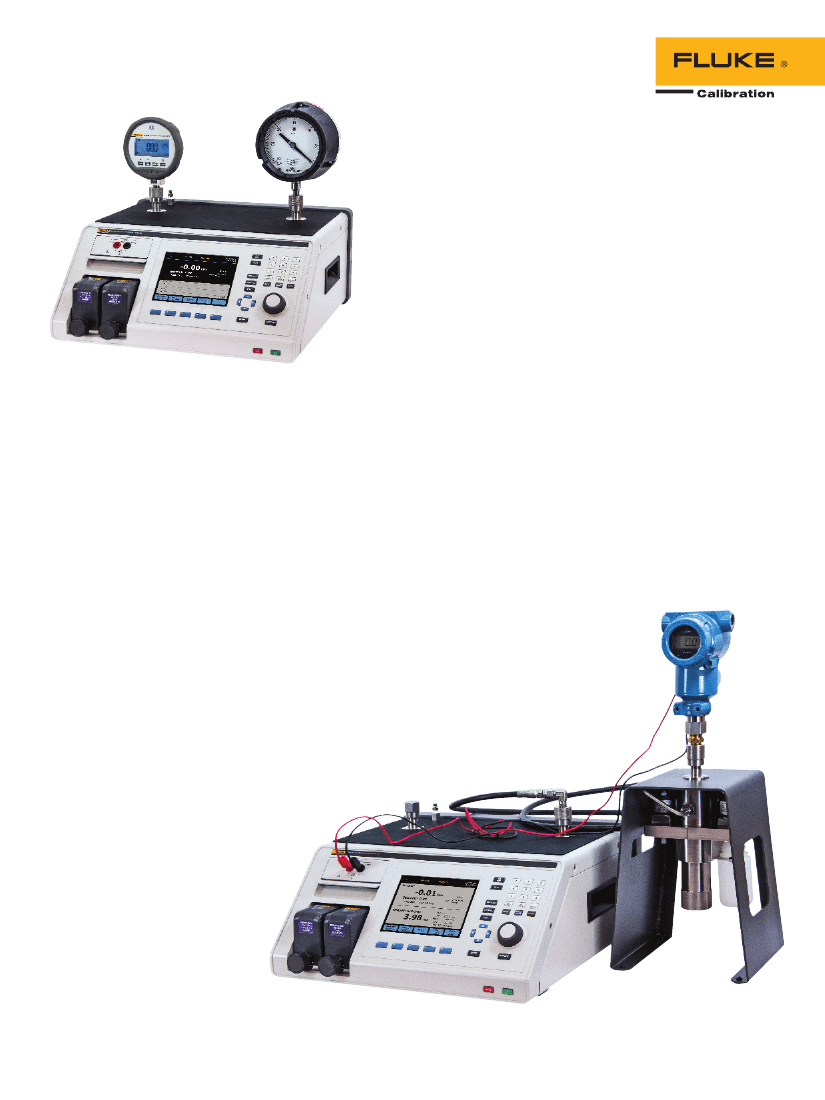

Dual test ports on top of the 2271A
let you easily mount two devices
under test.
Conveniently located
dual test ports and
reference port
Dual test ports on the top of
the 2271A let you easily mount
two devices under test (DUTs).
You can potentially double your
throughput without spending
time searching for fittings and
tees. The vertical test ports let
you easily connect analog dial
gauges without the need for
additional test stands or mani-
folds. Two test port types are
supported, the standard HC20
or the P3000 test port. Both
types of test ports enable you to
make hand tight connections to
traditional NPT, BSP, or metric
pressure fittings. The HC20 test
port includes easy grip features
Each measurement module, as
well as the main chassis, has
pressure relief valves to protect
the instrument and its operators
from accidental overpressure.
The 2271A has been designed
using Sound Engineering Prac-
tices (SEP). With the internal
relief valves, user-settable pres-
sure limits, and emergency abort
button, safety is the highest
priority.
The Contamination Prevention System helps keep the valves on the 2271A clean
and free from debris.
4 Fluke Calibration
2271A Industrial Pressure Calibrator
Automation, support and
training
Automate with COMPASS
®
software for improved con-
sistency and throughput
Fluke Calibration COMPASS for
Pressure software is designed
specifically for pressure calibra-
tion. It enables you to automate
the 2271A and run complete
pressure calibration sequences
on single or multiple devices
under test. COMPASS software
removes the unknowns often
associated with getting auto-
mated systems online. The
2271A also features a full remote
interface that enables you to
use it with custom software or
other data acquisition equip-
ment. Details about the interface
are provided in the 2271A User
Manual.
Electrical Calibration Products
Electrical Calibration Products
Instrument CarePlan
Instrument CarePlan
Gold CarePlans
Annual calibration
Free repairs with guaranteed
turnaround time
Pre-paid priority freight on return
of instrument
Free product updates
Discounts on product upgrades
Discounts on training
Silver CarePlans
Extended warranty coverage
beyond original factory warranty
Calibration included on repair
Free product updates performed at
time of repair
Discounts on regular calibrations
and out-of-plan service charges
CarePlans help you manage
cost of ownership
A range of training options
gets you up and running
quickly
We sponsor pressure and flow
calibration courses in our Phoe-
nix, Arizona facility in the United
Reduce downtime and control
States. We also host periodic
your cost of ownership with a
CarePlan. Fluke Calibration offers web seminars at no charge on a
wide variety of pressure calibra-
one-year, three-year and five-
tion topics. If you need service
year Priority Gold CarePlans,
or maintenance training to help
which feature an annual stan-
you maintain your fleet of pres-
dard or accredited calibration
sure controllers, we can help you
of your 6270A calibrator with
there, too.
guaranteed six-day in-house
turnaround, plus free repairs
with guaranteed ten-day
We’re here to help
in-house repair (includes cali-
Fluke Calibration’s testing, repair
We sponsor pressure and flow calibration courses in
bration). One-year, three-year,
and calibration services are
and five-year Silver CarePlans
our Phoenix, Arizona facility.
are available for those customers dedicated to filling your needs
quickly and at a fair cost while
who only want extended war-
maintaining the unmatched level
ranty coverage.
of quality that is our trademark.
Our pressure calibration labo-
ratories are accredited by the
American Association for Labo-
ratory Accreditation (A2LA) for
conformance to ISO Guide 17025.
We maintain global calibration
and repair facilities to help you
keep your hardware in top work-
ing order.
5 Fluke Calibration
2271A Industrial Pressure Calibrator
京公网安备 11010802033920号
EEWORLD
