5910_N-50-300/199_NE datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 5910_N-50-300/199_NE

5910_N-50-300/199_NE: DescriptionAttenuators - Interconnects; CategoryWireless rf/communication Radio frequency and microwave; File Size110KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

5910_N-50-300/199_NE Overview

Attenuators - Interconnects

5910_N-50-300/199_NE Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	N-F; N-M, I/P POWER-MAX(PEAK)=2000W
Nominal attenuation	10 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	54.77 dBm
JESD-609 code	e4
Maximum operating frequency	4000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

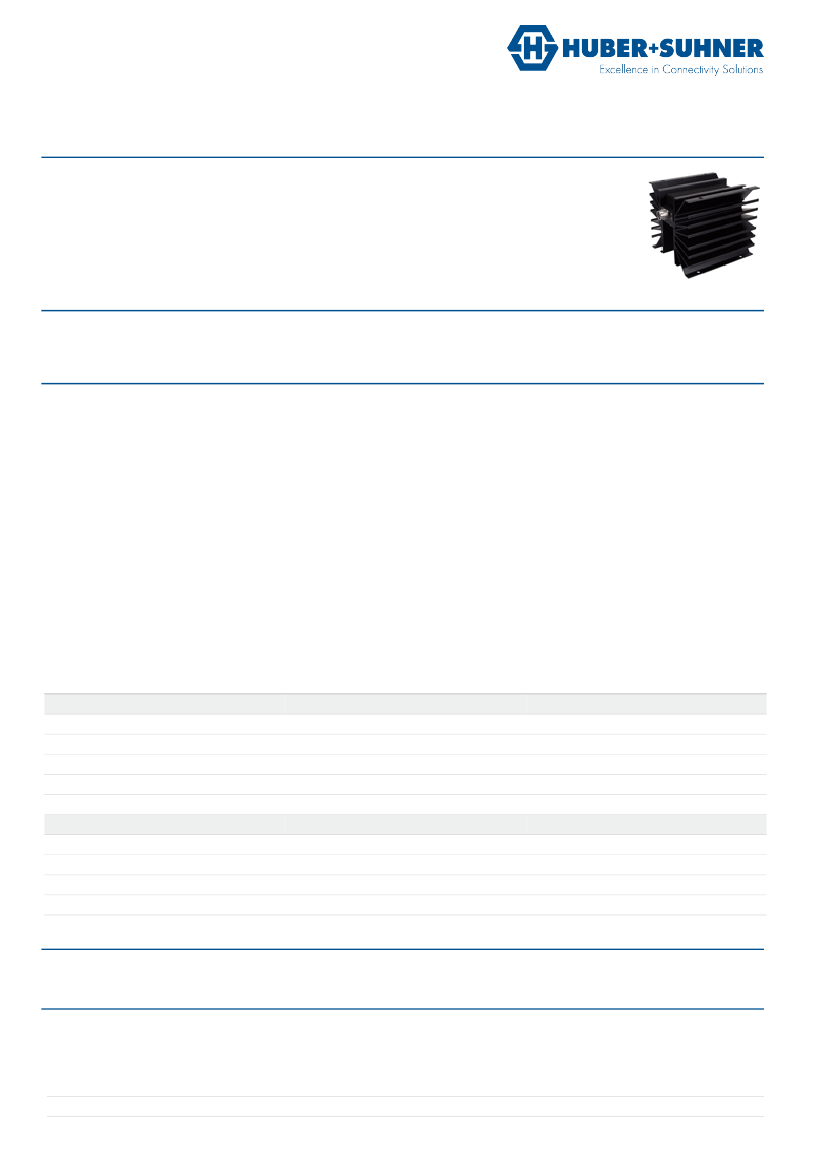

Data Sheet

RF Attenuator

5910_N-50-300/199_N

Description

Standard Attenuator, High Power

Product Configuration

Connector (side 1 / side 2)

Interface Standards

N plug (male) / N jack (female)

IEC 60169-16_MIL-STD-348A/304_CECC 22210

Technical Data

Electrical Data

Nominal impedance

Nominal attenuation

Frequency range

Frequency sub range (GHz)

Attenuation deviation (±dB)

VSWR max.

Power rating

50 Ω

10 dB

DC to 4 GHz

DC to 1.5

0.75

1.15

1.5 to 2.5

1.25

2.5 to 4

1.5

1.35

300 Watt average power up to 25 ˚C ambient temperature, linearly derated to 60 Watt at 125 ˚C ambient

temperature.

Free airflow convection necessary to ensure power performances. Unit is unidirectional, therefore don't swap

input with output (note: input is usually on the male side, otherwise follow instructions on the heatsink)

2000 Watt peak power, 5 µs pulse, 0.05 % duty cycle

Mechanical Data

Weight

2.64 kg

Environmental Data

Operating temperature

2011/65/EC (RoHS)

-54 °C to 125 °C

compliant

Material Data

Piece Part (side 1)

Centre contact

Outer contact

Body

Insulator

Coupling nut

Piece Part (side2)

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Stainless Steel

Aluminium

PTFE (Polytetrafluoroethylene)

Stainless Steel

Material

Copper Beryllium Alloy

Stainless Steel

Aluminium

PTFE (Polytetrafluoroethylene)

Passivated (Plating)

Surface Plating

Gold Plating (without Nickel underplating)

Passivated (Plating)

Anodized

Surface Plating

Gold Plating (without Nickel underplating)

Passivated (Plating)

Anodized
