BR24A04F-WLBH2

Description
EEPROM I2C BUS 4K 2.5-5.5 Ind SOP8
Categorystorage    storage
File Size1MB,30 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BR24A04F-WLBH2 Online Shopping

Suppliers Part Number Price MOQ In stock
BR24A04F-WLBH2 - - View Buy Now

BR24A04F-WLBH2 Overview

EEPROM I2C BUS 4K 2.5-5.5 Ind SOP8

BR24A04F-WLBH2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerROHM Semiconductor
package instructionSOP-8
Reach Compliance Codecompliant
Factory Lead Time11 weeks
Other featuresALSO AVAILABLE IN 100KHZ AND SEATED HT-CALCULATED
Maximum clock frequency (fCLK)0.4 MHz
JESD-30 codeR-PDSO-G8
length5 mm
memory density4096 bit
Memory IC TypeEEPROM
memory width8
Number of functions1
Number of terminals8
word count512 words
character code512
Operating modeSYNCHRONOUS
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
organize512X8
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Parallel/SerialSERIAL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum seat height1.71 mm
Serial bus typeI2C
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width4.4 mm
Maximum write cycle time (tWC)5 ms
Datasheet
Serial EEPROM Series Industrial EEPROM
105℃ Operation I
2
C BUS EEPROM (2-Wire)
BR24AxxF-WLB
(1K 2K 4K 8K 16K 32K 64K)
General Description
This is the product guarantees long time support in Industrial market.
BR24AxxF-WLB is a serial EEPROM of I
2
C BUS interface method.
Features
Long Time Support Product for Industrial Applications.
Completely conforming to the world standard I
2
C BUS.
All controls available by 2 ports of serial clock
(SCL) and serial data (SDA)
Wide temperature range -40℃ to +105℃
Other devices than EEPROM can be connected to
the same port, saving microcontroller port
2.5V to 5.5V single power source operation most
suitable for battery use
Page write mode useful for initial value write at
factory shipment
Auto erase and auto end function at data rewrite
Low current consumption
At write operation (5V)
: 1.2mA (Typ.)
*1
At read operation (5V)
: 0.2mA (Typ.)
At standby condition (5V) : 0.1μA (Typ.)
Write mistake prevention function
Write (write protect) function added
Write mistake prevention function at low voltage
Data rewrite up to 1,000,000 times(Ta≦25℃)
Data kept for 40 years(Ta≦25℃)
Noise filter built in SCL / SDA terminal
Shipment data all address FFh
*1 BR24A32F-WLB, BR24A64F-WLB : 1.5mA
Package
W(Typ.) x D(Typ.) x H(Max.)
SOP8
5.00mm x 6.20mm x 1.71mm
Application
Industrial Equipment
Page write
Number of Pages
Product
number
8Byte
BR24A01AF-WLB
BR24A02F-WLB
16Byte
BR24A04F-WLB
BR24A08F-WLB
BR24A16F-WLB
32Byte
BR24A32F-WLB
BR24A64F-WLB
BR24AxxF-WLB
Capacity
1Kbit
2Kbit
4Kbit
8Kbit
16Kbit
32Kbit
64Kbit
Bit format
128×8
256×8
512×8
1K×8
2K×8
4K×8
8K×8
Type
BR24A01AF-WLB
BR24A02F-WLB
BR24A04F-WLB
BR24A08F-WLB
BR24A16F-WLB
BR24A32F-WLB
BR24A64F-WLB
Power source voltage
2.5V to 5.5V
2.5V to 5.5V
2.5V to 5.5V
2.5V to 5.5V
2.5V to 5.5V
2.5V to 5.5V
2.5V to 5.5V
Package
SOP8
○Product
structure: Silicon monolithic integrated circuit
www.rohm.com
©2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½14½001
○This
product has no designed protection against radioactive rays
1/26
TSZ02201-0R1R0G100240-1-2
29.Jan.2018 Rev.003

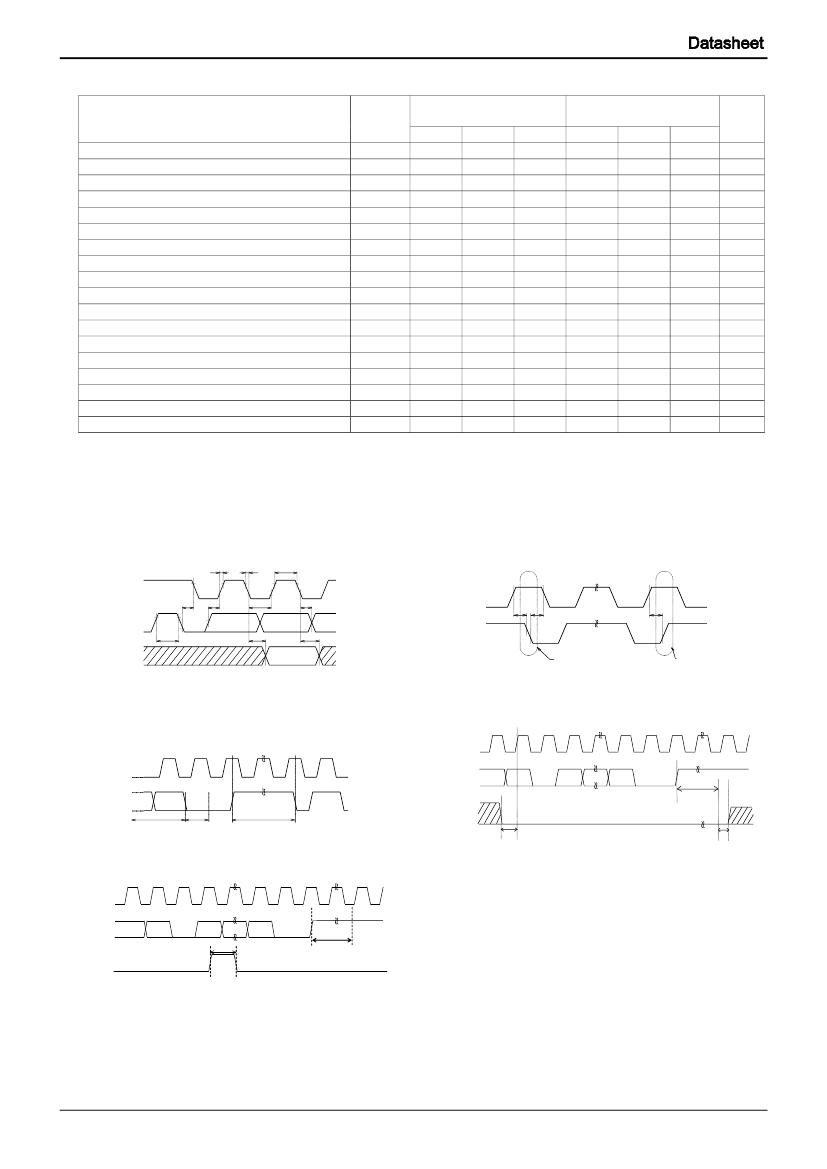

BR24A04F-WLBH2 Related Products

BR24A04F-WLBH2 BR24A08F-WLBH2 BR24A32F-WLBH2 BR24A01AF-WLBH2 BR24A64F-WLBH2
Description EEPROM I2C BUS 4K 2.5-5.5 Ind SOP8 EEPROM I2C BUS 8K 2.5-5.5 Ind SOP8 EEPROM I2C BUS 32K 2.5-5.5 Ind SOP8 EEPROM I2C BUS 1K 2.5-5.5 Ind SOP8 EEPROM I2C BUS 64K 2.5-5.5 Ind SOP8
Is it Rohs certified? conform to conform to conform to conform to conform to
Maker ROHM Semiconductor ROHM Semiconductor ROHM Semiconductor ROHM Semiconductor ROHM Semiconductor
package instruction SOP-8 SOP-8 SOP-8 SOP-8 SOP-8
Reach Compliance Code compliant compliant compliant compliant compliant
Factory Lead Time 11 weeks 11 weeks 11 weeks 11 weeks 11 weeks
Other features ALSO AVAILABLE IN 100KHZ AND SEATED HT-CALCULATED ALSO AVAILABLE IN 100KHZ AND SEATED HT-CALCULATED ALSO AVAILABLE IN 100KHZ AND SEATED HT-CALCULATED ALSO AVAILABLE IN 100KHZ AND SEATED HT-CALCULATED ALSO AVAILABLE IN 100KHZ AND SEATED HT-CALCULATED
Maximum clock frequency (fCLK) 0.4 MHz 0.4 MHz 0.4 MHz 0.4 MHz 0.4 MHz
JESD-30 code R-PDSO-G8 R-PDSO-G8 R-PDSO-G8 R-PDSO-G8 R-PDSO-G8
length 5 mm 5 mm 5 mm 5 mm 5 mm
memory density 4096 bit 8192 bit 32768 bit 1024 bit 65536 bit
Memory IC Type EEPROM EEPROM EEPROM EEPROM EEPROM
memory width 8 8 8 8 8
Number of functions 1 1 1 1 1
Number of terminals 8 8 8 8 8
word count 512 words 1024 words 4096 words 128 words 8192 words
character code 512 1000 4000 128 8000
Operating mode SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C
organize 512X8 1KX8 4KX8 128X8 8KX8
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP SOP SOP SOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Parallel/Serial SERIAL SERIAL SERIAL SERIAL SERIAL
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum seat height 1.71 mm 1.71 mm 1.71 mm 1.71 mm 1.71 mm
Serial bus type I2C I2C I2C I2C I2C
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V
surface mount YES YES YES YES YES
technology CMOS CMOS CMOS CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
width 4.4 mm 4.4 mm 4.4 mm 4.4 mm 4.4 mm
Maximum write cycle time (tWC) 5 ms 5 ms 5 ms 5 ms 5 ms
