PXV1220S-4DBN2-T Overview

Attenuators 4.0dB +/-0.5dB 50ohm 63mW

PXV1220S-4DBN2-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUSUMU
Reach Compliance Code	compliant
Nominal attenuation	4 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	17.99 dBm
JESD-609 code	e3
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Matte Tin (Sn)
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

Components

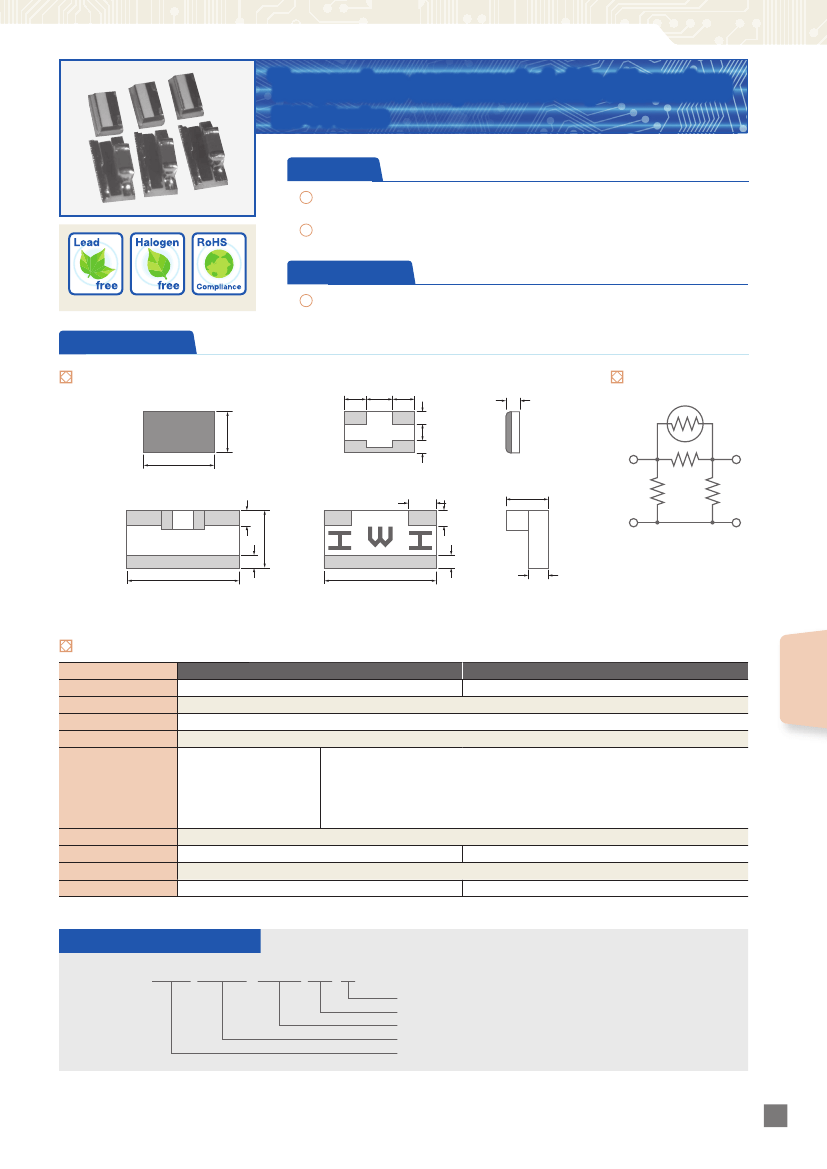

Temperature compensated chip attenuators

■

P＊V series

Features

●

For simplifying temperature drift compensation of GaAs high frequency

amplifiers

●

Excellent high frequency characteristics

Applications

※ Except for

　Chinese RoHS

●

Base station and others

Specifications

▪

Dimensions

＊All made to order.

0.65 0.70 0.65

±0.35 ±0.2 ±0.35

0.35±0.2

1.25±0.2

0.55±0.2

0.35±0.2

0.9±0.2

▪

Equivalent circuits

PXV1220S

2.0±0.2

0.55±0.25

1.0±0.2

0.4±0.2

1.5max

PBV1632S

1.60±0.2

0.4±0.2

3.2±0.2

0.4±0.2

3.2±0.2

0.4±0.1

（unit mm）

：

Front side

Back side

▪

Electrical characteristics

Series name

Attenuation

Attenuation tolerance

Impedance

VSWR

ex : 6dB

High frequency surface

mount components

PXV1220S

1, 2, 3, 4, 5, 6, 7, 8, 9, 10dB

50Ω

1.3max.

N1 0.0119dB/dB*℃

N2 0.0088dB/dB*℃

N3 0.0062dB/dB*℃

N4 0.0047dB/dB*℃

DC〜 3GHz

63mW

−40 ℃〜＋100 ℃

100pcs/bag　1,000pcs/reel

±0.5dB

（@25 ℃, no load）

PBV1632S

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 16dB

＊

P V series

Temperature

coefficient of

attenuation

Operating frequency

Rated power

Operating temperature

Packaging

N1 〜 N8

（1 〜 3dB : N1 〜 N9）

N5 0.0041dB/dB*℃

N6 0.0035dB/dB*℃

N7 0.0026dB/dB*℃

N8 0.0019dB/dB*℃

100mW

min.20pcs/bag　1,000pcs/reel

・Refer to the data book for details.
