CDPH73NP-271NC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CDPH73NP-271NC

CDPH73NP-271NC: DescriptionCDPH73; CategoryPassive components inductor; File Size72KB，6 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDPH73NP-271NC Overview

CDPH73

CDPH73NP-271NC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2929
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	2929
structure	Magnetically Shielded
DC Resistance	1.9 Ω
Nominal inductance(L)	270 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	3.6 mm
Package length	7.3 mm
Package form	SMT
Package width	7.3 mm
method of packing	Tape
Maximum rated current	0.28 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	25%

Preview

Download Datasheet

View All

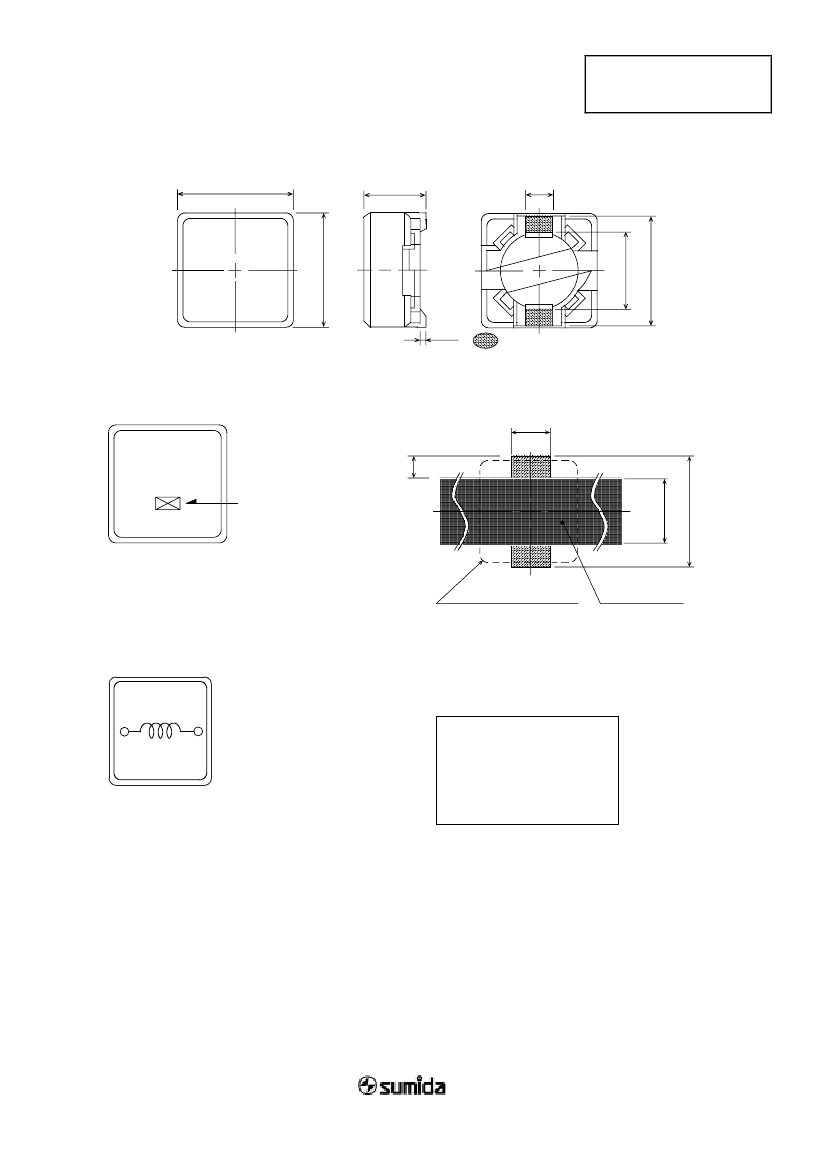

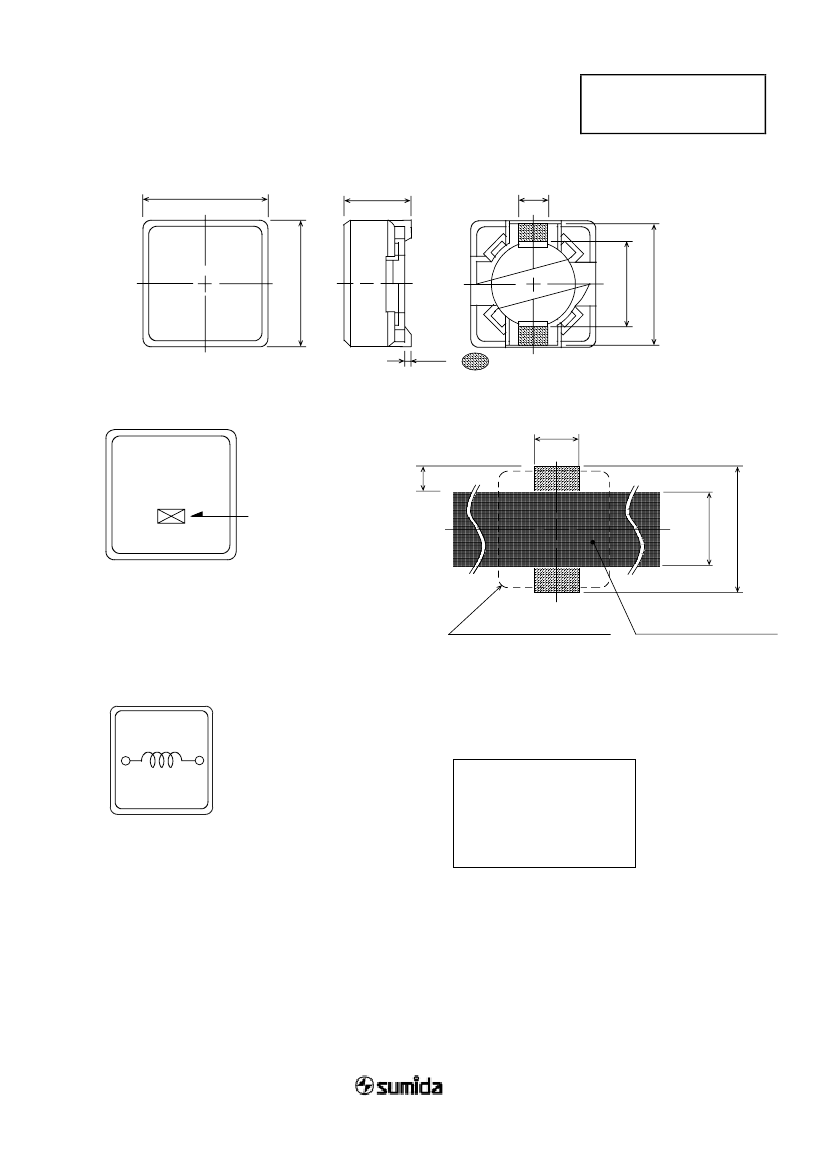

名

ＣＤＰＨ７３

仕様書

１．外½

1-1.寸法図(mm)

7.3±0.2

MAX.3.6

1.8

7.3±0.2

5.4±0.2

0.2

電極部

＊公差のない寸法は、参考値とする。

1-2.捺印表示例

1-3.推奨ランド寸法(mm)

2.2

1.6

10 0

4.8

8.0

½造密番

頭部直捺印

捺印½½不定

CDPH73の外½図とする。

シルク処理部

電極(端子)間の隙間はシルク処理をして御½用下さい。

２．コイル仕様

2-1.端子接続図(裏面図)

RoHS

compliance

Cd:Max.0.01wt%

others:Max.0.1wt%

7.2±0.2
