9318-21-01-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 9318-21-01-01

9318-21-01-01: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size97KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9318-21-01-01 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

9318-21-01-01 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.2 inch
subject depth	0.1 inch
body length	0.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	9300
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18
Base Number Matches	1

Preview

Download Datasheet

View All

Specifications

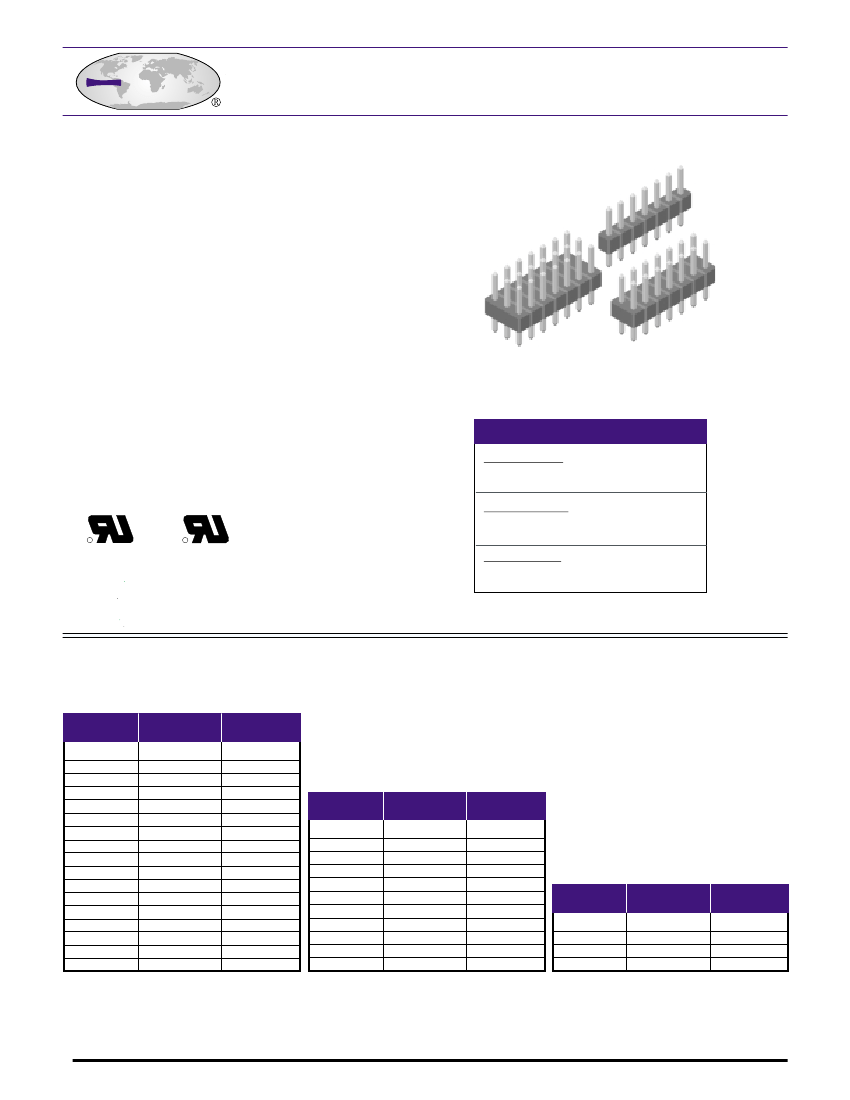

.100 Centers Strip Headers

9300 Series Headers

Insulator Material: Glass filled polyester, Type PBT,

94V-O, UL Recognized.

Contact Material: Copper Alloy

Contact Plating: Gold and/or Tin over .000050” Ni

(See contact plating options).

Current Rating:

3 amps at 30°C

Insulation Resistance:

5000 M ohms min.

Dielectric Withstand Voltage:

1000 VAC

Press-Fit Section Insertion Force:

40 lbs max per contact

Press-Fit Section Withdrawal Force:

10 lbs min per contact

Hole Size Requirements:

Drilled Hole Dia.: .0453± .001

Plating: .001 to .003 copper and

.0003 min Tin/Lead.

Finished Hole Diameter:

.040 ± .003

SUGGESTED MATING CONNECTORS

SINGLE ROW:

93XXS-AX-XX-XX (PAGE F-45)

93XXS-EX-11-XX (PAGE F-47)

DOUBLE ROW:

93XXS-BX-XX-XX (PAGE F-45)

93XXS-FX-XX-XX (PAGE F-48)

TRIPLE ROW:

93XXS-CX-XX-XX (PAGE F-45)

93XXS-DX-11-XX (PAGE F-45)

Recognized under the recognized component

Program of Underwriters Laboratories, Inc.

File Numbers: E146967 and E176234

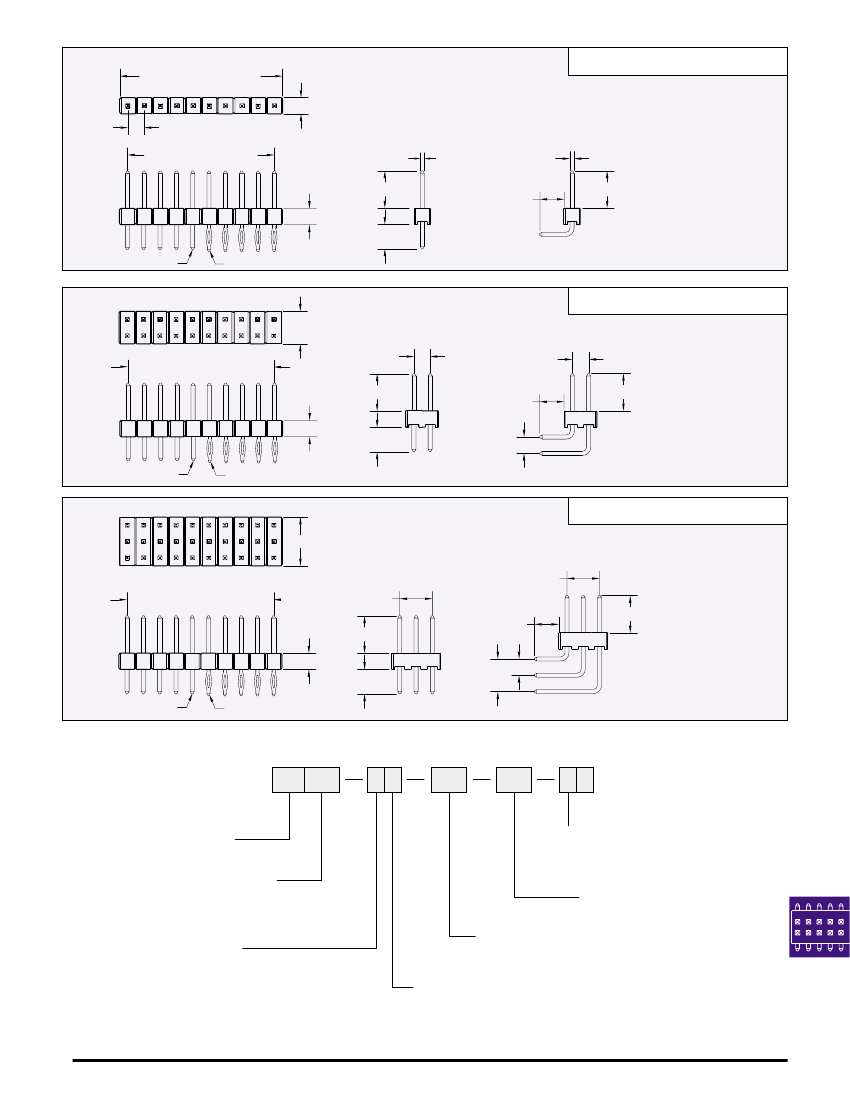

CONTACT/TAIL LENGTH OPTIONS

STRAIGHT SOLDER

P/N CODE

CONTACT

TAIL

.230

[5.84]

.230

[5.84]

.230

[5.84]

.230

[5.84]

.230

[5.84]

.230

[5.84]

.230

[5.84]

.230

[5.84]

.318

[8.08]

.318

[8.08]

.318

[8.08]

.318

[8.08]

.318

[8.08]

.120

[3.05]

.120

[3.05]

.120

[3.05]

.100

[2.54]

.120

[3.05]

.230

[5.84]

.320

[8.13]

.420

[10.67]

.520

[13.21]

.620

[15.75]

.720

[18.29]

.820

[20.83]

.120

[3.05]

.220

[5.59]

.320

[8.13]

.420

[10.67]

.520

[13.21]

.120

[3.05]

.260

[6.60]

.610

[15.49]

.540

[13.72]

RIGHT ANGLE

P/N CODE

CONTACT

TAIL

.230

[5.84]

.230

[5.84]

.230

[5.84]

.230

[5.84]

.230

[5.84]

.230

[5.84]

.230

[5.84]

.318

[8.08]

.318

[8.08]

.318

[8.08]

.318

[8.08]

.100

[2.54]

.200

[5.08]

.300

[7.62]

.400

[10.16]

.500

[12.70]

.600

[15.24]

.700

[17.78]

.100

[2.54]

.200

[5.08]

.300

[7.62]

.400

[10.16]

PRESS-FIT STRAIGHT

P/N CODE

CONTACT

TAIL

.330

[8.38]

.120

[3.05]

.710

[18.03]

.230

[5.84]

.180

[4.57]

.180

[4.57]

.180

[4.57]

.180

[4.57]

DIMENSIONS ARE IN INCHES & [MM]

ELECTRONIC CONNECTOR SERVICE INC.

11880 WESTERN AVE. STANTON, CA 90680 TOLL FREE (877) ECS-CONN TEL (714) 895-6351 FAX (714) 894-1858

WWW.ECSCONN.COM
