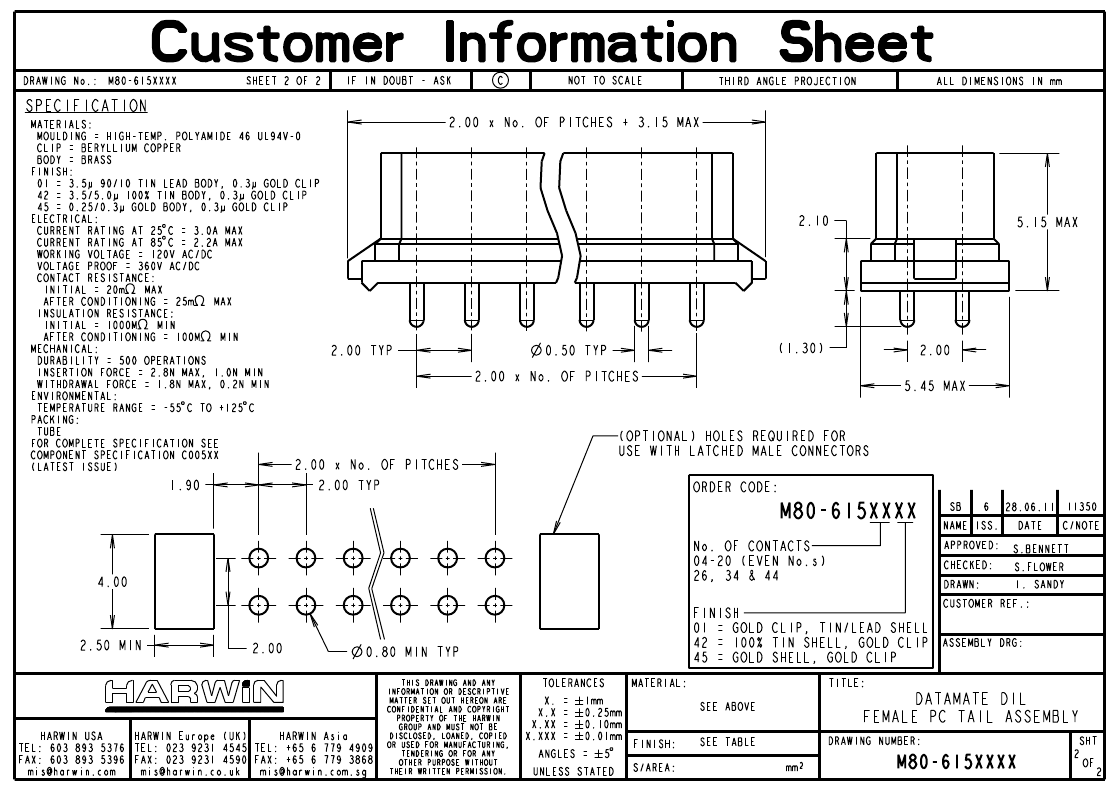

Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking,
| Parameter Name | Attribute value |
| Reach Compliance Code | compli |
| body width | 0.214 inch |
| subject depth | 0.202 inch |
| body length | 1.069 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (12) |
| Contact completed and terminated | TIN LEAD (138) |
| Contact point gender | FEMALE |
| Contact material | BERYLLIUM COPPER |
| contact mode | RECTANGULAR |
| Contact resistance | 25 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Durability | 500 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 2.78 N |
| Insulation resistance | 100000000 Ω |
| insulator material | POLYAMIDE |
| MIL compliance | NO |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 12u inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.051 inch |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 26 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .199882 N |
| Base Number Matches | 1 |
| M80-6152601 | M80-6151801 | M80-6154401 | M80-6154445 | |
|---|---|---|---|---|
| Description | Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, | Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug, |
| Reach Compliance Code | compli | compliant | compliant | compliant |
| body width | 0.214 inch | 0.214 inch | 0.214 inch | 0.214 inch |
| subject depth | 0.202 inch | 0.202 inch | 0.202 inch | 0.202 inch |
| body length | 1.069 inch | 0.754 inch | 1.778 inch | 1.778 inch |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (12) | GOLD (12) | GOLD (12) | GOLD (12) |
| Contact completed and terminated | TIN LEAD (138) | TIN LEAD (138) | TIN LEAD (138) | Gold (Au) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | BERYLLIUM COPPER | BERYLLIUM COPPER | BERYLLIUM COPPER | BERYLLIUM COPPER |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | NO | NO | NO |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| maximum insertion force | 2.78 N | 2.78 N | 2.78 N | 2.78 N |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| insulator material | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE |
| MIL compliance | NO | NO | NO | NO |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Mixed contacts | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Plating thickness | 12u inch | 12u inch | 12u inch | 12u inch |
| Rated current (signal) | 3 A | 3 A | 3 A | 3 A |
| Guideline | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.051 inch | 0.051 inch | 0.051 inch | 0.051 inch |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 26 | 18 | 44 | 44 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .199882 N | .199882 N | .199882 N | .199882 N |
