1642710000

Description
Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,
CategoryThe connector    The connector
File Size77KB，1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1642710000 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

1642710000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
Other featuresHIGH DENSITY
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch3.5 mm
Termination typeSOLDER
Total number of contacts40
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

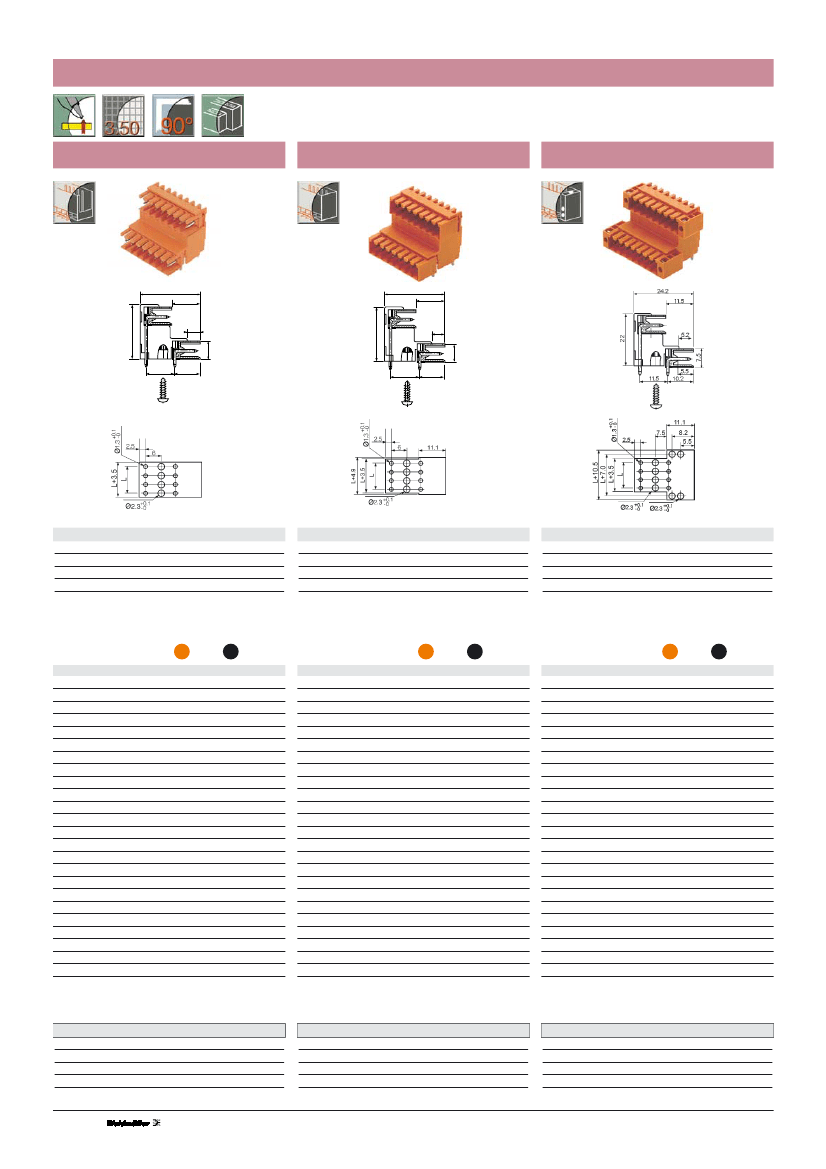

Omnimate Range - Pitch 3.50 mm
Pin headers SLD 3.5V/90
Pin headers SLD 3.5V/90G
Pin headers SLD 3.5V/90F
24.2
11.5
24.2
11.5
22
7.5
22
5.2
5.2
11.5
10.2
Fixing screw
Cat. No.
164096 0000
11.5
10.2
Fixing screw
Cat. No.
164096 0000
Fixing screw
Cat. No.
164096 0000
7.5
Fixing screw
Cat. No.
161074 0000
L = (n/2–1) x 3.5
L = (n/2–1) x 3.5
L = (n/2–1) x 3.5
Technical Data
Rated voltage
Rated current
V
A
VDE
160*
8
UL
300
10
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
160*
8
UL
300
10
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
160*
8
UL
300
10
CSA
300
10
*Overvoltage category III / Pollution severity 3
Additional technical data see page 212
*Overvoltage category III / Pollution severity 3
Additional technical data see page 212
*Overvoltage category III / Pollution severity 3
Additional technical data see page 212
Solder pin length
Colour
Poles
4
8
12
16
20
24
28
32
36
40
44
48
3.2 mm
4.5 mm
Solder pin length
Colour
Poles
4
8
12
16
20
24
28
32
36
40
44
48
3.2 mm
4.5 mm
Solder pin length
Colour
Poles
4
8
12
16
20
24
28
32
36
40
44
48
3.2 mm
4.5 mm
Type
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
V/4/90
V/8/90
V/12/90
V/16/90
V/20/90
V/24/90
V/28/90
V/32/90
V/36/90
V/40/90
V/44/90
Cat. No.
1642090000
1642100000
1642110000
1642120000
1642130000
1642140000
1642150000
1642160000
1642170000
1642180000
1642190000
Cat. No.
Qty.
1642620000
50
1642630000
50
1642640000
50
1642650000
50
1642660000
20
1642670000
20
1642680000
10
1642690000
10
1642700000
10
1642710000
10
1642720000
10
10
Type
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
V/4/90G
V/8/90G
V/12/90G
V/16/90G
V/20/90G
V/24/90G
V/28/90G
V/32/90G
V/36/90G
V/40/90G
V/44/90G
Cat. No.
1642240000
1642250000
1642260000
1642270000
1642280000
1642290000
1642300000
1642310000
1642320000
1642330000
1642340000
Cat. No.
Qty.
1642860000
50
1642870000
50
1642880000
50
1642890000
50
1642900000
20
1642910000
20
1642920000
10
1642930000
10
1642940000
10
1642950000
10
1642960000
10
10
Type
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
SLD 3.5
V/4/90F
V/8/90F
V/12/90F
V/16/90F
V/20/90F
V/24/90F
V/28/90F
V/32/90F
V/36/90F
V/40/90F
V/44/90F
Cat. No.
1642370000
1642380000
1642390000
1642400000
1642410000
1642420000
1642430000
1642440000
1642450000
1642460000
1642470000
Cat. No.
Qty.
1643100000
50
1643110000
50
1643120000
50
1643130000
20
1643140000
20
1643150000
10
1643160000
10
1643170000
10
1643180000
10
1643190000
10
1643200000
10
10
SLD 3.5 V/48/90
1642200000 1642730000
SLD 3.5 V/48/90G
1642350000 1642970000
SLD 3.5 V/48/90F
1642480000 1643210000
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
Page
194
196
199
–
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
Page
194
196
199
–
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
Page
194
196
199
–
