2. Ramp up rate during preheat: 1.4°C/s (from 50°C to 100°C)
3. Soaking temperature: 0.5°C/s (from 100°C to 130°C), 60±20 seconds
4. Peak temperature: 260°C, above 250°C for 3~6 seconds
5. Ramp down rate during cooling: -10°C/s (from 260°C to 150°C)
Temperature (°C)
Time (Seconds)
MECHANICAL
parameter
dimensions
weight
cooling
natural convection
conditions/description
2.440 x 1.770 x 0.909 (61.98 x 44.96 x 23.09 mm)
104
min
typ
max
units
inch
g
MECHANICAL DRAWING
units: inch [mm]
tolerance: X.XXX = ±0.020 [±0.50]
PIN CONNECTIONS
1
2
3
4
ACN
ACL
-Vout
+Vout
0.039 1.00
2
0.689 17.50
4
1
3
0.491 12.48
0.787 20.00
1.770 44.96
0.885 22.48
2.126 54.00
2.440 61.98
cui.com
0.909 23.09
0.236 6.00
PIN
Function
For more information, please visit the
product page.
CUI Inc
│
SERIES:
PSK-15B
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
02/05/2018
│
page
4 of 5

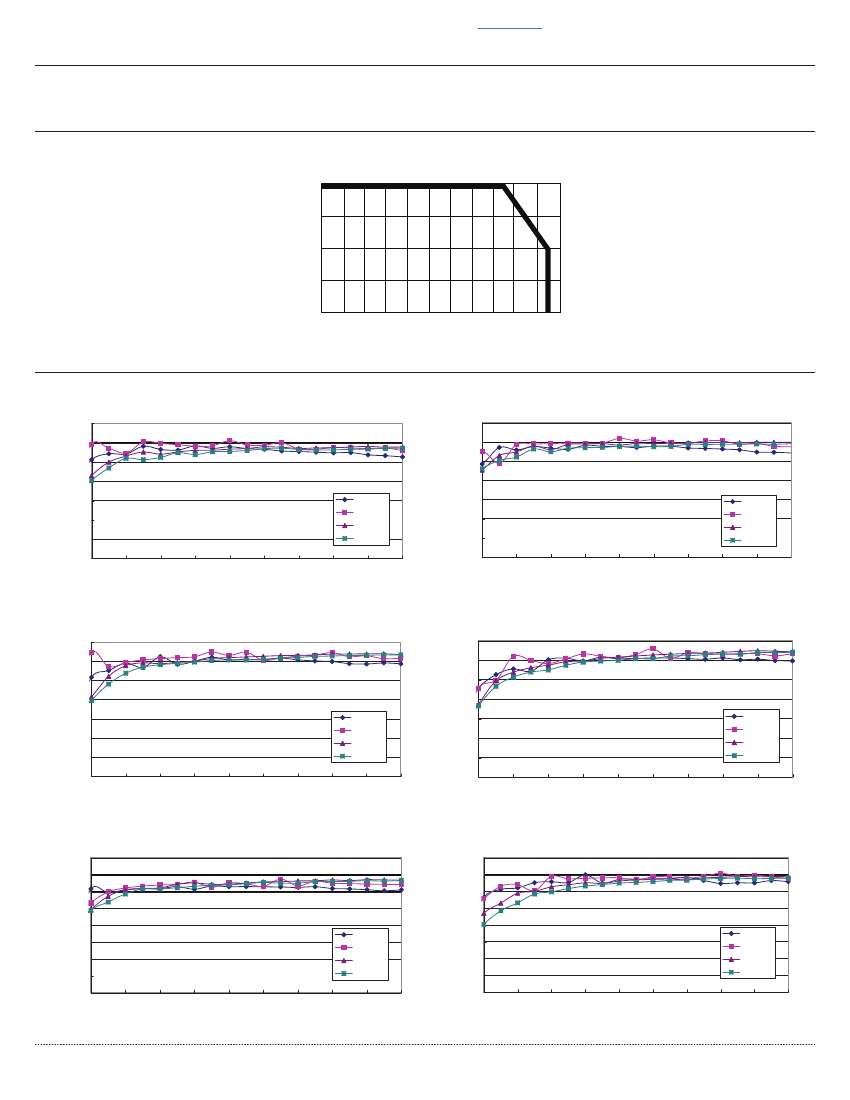

DERATING CURVE
Output Power vs. Ambient Temperature
(Natural Convention)
100
75
50
25
0
-25 -15 -5
Load (%)
Ambient Temperature (°C)
0
5
15 25 35 45 55 65 75
EFFICIENCY CURVES
5 Vdc Output Efficiency Curve
(at 25°C)
90.0
85.0
90.0
85.0
9 Vdc Output Efficiency Curve
(at 25°C)
Efficiency (%)
Efficiency (%)
80.0
75.0
70.0
65.0
60.0
55.0
10
20
30
40
50
60
70
80
85 Vac
115 Vac
230 Vac
264 Vac
80.0
75.0
70.0
65.0
60.0
55.0
85 Vac
115 Vac
230 Vac
264 Vac
Current Load (%)
90
100
10
20
30
40
Current Load (%)
50
60
70
80
90
100
12 Vdc Output Efficiency Curve
(at 25°C)
90.0
85.0
15 Vdc Output Efficiency Curve
(at 25°C)
90.0
85.0
Efficiency (%)
Efficiency (%)
80.0
75.0
70.0
65.0
60.0
55.0
10
20
30
40
50
60
70
80
85 Vac
115 Vac
230 Vac
264 Vac
80.0
75.0
70.0
65.0
60.0
85 Vac
115 Vac
230 Vac
264 Vac
Current Load (%)
90
100
55.0
10
20
30
40
Current Load (%)
50
60
70
80
90
100
24 Vdc Output Efficiency Curve
(at 25°C)
95.0
90.0
95.0
90.0
85.0
80.0
75.0
70.0
65.0
60.0
48 Vdc Output Efficiency Curve
(at 25°C)
Efficiency (%)
80.0
75.0
70.0
65.0
60.0
55.0
10
20
30
40
50
60
70
80
85 Vac
115 Vac
230 Vac
264 Vac
Efficiency (%)
85.0
85 Vac
115 Vac
230 Vac
264 Vac
Current Load (%)
90
100
55.0
10
20
30
40
Current Load (%)
50
60
70
80
90
100
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
PSK-15B
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
02/05/2018
│
page
5 of 5
REVISION HISTORY
rev.
1.0
1.01
description
initial release
increased operating altitude
date
02/23/2017
02/05/2018
The revision history provided is for informational purposes only and is believed to be accurate.
