BU-30212-9 Overview

Test Plugs & Test Jacks 7mm SPADE TERMINAL TO 4mm BANANA-WHT

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mueller Electric
Product Category	Test Plugs & Test Jacks
RoHS	Details
Equipment Type	Spade Terminal
Type	Spade Terminal to Banana
Color	White
Current Rating	20 A
Contact Plating	Nickel
Height	-
Length	86 mm
Width	-
Height - in	-
Height - mm	-
Length - in	3.4 in
Length - mm	86 mm
Maximum Operating Temperature	-
Minimum Operating Temperature	-
Width - in	-
Width - mm	-

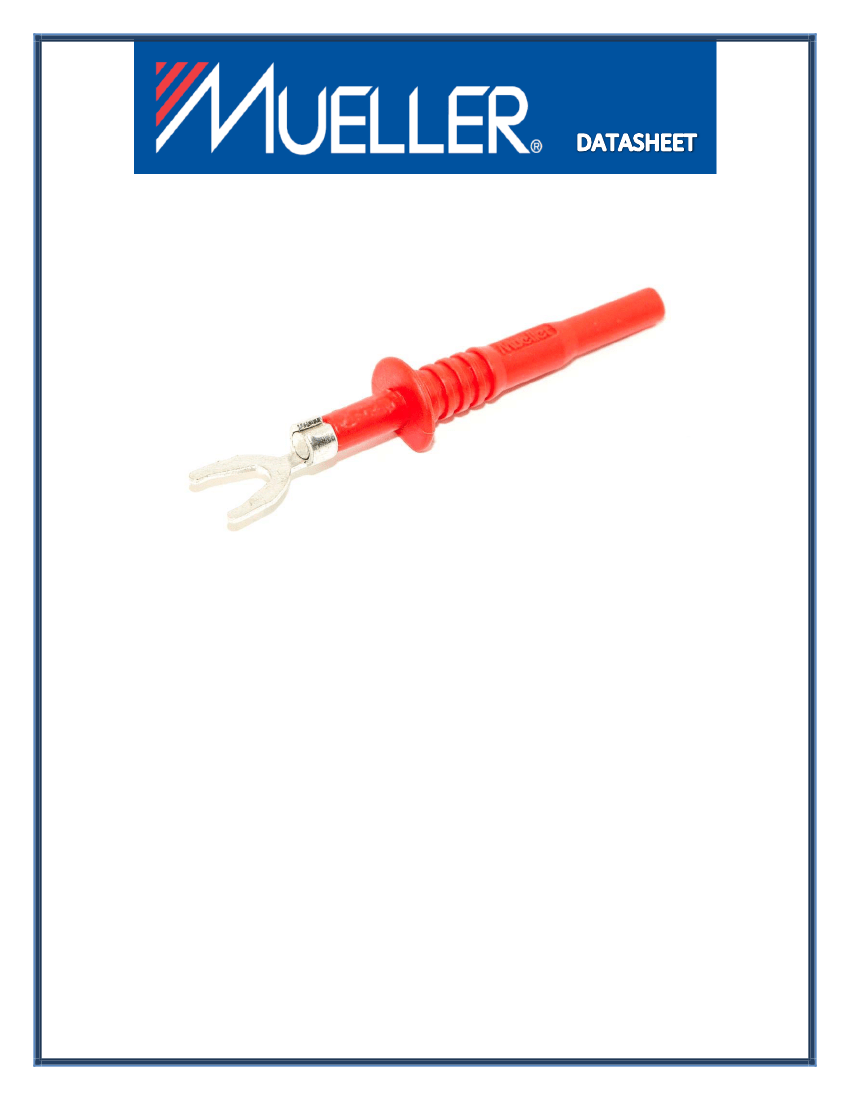

BU‐30212‐*

(7mm Spade Terminal to 4mm Banana)



The BU‐30212 allows a standard, sheathed or retractable (4mm) banana

plug to be used with equipment requiring a 7mm spade connector.



Material: Nickel Plated Brass with PA Insulator



Length = 3.4”(86mm), Spade ID = ..31”(7.9 mm), Spade OD = .49”(12.5mm)

Clearance between insulator and banana jack = .20” (5.1mm)



Ratings: 20 Amps, Hands Free testing to 1000V.



Color: “*” in part number is color. Available colors are:

‐0 Black, ‐2 Red, ‐4 Yellow, ‐5 Green, ‐6 Blue, ‐9 White



RoHS Compliant

Mueller Electric Company

1208 Massillon Rd. Ste. N-1500

Akron, OH 44306-4524

www.muellerelectric.com

Toll Free: 800.955.2629

Phone: 330.780.2525

Fax: 330.780.2524

	BU-30212-9	BU-30212-6	BU-30212-5
Description	Test Plugs & Test Jacks 7mm SPADE TERMINAL TO 4mm BANANA-WHT	Test Plugs & Test Jacks 7mm SPADE TERMINAL TO 4mm BANANA-BLU	Test Plugs & Test Jacks 7mm SPADE TERMINAL TO 4mm BANANA-GRN
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Mueller Electric	Mueller Electric	Mueller Electric
Product Category	Test Plugs & Test Jacks	Test Plugs & Test Jacks	Test Plugs & Test Jacks
RoHS	Details	Details	Details
Equipment Type	Spade Terminal	Spade Terminal	Banana Plugs
Color	White	Blue	Green
Current Rating	20 A	20 A	20 A
Contact Plating	Nickel	Nickel	Nickel
Length	86 mm	86 mm	86 mm
Type	Spade Terminal to Banana	Spade Terminal to Banana	-
Length - in	3.4 in	3.4 in	-
Length - mm	86 mm	86 mm	-
