LIGHT PIPE,
CLEAR PC, 94V-0
0.150in 3.8mm SQ.
+0.003
+0.08
0.101in - 0.002 2.57mm - 0.05 TYP.
LED MOUNTING
AREA
0.290in 7.4mm
RECOMMENDED MOUNTING HOLES
ADAPTER, NYLON 66,
94V-0, BLACK
0.115in 2.9mm
H
H
R0.01in 0.3mm
0.46in 11.7mm
0.5° DRAFT
PCB
SURFACE
0.087in 2.2mm
0.43in 10.9mm
0.12in 3.1mm
FLAT FACE LENS
DIMENSIONS ARE APPLICABLE TO BOTH
LENS FACES UNLESS OTHERWISE NOTED
PART NUMBER CONFIGURATION
(SEE PAGE 2, TABLES A & B)
LPV3-XXXXXP
LENS FACE
HEIGHT, (H)
PCB
(NOT INCLUDED)
0.24in 6.0mm
DOME FACE LENS
STANDARD TOLERANCE
(UNLESS OTHERWISE SPECIFIED)
DECIMALS
ANGULAR
®
4X R0.02in 0.5mm
2X 0.188in 4.8mm
.X
.XX
.XXX
DESIGNED:
± .1
± .01
± .005
X°
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
DATE:

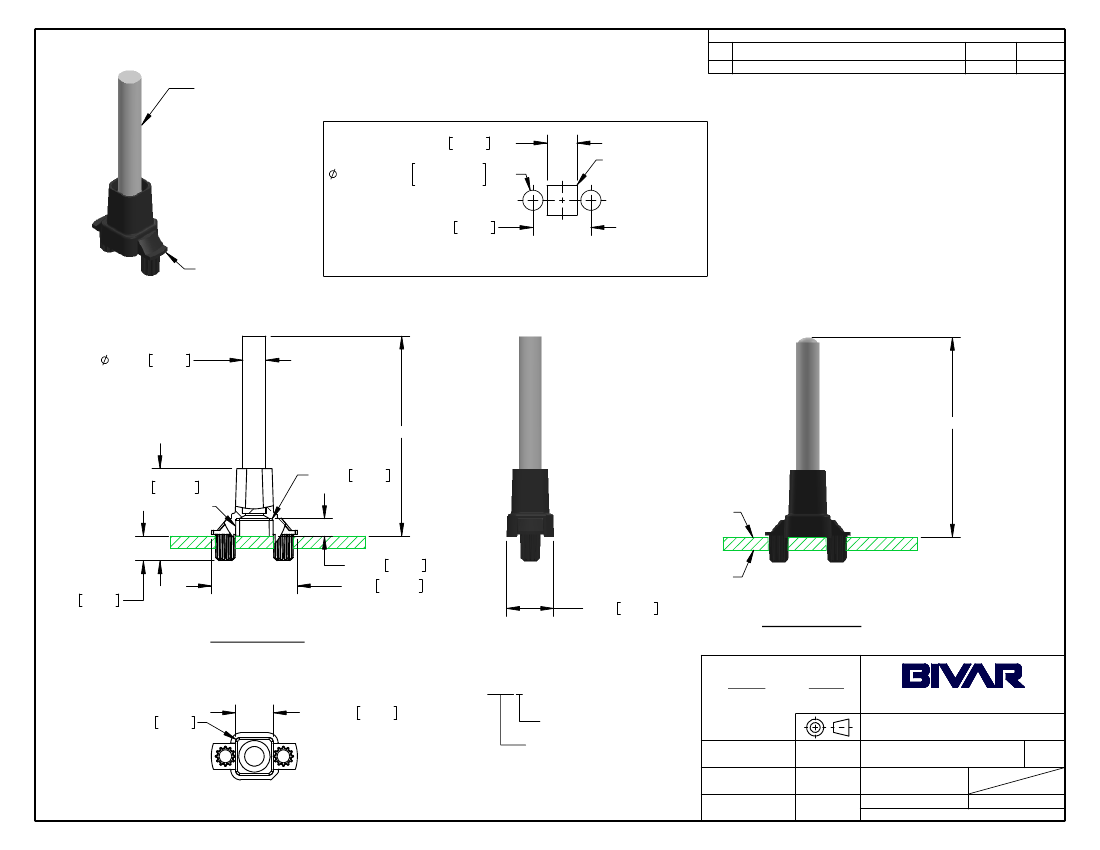

BIVAR LIGHT PIPE SYSTEM,
VERTICAL, 3MM, SINGLE STATION
REVISION:
K. BARON
REVISED:
N/A
CHECKED:
PART NO:
LPV3-XXXXXP
03/16/18
DATE:
CAGE CODE:
N/A
32559
DATE:
A
SCALE:
TD. NGUYEN
03/16/18
2:1
SHEET #
1
OF
2
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
See Sheet 1
STANDARD ORDERING INFORMATION
TABLE A ‐ FLAT FACE LENS
PART NO.
LPV3-0350FP
LPV3-0400FP
LPV3-0450FP
LPV3-0500FP
LPV3-0550FP
LPV3-0600FP
LPV3-0750FP
LPV3-1000FP
LPV3-1250FP
LPV3-1500FP
LPV3-1750FP
LPV3-2000FP
TABLE B ‐ DOME FACE LENS
PART NO.
LPV3-0350DP
LPV3-0400DP
LPV3-0450DP
LPV3-0500DP
LPV3-0550DP
LPV3-0600DP
LPV3-0750DP
LPV3-1000DP
LPV3-1250DP
LPV3-1500DP
LPV3-1750DP
LPV3-2000DP
H
±.01
0.350 [8.9mm]
0.400 [10.2mm]
0.450 [11.4mm]
0.500 [12.7mm]
0.550 [14.0mm]
0.600 [15.2mm]
0.750 [19.1mm]
1.000 [25.4mm]
1.250 [31.8mm]
1.500 [38.1mm]
1.750 [44.5mm]
2.000 [50.8mm]
H
±.01
0.350 [8.9mm]
0.400 [10.2mm]
0.450 [11.4mm]
0.500 [12.7mm]
0.550 [14.0mm]
0.600 [15.2mm]
0.750 [19.1mm]
1.000 [25.4mm]
1.250 [31.8mm]
1.500 [38.1mm]
1.750 [44.5mm]
2.000 [50.8mm]
®
PART NO:
REVISION:
LPV3-XXXXXP
SCALE:
A
N/A
SHEET #
2
OF
2
