Technical Data Sheet
N 50
Adaptor
Jack - Jack - Jack
53K301-K00N5
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

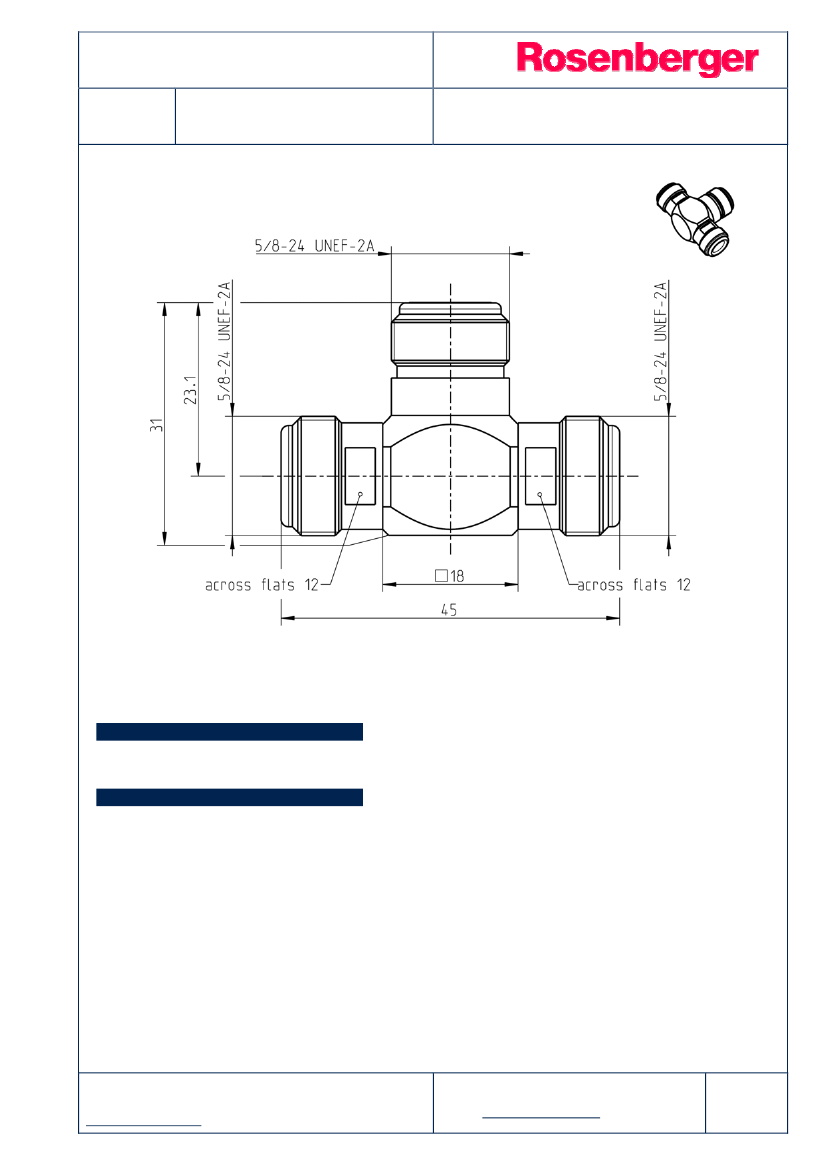

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 61169-16, MIL-PRF-39012, CECC 22210
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Material
CuBe
Brass
Brass
PTFE
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
N 50
Adaptor
Jack - Jack - Jack
53K301-K00N5
Electrical data
Impedance
Frequency
Return loss
Insulation resistance
Center contact resistance
Outer contact resistance
Working voltage
(at sea level)
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
50
DC to 11 GHz
N/A
5 G
1 m
0.25 m
500 V rms
1000 W @ 1 GHz
700 W @ 2 GHz
128 dB @ DC to 1 GHz
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
500
28 N
1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion resistance
Vibration
Shock
Moisture resistance
RoHS
-55 °C to +155 °C
MIL-STD-202, Method 107, Condition B
MIL-STD-202, Method 101, Condition B
MIL-STD-202, Method 204, Condition B
MIL-STD-202, Method 213, Condition I
MIL-STD-202, Method 106
compliant
Weight
Weight
72.2 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Inge Mühlauer
Date
22/06/04
Approved
J_Gramsamer
Date
15.04.15
Rev.
f00
Engineering change number
15-0397
Name
J_Krautenb.
Date
15.04.15
