1643980000

Description
Board Connector, 19 Contact(s), 1 Row(s), Male, 135 Degree, Solder Terminal,
CategoryThe connector    The connector
File Size61KB,1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1643980000 Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, 135 Degree, Solder Terminal,

1643980000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
Other featuresHIGH DENSITY
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation method135 DEGREE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch3.5 mm
Termination typeSOLDER
Total number of contacts19
UL Flammability Code94V-0
Base Number Matches1

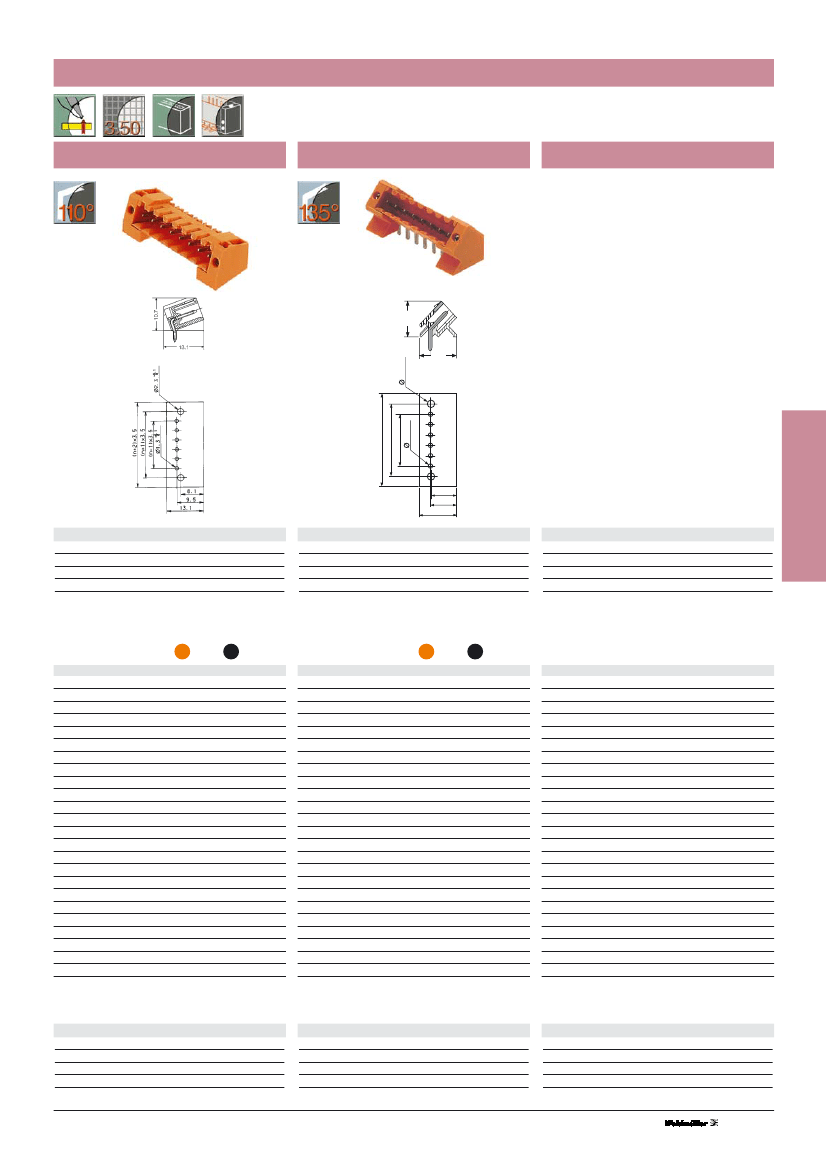

Omnimate Range - Pitch 3.50 mm
Pin headers SL 3.5/110
Pin headers SL 3.5/135
13.0
(n+2) x 3.5
(n+1) x 3.5
(n-1) x 3.5
+0.1
2.3
-0
+0.1
13.2
Fixing screw
Cat. No.
161074 0000
Fixing screw
Cat. No.
161074 0000
6.6
8.0
12.1
Technical Data
Rated voltage
Rated current
V
A
VDE
160*
12
UL
300
10
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
160*
12
UL
300
10
CSA
300
10
*Overvoltage category III / Pollution severity 3
Additional technical data see page 211
*Overvoltage category III / Pollution severity 3
Additional technical data see page 211
Solder pin length
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
3.2 mm
4.5 mm
Solder pin length
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
3.2 mm
4.5 mm
Type
SL 3.5/2/110
SL 3.5/3/110
SL 3.5/4/110
SL 3.5/5/110
SL 3.5/6/110
SL 3.5/7/110
SL 3.5/8/110
SL 3.5/9/110
SL 3.5/10/110
SL 3.5/11/110
SL 3.5/12/110
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
3.5/13/110
3.5/14/110
3.5/15/110
3.5/16/110
3.5/17/110
3.5/18/110
3.5/19/110
3.5/20/110
3.5/21/110
3.5/22/110
3.5/23/110
3.5/24/110
Cat. No.
1644040000
1644050000
1644060000
1644070000
1644080000
1644090000
1644100000
1644110000
1644120000
1644130000
1644140000
1644150000
1644160000
1644170000
1644180000
1644190000
1644200000
1644210000
1644220000
1644230000
1644240000
1644250000
1644260000
Cat. No.
1644500000
1644510000
1644520000
1644530000
1644540000
1644550000
1644560000
1644570000
1644580000
1644590000
1644600000
1644610000
1644620000
1644630000
1644640000
1644650000
1644660000
1644670000
1644680000
1644690000
1644700000
1644710000
1644720000
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Type
SL 3.5/2/135
SL 3.5/3/135
SL 3.5/4/135
SL 3.5/5/135
SL 3.5/6/135
SL 3.5/7/135
SL 3.5/8/135
SL 3.5/9/135
SL 3.5/10/135
SL 3.5/11/135
SL 3.5/12/135
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
3.5/13/135
3.5/14/135
3.5/15/135
3.5/16/135
3.5/17/135
3.5/18/135
3.5/19/135
3.5/20/135
3.5/21/135
3.5/22/135
3.5/23/135
3.5/24/135
Cat. No.
1643330000
1643340000
1643350000
1643360000
1643370000
1643380000
1643390000
1643400000
1643410000
1643420000
1643430000
1643440000
1643450000
1643460000
1643470000
1643480000
1643490000
1643500000
1643510000
1643520000
1643530000
1643540000
1643550000
Cat. No.
1643810000
1643820000
1643830000
1643840000
1643850000
1643860000
1643870000
1643880000
1643890000
1643900000
1643910000
1643920000
1643930000
1643940000
1643950000
1643960000
1643970000
1643980000
1643990000
1644000000
1644010000
1644020000
1644030000
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
194, 195
196
199
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
194, 195
196
199
85
Omnimate Range
Pitch 3.50 mm
1.3
-0
