CD75NP-680KB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CD75NP-680KB

CD75NP-680KB: DescriptionGeneral Purpose Inductor, 68uH, 10%, 1 Element, SMD, 3128, ROHS COMPLIANT; CategoryPassive components inductor; File Size197KB，5 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CD75NP-680KB Overview

General Purpose Inductor, 68uH, 10%, 1 Element, SMD, 3128, ROHS COMPLIANT

CD75NP-680KB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1893713523
package instruction	3128
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	2
uppercase and lowercase codes	3128
structure	Unshielded
DC Resistance	0.28 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	5 mm
Package length	7.8 mm
Package form	SMT
Package width	7 mm
method of packing	Box
Maximum rated current	0.85 A
self resonant frequency	11 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	2.52 MHz
Tolerance	10%

Preview

Download Datasheet

View All

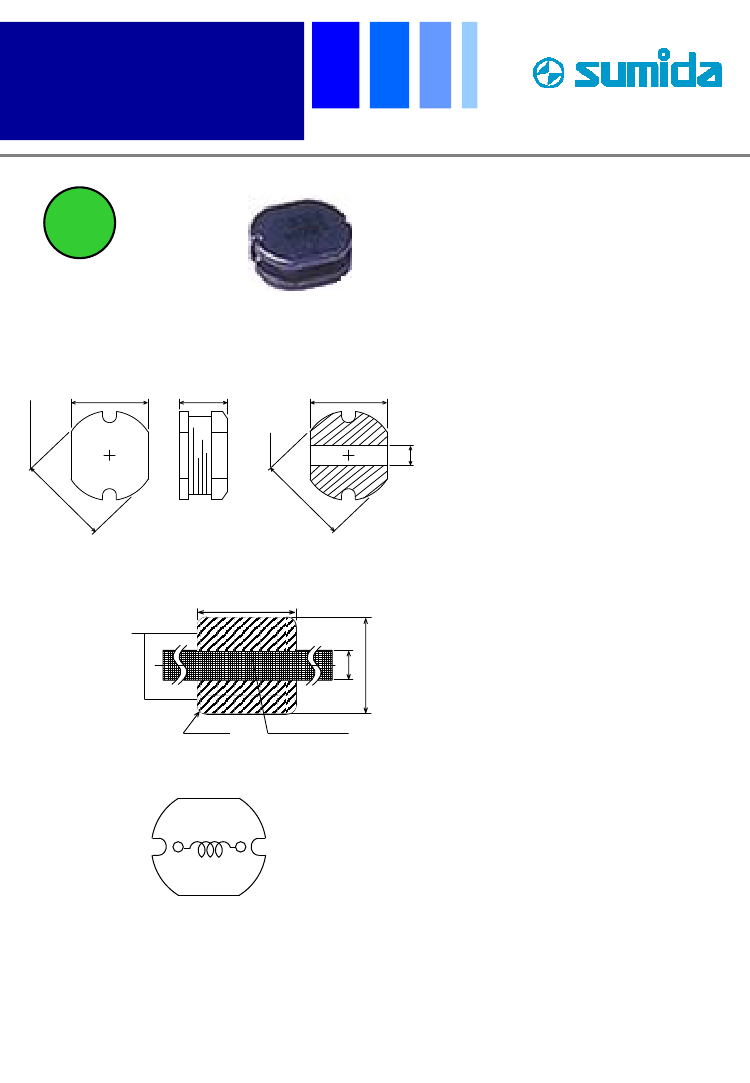

SMD Power Inductor

CD75

Description

• Ferrite drum core construction.

• Magnetically unshielded.

• L×W×H: 8.1×7.3×5.5mm Max.

• Product weight: 0.76g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

RoHS

Dimension - [mm]

70 03

. ±.

50 05

. ±.

φ7.8±0.3

Environmental Data

• Operating temperature range: -40℃½+100℃

(including coil’s self temperature rise)

• Storage temperature range: -40℃½+100℃

• Solder reflow temperature: 260

℃

peak.

Packaging

• Carrier tape and reel packaging.

• 12.9”diameter reel

• 500pcs per reel

Applications

• Ideally used in PDA,MP3,DSC/DVC,HDD,

Portable DVD, etc as DC-DC Converter

inductors.

2.1

Land pattern and Schematics - [mm]

PR O EETOE

AT F LCRD

φ7.8

R10

PR O SL

AT F IK

2.0

8.0

Page 1 of 5

Revised: 6-Jan-17
