063556 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 063556

063556: DescriptionD Subminiature Connector, 37 Contact(s), Female, Solder Terminal, M3, Plug,; CategoryThe connector The connector; File Size155KB，14 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

063556 Overview

D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, M3, Plug,

063556 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3
body width	0.492 inch
subject depth	0.217 inch
body length	2.728 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD
Contact point gender	FEMALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Mixed contacts	NO
Installation option 1	M3
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
reliability	COMMERCIAL
Shell material	METAL
Housing size	4/C
Terminal length	0.236 inch
Termination type	SOLDER
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

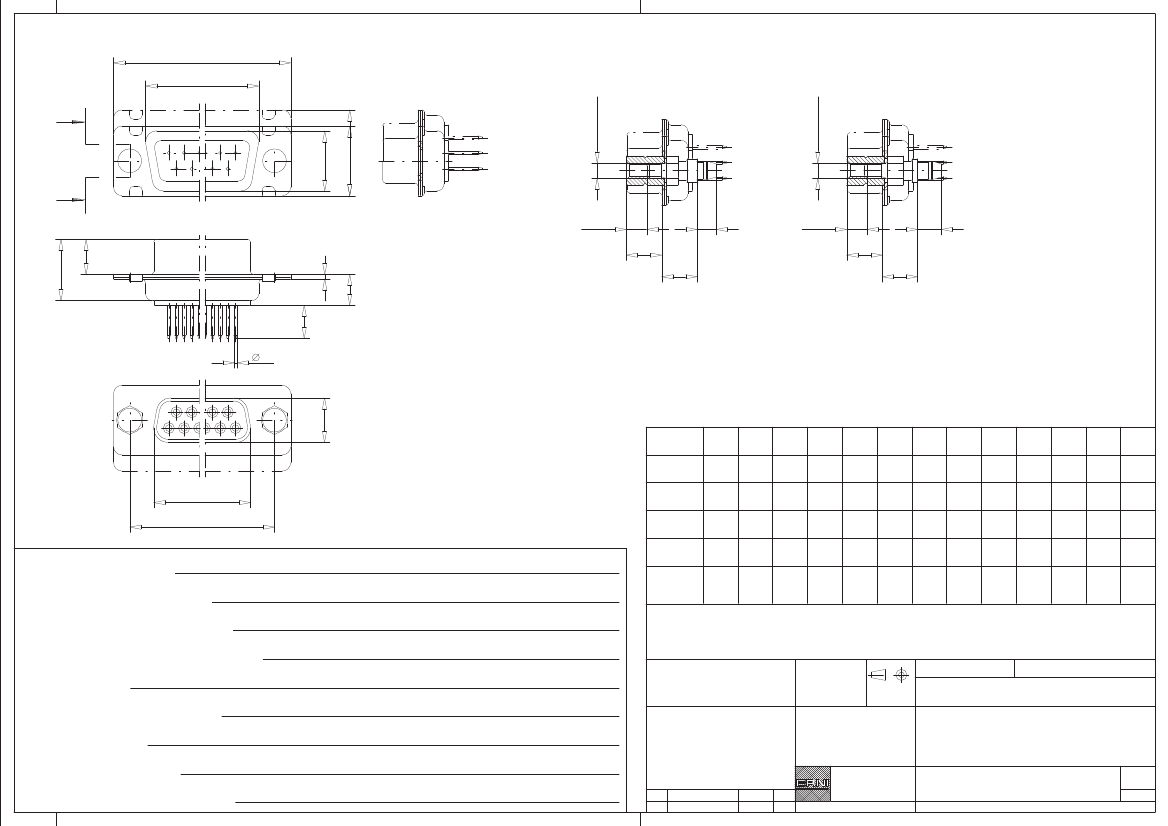

Schnitt A-A /

M3 oder /

or #-40

LP 1.5 /

PCB 1.5

cross section A-A

LP 2.4 /

PCB 2.4

min. 3

( min. 2.5 )

3,5

6,4

(5.9)

min. 3

( min. 2.5 )

6,4

(5.9)

6,3

4,3

0,6

a : Anschlusslänge beliebig von 3 bis 6 mm; Toleranz

±0.3

5,5

Zubehör /

Accessories :

threaded bolt

threaded sleeve

a : terminal length from 3 to 6 mm; tolerance

±0.3

Gewindebolzen /

Gewindehülse /

30.8

39.1

53.0

69.3

67.0

16.4

24.7

38.5

54.9

52.5

25.0

33.3

47.0

63.5

61.1

8.0

10.8

or #-40

12.5

15.4

M3 oder /

l = 5.6 / 6.3 / 8.0

11.0

6.3

19.3

27.5

41.3

57.7

55.3

10.8

13.6

0.8

Refer to table on page 2

Straight soldering

6.0 mm

Schichtaufbau im metallisierten Loch

für Gewindebolzen siehe Zeichnung 114303

metal plating of plated-through hole

for threaded bolt see drawing 114303

Polzahl/

No. of

contacts

Ident-Nr. /

Polzahl /

Part No. :

±0.3

-0.2

±0.2

-0.2

±0.3

±0.2

-0.3

±0.3

±0.2

±0.1

No. of contacts :

Terminal Type :

Anschlußart /

Anschlußlänge /

Bauart /

Type :

Fehlende Masse und Angaben siehe DIN 41652 /

Sonstige Angaben siehe Fertigungsunterlagen /

Information:

Tolerances

Missing information and dimensions according to DIN 41652

Additional indications please see the production documentation

Scale

All Dimensions

in mm

Terminal Length :

2:1

Consider protection memo from DIN 34

Anforderungsstufe /

Aufdruck /

Zubehör /

Logo :

Class :

ERNI

207=0.8µm (30

µin)

Au CONTACT, TIN/LEAD TERMINAL

Accessory :

Refer to table on page 2

Special :

Refer to table on page 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

TMC-S 9 bis 50-TL-3.0 bis 6.0

TMC-S 9 to 50-TL-3.0 to 6.0

Elektroapparate GmbH

D-73099 ADELBERG

M:00020985.SZN

Sonderausführung /

Index

23.04.2001

Date

054919

TMCS

063556 Related Products

	063556	SF12H8250DQL	024735	024736	024737	024738	043091	043799	053051	053052
Description	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, M3, Plug,	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 825ohm, 200V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, #4-40, Plug,	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, #4-40, Plug,	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, #4-40, Plug,	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, #4-40, Plug,	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, M3, Plug,	D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, #4-40, Plug,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, M3, Plug,	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, M3, Plug,
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3	ANTI-SULFUR, LASER TRIMMABLE, RATED AC VOLTAGE (V): 200	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3
body width	0.492 inch	-	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.606 inch	0.492 inch	0.492 inch
subject depth	0.217 inch	-	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch
body length	2.728 inch	-	1.213 inch	1.539 inch	2.087 inch	2.728 inch	2.087 inch	2.638 inch	1.213 inch	1.539 inch
Body/casing type	PLUG	-	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU	-	AU	AU	AU	AU	AU	NOT SPECIFIED	AU	AU
Contact completed and terminated	TIN/LEAD	-	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	-	TIN/LEAD	TIN/LEAD
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	-	YES	YES	YES	YES	YES	YES	YES	YES
empty shell	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	-	YES	YES	YES	YES	YES	YES	YES	YES
MIL compliance	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	M3	-	#4-40	#4-40	#4-40	#4-40	M3	#4-40	M3	M3
Installation option 2	JACKSCREW	-	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	-	2	2	2	2	2	2	2	2
Number of rows loaded	2	-	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	30u inch	-	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	METAL	-	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Housing size	4/C	-	1/E	2/A	3/B	4/C	3/B	5/D	1/E	2/A
Terminal length	0.236 inch	-	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	37	-	9	15	25	37	25	50	9	15
Maker	-	-	ERNI	ERNI	ERNI	ERNI	ERNI	ERNI	ERNI	ERNI
