108458096001050 datasheet, PDF

Datasheet> All Categories > 108458096001050

108458096001050: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Plug,; File Size99KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

108458096001050 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Plug,

108458096001050 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1508801785
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8
Other features	STANDARD: DIN 41612
body width	0.535 inch
body length	3.697 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL, CSA
Terminal length	0.209 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	64
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

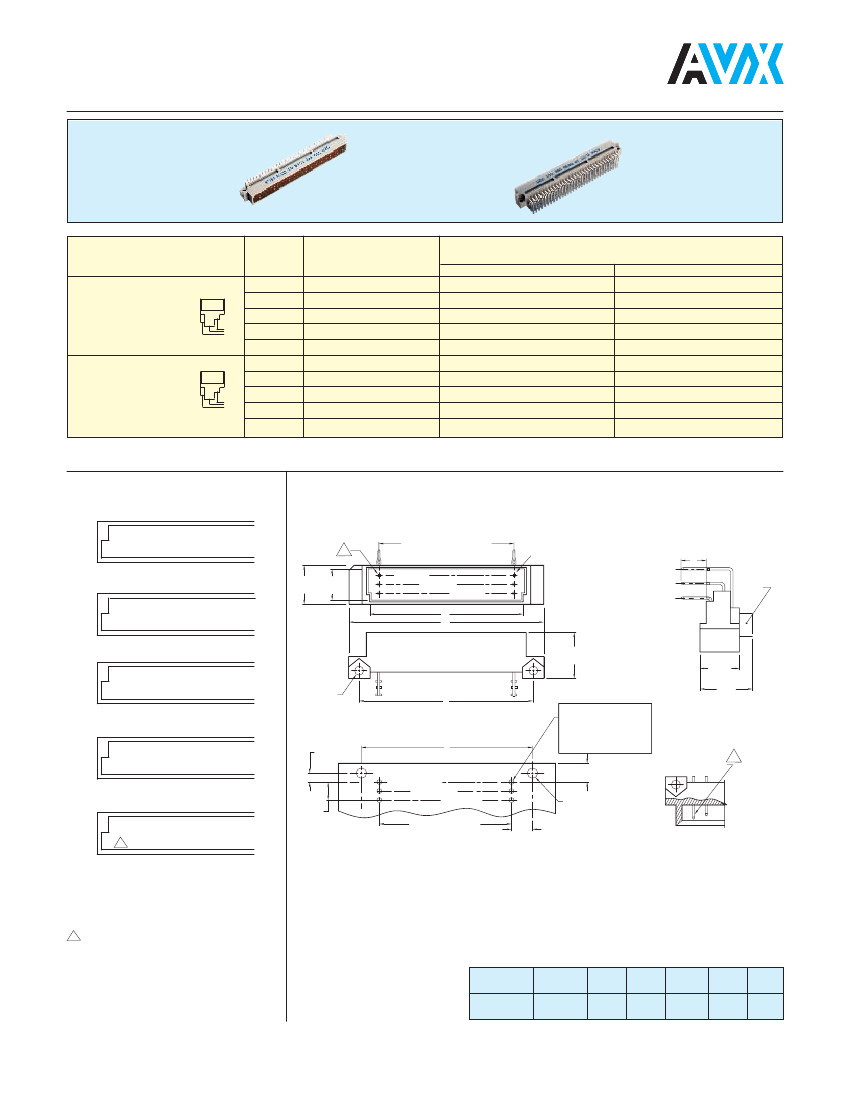

Male Style C Press-Fit

Series 8458 – 3 rows (3 x 32)

Contact Design

and

Termination Length

for

≥

2.4 mm PCB's

Number of

Contacts

Loading Description

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

fully loaded + ground

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

fully loaded + ground

Part Number

Performance classes according to DIN 41612

10 8458 096 001 025

10 8458 096 001 049

10 8458 096 001 026

10 8458 096 001 033

10 8458 096 001 027

10 8458 096 101 025

10 8458 096 031 025

10 8458 096 031 026

10 8458 096 031 033

10 8458 096 031 027

10 8458 096 131 025

10 8458 096 001 050

10 8458 096 001 057

10 8458 096 001 051

10 8458 096 101 049

10 8458 096 031 049

10 8458 096 031 050

10 8458 096 031 057

10 8458 096 031 051

10 8458 096 131 049

0.6 x 0.6 mm Post Profile

5.3 mm (Y) Right Angled

for 1.6 mm PCB's

94 + 2

0.6 x 0.6 mm Post Profile

3.0 mm (Y) Right Angled

94 + 2

NB: Alternative Prefix Variations Available: 12, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION DIMENSIONS

●

11.0

[0.433]

8.74

[0.344]

A EQ SP @ 2.54 [0.100] = B

For Y dimension see

contact design

96 contacts, rows a + b + c fully loaded

●

ROW A

ROW B

ROW C

KEYING

64 contacts, rows a + c fully loaded

12.7

[0.500]

●

11.0

[0.433]

13.6

[0.535]

DRILLED

HOLE

Ø .0453

Ø 1.15

+.0000

-.0010

+0.00

-0.025

+.0035

-.0024

+0.09

-0.06

2.54 DIA

[0.100]

32 contacts, rows a + c even loading

●

SEE

SPEC.

PLATED

Ø .039

Ø 1.00

THRU HOLE

2.54

[0.100]

5.31

[0.209]

ROW A

ROW B

ROW C

5.08

[0.200]

2.84

[0.112] DIA

GROUND

CONTACT

32 contacts, row a loading only

●

A EQ SP @ 2.54 [0.100] = B

HOLE PATTERN

5.08

[0.200]

94 + 2 contacts, fully loaded

with ground in A1 + A32

Assembly Tool: 06 8458 9271 00 000 (see page 67)

denotes ground pin

Unit: millimeters (inches)

No. Contact

Positions

Contact

Rows

3 (3 x 32)

78.74

(3.100)

85.29

(3.358)

88.90

(3.500)

93.90

(3.697)
