87583-2010BALF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 87583-2010BALF

87583-2010BALF: DescriptionUSB Connectors 87583-2010BALF; CategoryThe connector; File Size200KB，3 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

87583-2010BALF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87583-2010BALF	-	-	View	Buy Now

87583-2010BALF Overview

USB Connectors 87583-2010BALF

87583-2010BALF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	USB Connectors
RoHS	Details
IP Rating	-
Packaging	Tube
Factory Pack Quantity	42

Preview

Download Datasheet

View All

13.10

14.50

14.0

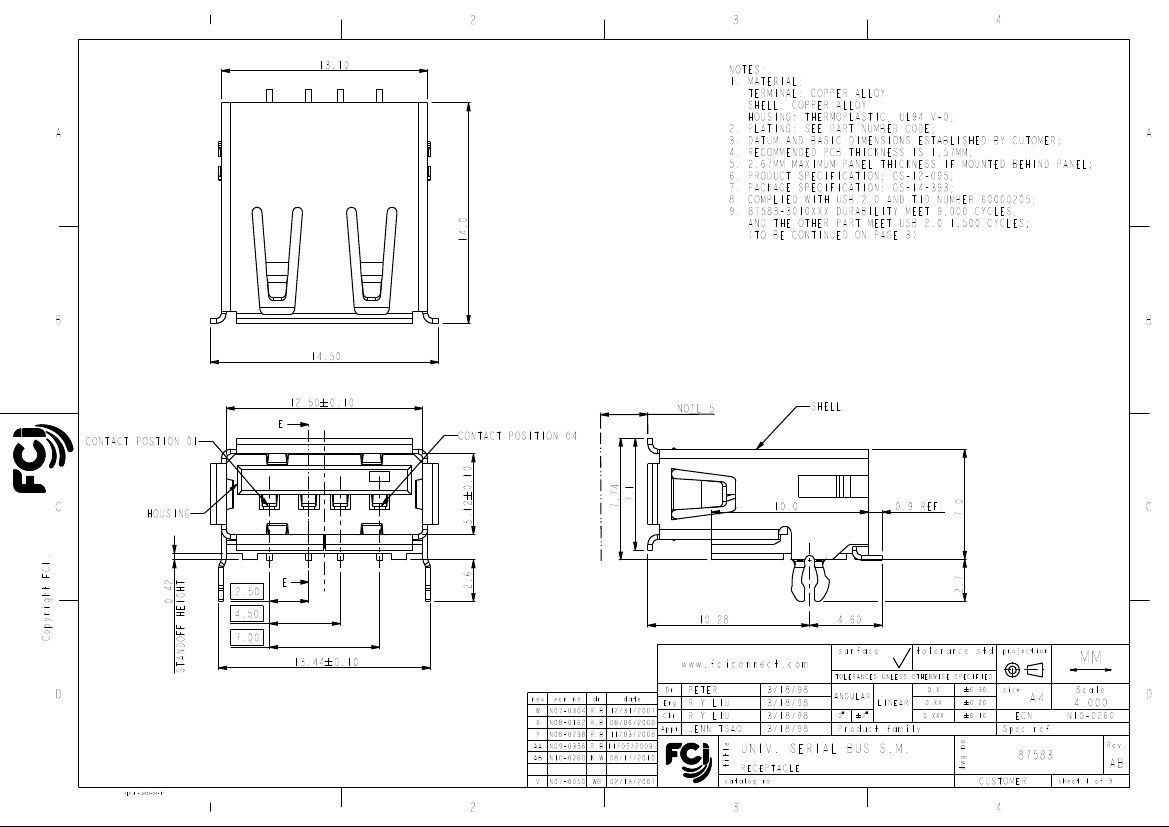

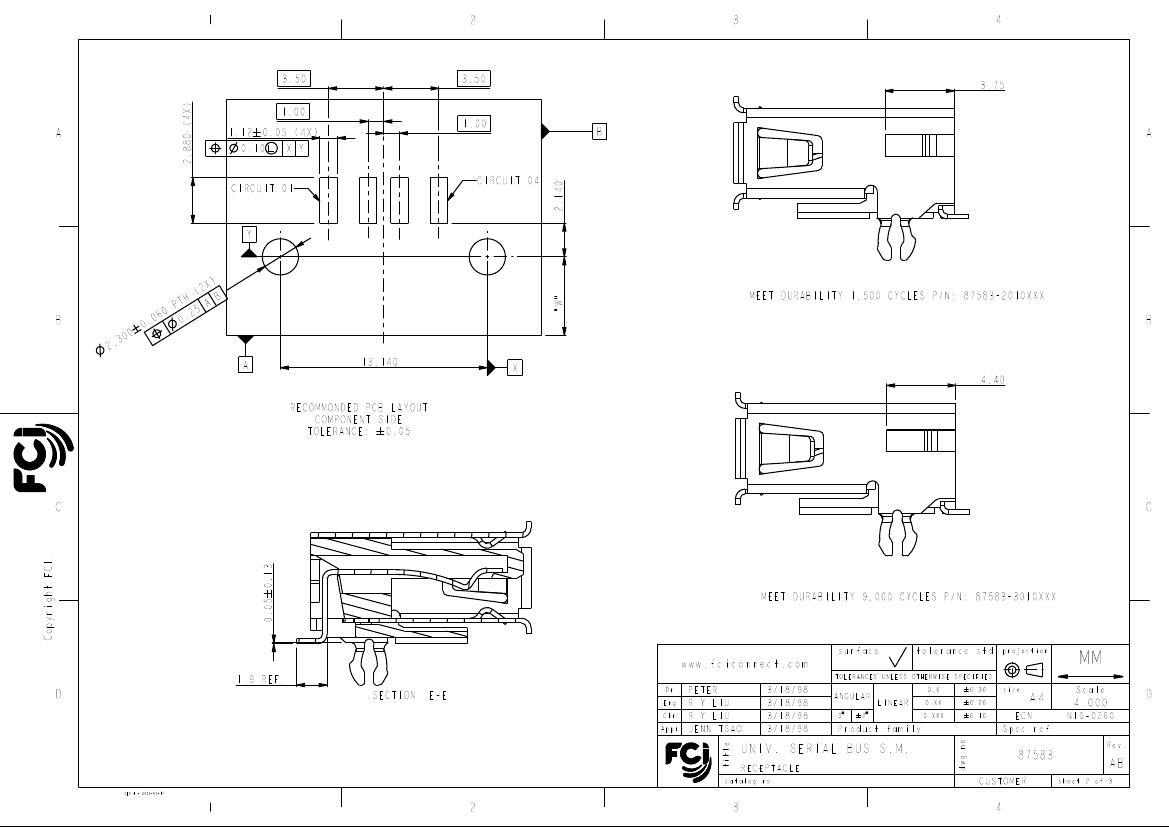

NOTES:

1. MATERIAL:

TERMINAL: COPPER ALLOY

SHELL: COPPER ALLOY

HOUSING: THERMOPLASTIC, UL94 V-0;

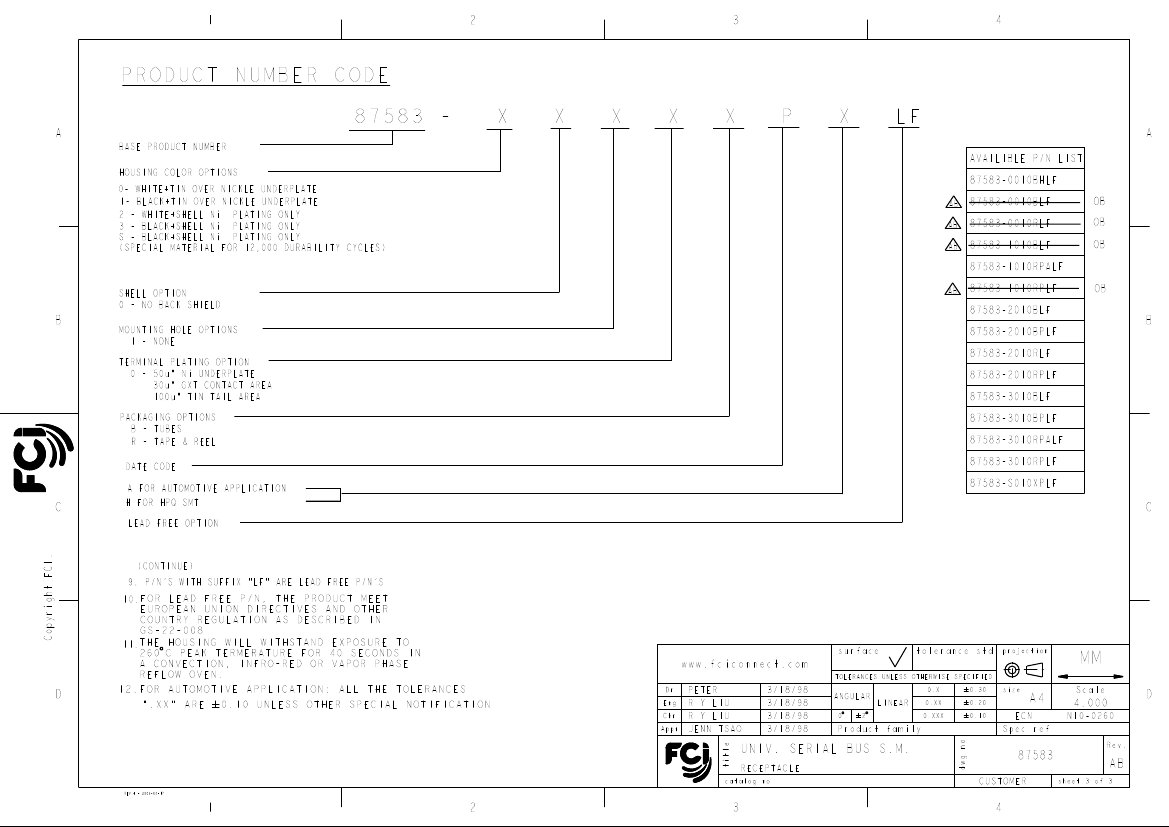

2. PLATING: SEE PART NUMBER CODE;

3. DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUTOMER;

4. RECOMMENDED PCB THICKNESS IS 1.57MM;

5. 2.67MM MAXIMUM PANEL THICKNESS IF MOUNTED BEHIND PANEL;

6. PRODUCT SPECIFICATION: GS-12-095;

7. PACKAGE SPECIFICATION: GS-14-393;

8. COMPLIED WITH USB 2.0 AND TID NUMBER 60000205;

9. 87583-3010XXX DURABILITY MEET 9,000 CYCLES,

AND THE OTHER PART MEET USB 2.0 1,500 CYCLES;

(TO BE CONTINUED ON PAGE 3)

12.50 0.10

CONTACT POSTION 01

CONTACT POSITION 04

5.12 0.10

NOTE 5

SHELL

7.74

7.1

7.0

HOUSING

10.0

0.9 REF.

2.6

0.42

STANDOFF HEIGHT

2.50

4.50

7.00

10.28

4.60

surface

tolerance std

projection

2.7

13.44 0.10

rev

ecn no

N07-0304

N08-0162

N08-0238

N09-0356

N10-0260

N07-0050

R.B

K.W

date

12/31/2007

08/06/2008

11/03/2008

08/17/2010

02/13/2007

Eng

Chr

Appr

www.fciconnect.com

TOLERANCES UNLESS OTHERWISE SPECIFIED

Scale

PETER

R Y LIU

JENN TSAO

title

3/18/98

ANGULAR

0.X

0.30

0.20

0.10

size

LINEAR

0.XX

0.XXX

4.000

N10-0260

Rev.

Product family

dwg no

ECN

Spec ref

R.B 11/05/2009

UNIV. SERIAL BUS S.M.

RECEPTACLE

87583

CUSTOMER

sheet

1 of 3

catalog no

REV F - 2006-04-17

PDS: Rev

Printed:

2012

eDOC

PDM: Rev:AB

:AB

STATUS:

STATUS:Released

Printed: Feb 14,

Nov 28, 2012

Released
