D09P24A4GL00LF: DescriptionD-Sub Standard Connectors 9P STRT PIN SOLDER SHELL SIZE E; CategoryThe connector; File Size51KB，1 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

D09P24A4GL00LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D09P24A4GL00LF	-	-	View	Buy Now

D09P24A4GL00LF Overview

D-Sub Standard Connectors 9P STRT PIN SOLDER SHELL SIZE E

D09P24A4GL00LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	D-Sub Standard Connectors
RoHS	Details
Number of Positions	9 Position
Contact Gender	Pin (Male)
Termination Style	Through Hole
Mounting Angle	Straight
Number of Rows	2 Row
Shell Size	1 (E)
Contact Plating	Gold
Packaging	Tray
Current Rating	5 A
Gender	Male
Type	Plug
Voltage Rating	300 V
Pitch	2.84 mm
Shell Plating	Bright Pure Tin over Nickel
Insert Arrangement	E09
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	30

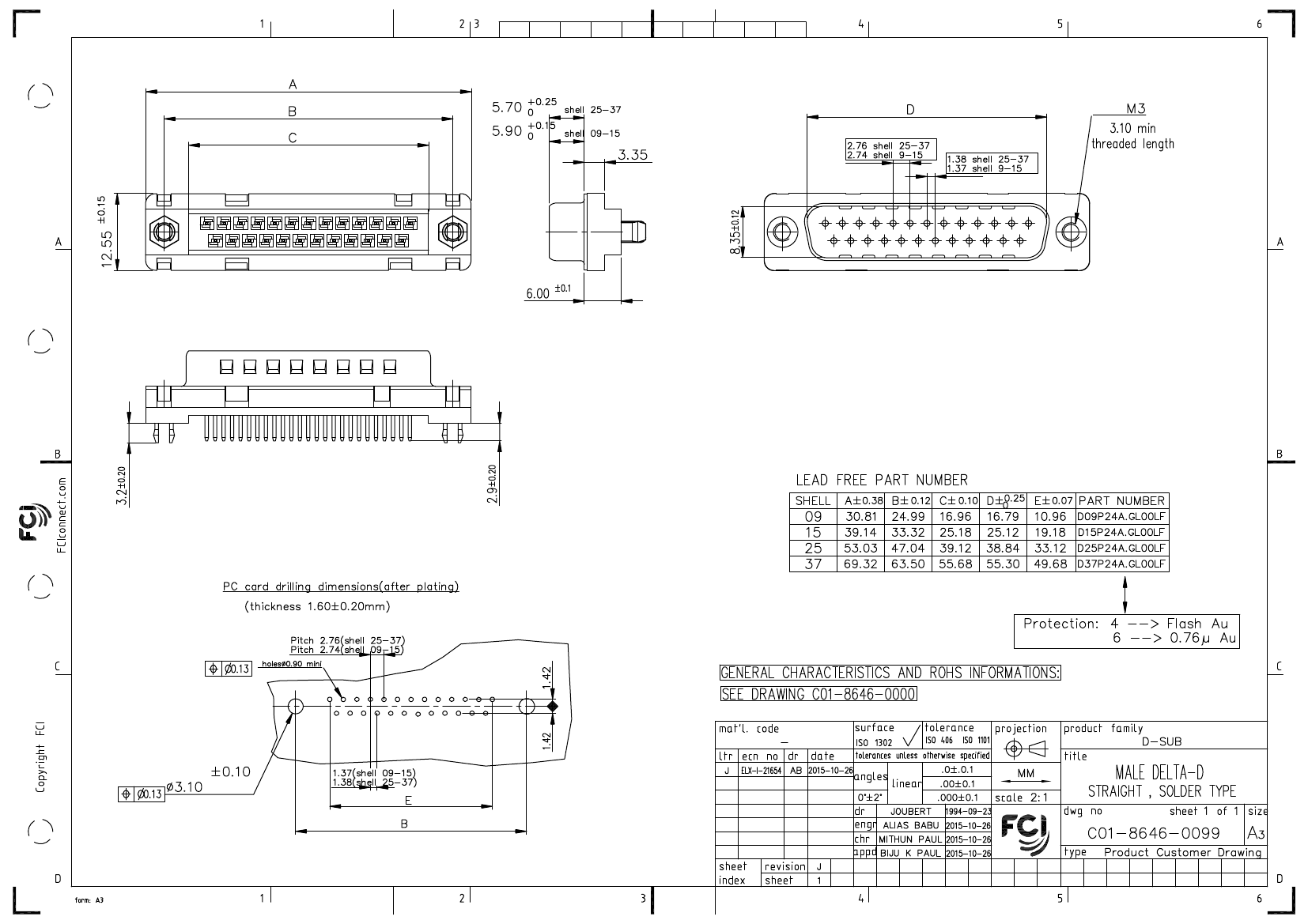

Preview

Download Datasheet

View All

PDS: Rev :J

STATUS:Released

Printed: Oct 26, 2015
