CD1206-S0175R

Description
Switching Chip Diode Series
File Size287KB,6 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Download Datasheet Compare View All

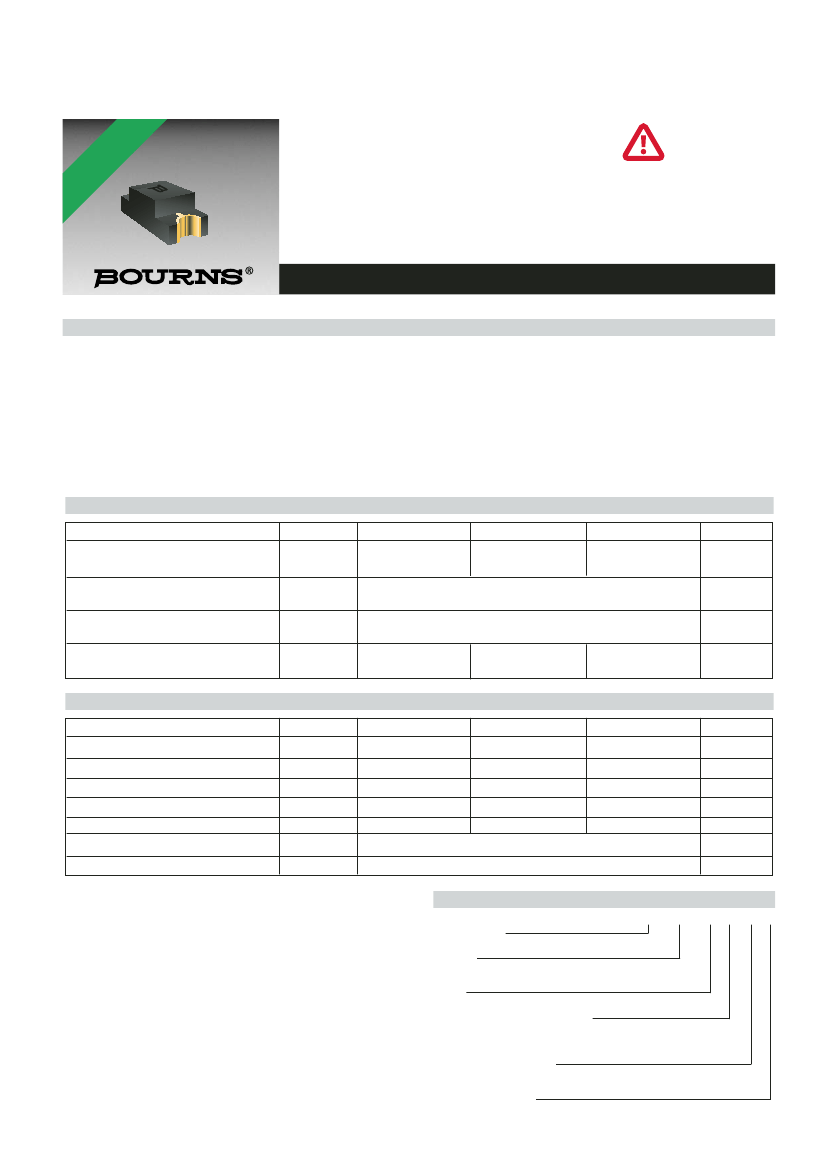

CD1206-S0175R Overview

Switching Chip Diode Series

CD1206-S0175R Preview

IA
NT
Features
Applications
Lead free as standard
RoHS compliant*
Leadless
High speed
Cellular phones
PDAs
Desktop PCs and
notebooks
Digital cameras
MP3 players
CD0805-xxxx products
are currently available,
although not recom-
mended for new designs. Use
CD1005-xxxx
products as an
alternative.
*R
oH
S
CO
M
PL
General Information
The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly
smaller electronic components.
Bourns offers small-signal high-speed Switching Diodes for switching digital signal applications, in compact chip package 0805 and 1206 size
format, which offer PCB real estate savings and are considerably smaller than competitive parts. The Switching Diodes offer a forward current
of 100 mA or 150 mA, a reverse voltage of 80 V or 75 V and also have a low leakage reverse current option. The diodes are lead-free with
Cu/Ni/Au plated terminations and are compatible with lead-free manufacturing processes, conforming to many industry and government
regulations on lead-free components.
Bourns
®
Chip Diodes conform to JEDEC standards, easy to handle on standard pick and place equipment and their flat configuration makes
roll away much more difficult.
Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted)
6
Parameter
Forward Voltage (Max.)
Capacitance Between Terminals (Max.)
Reverse Recovery Time (Max.)
Reverse Current (Max.)
Parameter
Repetitive Peak Reverse Voltage
Reverse Voltage
Average Forward Current
Forward Current, Surge Peak
Power Dissipation
Storage Temperature
Junction Temperature
Switching Chip Diode Series - 0805 / 1206
Symbol
VF
CT
trr
IR
CDxxxx-S0180
1.00
(If = 100 mA)
CDxxxx-S01575
CDxxxx-S0180R
Unit
V
pF
nS
µA
1.00
1.00
(If = 50 mA)
(If = 100 mA)
3
(f = 100 MHz, Vr = 1 V DC)
4
(Vr = 6V, If = 10 mA, RL = 50
Ω)
0.1
2.5
0.05
(Vr = 80 V)
(Vr = 75 V)
(Vr = 75 V)
Absolute Ratings (@ TA = 25 °C Unless Otherwise Noted)
Symbol
VRRM
VR
Io
Isurge
PD
TSTG
TJ
CDxxxx-S0180
90
80
100
1*
300
CDxxxx-S01575
100
75
150
4**
350
-55 to +125
-55 to +125
CDxxxx-S0180R
90
80
100
1*
300
Unit
V
V
mA
A
mW
°C
°C
* Condition: 8.3 ms single half sine-wave superimposed on rate load
(JEDEC method).
** Condition: 1.0 µs single half sine-wave superimposed on rate load
(JEDEC method).
How To Order
CD 0805 - S 01 80 R
Common Code
Chip Diode
Package
• 0805
• 1206
Model
S = High Speed Switching
Average Forward Current (Io) Code
01 = 100 mA
015 = 150 mA
(Code x 1000 mA = Average Forward Current)
Reverse Voltage (VR) Code
80 = 80 V
75 = 75 V
Reverse Current Suffix
R = Low Leakage IR (CDxxxx-S0180R)
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Switching Chip Diode Series - 0805 / 1206
Product Dimensions
A
C
Recommended Pad Layout
A
D
B
B
C
E
Dimension
A (Max.)
B (Min.)
Dimension
A
B
C
D
E
0805
2.00 - 2.20
(0.079 - 0.087)
1.20 - 1.40
(0.047 - 0.055)
0.40
Typ.
(0.016)
0.20
R Typ.
(0.008)
0.90 - 1.10
(0.035 - 0.043)
MM
DIMENSIONS:
(INCHES)
1206
3.00 - 3.20
(0.118 - 0.126)
1.40 - 1.60
(0.055 - 0.063)
0.50
Typ.
(0.020)
0.25
R Typ.
(0.010)
0.90 - 1.10
(0.035 - 0.043)
C (Min.)
0805
2.10
(0.082)
1.20
(0.047)
1.20
(0.047)
MM
(INCHES)
1206
3.00
(0.118)
1.60
(0.063)
1.40
(0.055)
DIMENSIONS:
Physical Specifications
Case ....................................0805(2012) / 1206(3216) Molded plastic
Terminals ......................Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity ....................................................Indicated by cathode band
Mounting Position ........................................................................Any
Typical Part Marking
CDxxxx-S0180 ................................................................................S1
CDxxxx-S01575 ..............................................................................S3
CDxxxx-S0180R ..............................................................................S2
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Switching Chip Diode Series - 0805 / 1206
Rating and Characteristic Curves: CDxxxx-S0180
Forward Characteristics
1000
Reverse Characteristics
100
10
Forward Current (mAmps)
100
Reverse Current (nA)
1
125
°C
85
°C
10
0.1
25
°C
25
°C
125
°C
85
°C
1
0.0
0.2
0.4
0.6
0.8
1.0
1.2
-25
°C
0
0
10
20
30
40
50
60
70
80
Reverse Voltage (Volts)
Forward Voltage (Volts)
Derating Curve
120
Mounting on glass epoxy PCBs
100
Capacitance Between Terminals
5.0
F = 100 MHz
Ta = 25
°
C
4.0
Capacitance Between Terminals (pF)
80
I0 Current (%)
3.0
60
2.0
40
20
1.0
0
0
25
50
75
100
125
150
0.0
0
2
4
6
8
10
12
14
Ambient Temperature (°C)
Reverse Voltage (Volts)
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Switching Chip Diode Series - 0805 / 1206
Rating and Characteristic Curves: CDxxxx-S01575
Forward Characteristics
1000
Reverse Characteristics
100.0
10.0
125
°C
Forward Current (mAmps)
100
Reverse Current (nA)
1.0
85
°C
10
0.1
25
°C
25
°C
125
°C
85
°C
1
0.0
0.2
0.4
0.6
0.8
1.0
1.2
Reverse Voltage (Volts)
Forward Voltage (Volts)
-25
°C
0
0
10
20
30
40
50
60
70
80
Derating Curve
120
Mounting on glass epoxy PCBs
100
Capacitance Between Terminals
5.0
F = 100 MHz
Ta = 25
°C
4.0
Capacitance Between Terminals (pF)
80
I0 Current (%)
3.0
60
2.0
40
20
1.0
0
0
25
50
75
100
125
150
0.0
0
2
4
6
8
10
12
14
Ambient Temperature (°C)
Reverse Voltage (Volts)
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Switching Chip Diode Series - 0805 / 1206
Rating and Characteristic Curves: CDxxxx-S0180R
Forward Characteristics
1000
Reverse Characteristics
100.0
Forward Current (mAmps)
10.0
100
125
°C
Reverse Current (nA)
1.0
85
°C
10
0.1
25
°C
125
°C
85
°C
1
0.0
0.2
0.4
0.6
0.8
1.0
1.2
0
0
20
40
Reverse Voltage (Volts)
60
80
-25
°C
25
°C
Forward Voltage (Volts)
Derating Curve
120
Mounting on glass epoxy PCBs
100
Capacitance Between Terminals
5.0
F = 100 MHz
Ta = 25
°C
4.0
Capacitance Between Terminals (pF)
80
I0 Current (%)
3.0
60
2.0
40
20
1.0
0
0
25
50
75
100
125
150
0.0
0
2
4
6
8
10
12
14
Ambient Temperature (°C)
Reverse Voltage (Volts)
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
