LCFE160804A180TG

Description
Common Mode Chokes / Filters 18ohms 30% 100A 4 Lines 1608
CategoryPassive components
File Size5MB,20 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Environmental Compliance
Download Datasheet Parametric Compare View All

LCFE160804A180TG Overview

Common Mode Chokes / Filters 18ohms 30% 100A 4 Lines 1608

LCFE160804A180TG Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerLittelfuse
Product CategoryCommon Mode Chokes / Filters
RoHSDetails
Termination StyleSMD/SMT
Inductance-
Impedance18 Ohms
Tolerance30 %
Maximum DC Current100 mA
Maximum DC Resistance6 Ohms
Self Resonant Frequency-
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Package / Case1608-10
Length1.6 mm
Width0.8 mm
Height0.5 mm
PackagingCut Tape
PackagingMouseReel
PackagingReel
ProductCommon Mode Noise Filters
TypeHigh Speed Differential Line Filter
Number of Channels4 Channel
Lead Spacing0.4 mm
Factory Pack Quantity4000
Common Mode Noise Filter
LCFE Series
LCFE Series
Description
This specification covers the engineering requirements for both Common Mode
Noise Filter (CMF) and ESD Protection, especially high speed differential serial
interfaces, such as USB 3.1, USB 3.0, MIPI D-PHY or HDMI.
Features
• Effective for suppressing common
mode noise and almost no effect for
high speed differential data line
• Differential mode cut-off frequency
up to 10.5GHz at -3dB
• One common mode filters and two
ESD suppression devices integrated
• Ultra low profile as low as
0.68x0.55x0.35mm

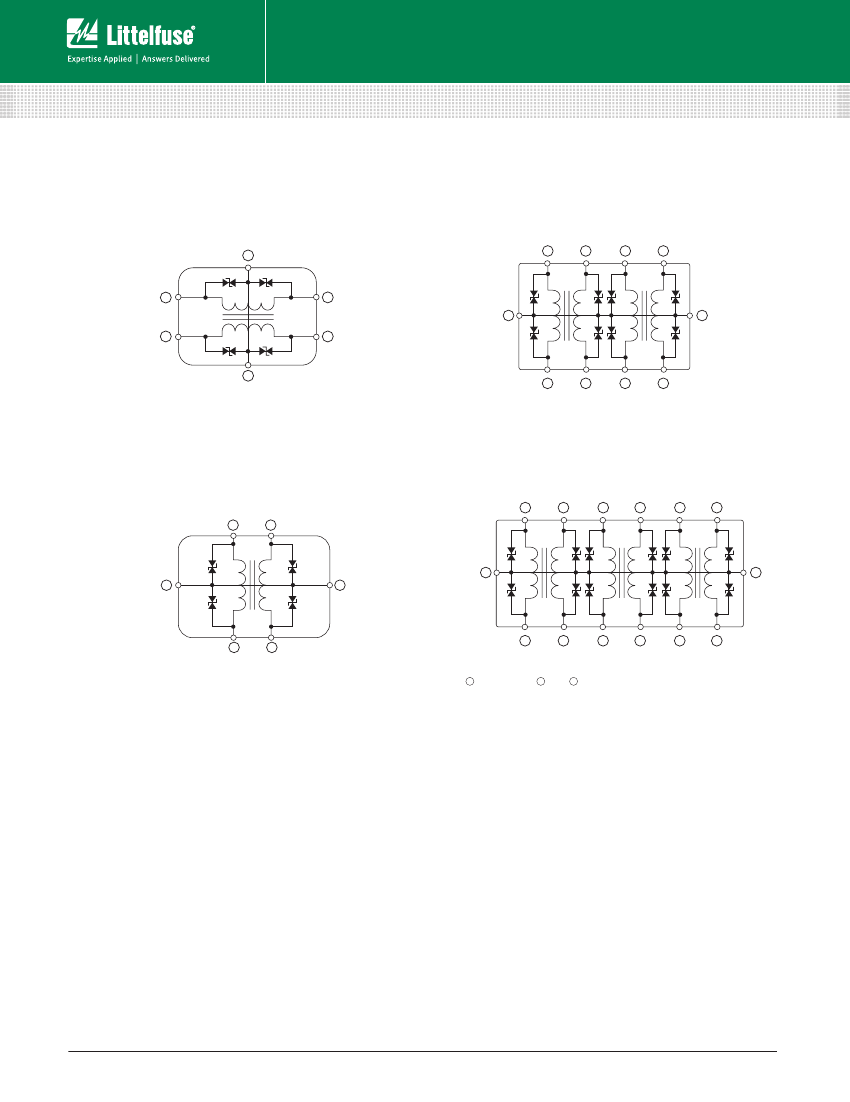

Pin6
Pinout

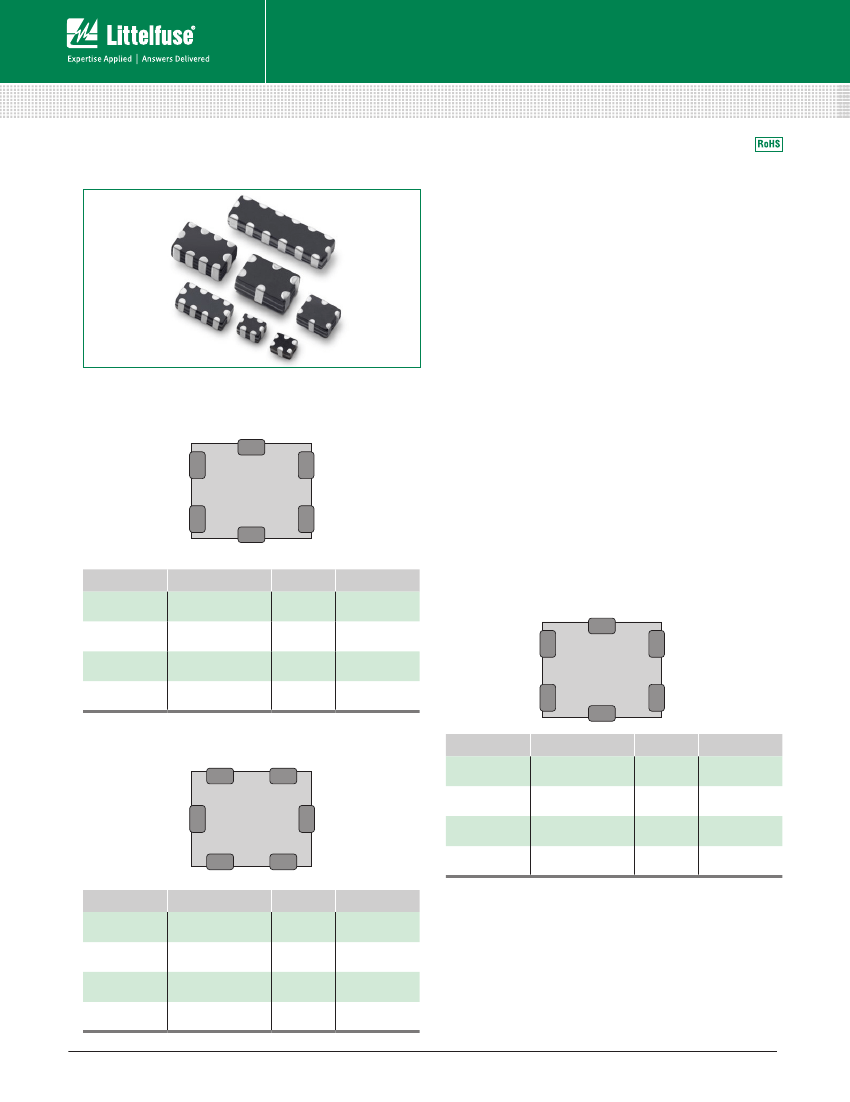

0605mm Size
• Ceramic multilayer type SMD
component
• Non-polarized product
• Conforming to RoHS directive
• ±15kV air, ±8kV contact ESD
protection (IEC 61000-4-2 Level 4)
• High temperature soldering
guaranteed: 260°C/10 seconds
Pin2
Pin3
Applications
− Mobile Phone and Tablet
• USB 3.1 Gen 1 and 2 (5 and 10Gbps)
with Type C
• Display Port 1.2 (5.4Gbps)
• HDMI 2.0 (6.0Gbps)
• MDDI, MIPI, MHL
− Portable/Wearable Devices
• Game console, POS, VR, Dongle
− Consumer Products
• PDP, LCD TV, DVD Player, PC, Audio
player, DSC, Set top box, Laptop,
SSD, Home Automation, IoT module
Pin1
Pin4
Pin5
Item
Rdc
CM
Impedance
IL
IR
CR
Description
Pin 1-4, 2-3
Pin 1-2(Short) to
Pin 3-4(Short)
Pin 5 or 6 to
Pin 1,2,3,4
Pin 1-2 or
Pin 3-4
Source
10mA DC
Source
500mV
5V DC
Source
5V DC
Source
Equipment
Source Meter
LCR Meter
(3GHz)
Source Meter
Source Meter
1210mm Size
Pin6
Pin2
Pin3
Pin1
Pin4
0806mm Size
Pin1
Pin2
Pin5
Item
Rdc
CM
Impedance
Pin5
Pin6
Description
Pin 1-4, 2-3
Pin 1-2(Short) to
Pin 3-4(Short)
Pin 5 or 6 to
Pin 1,2,3,4
Pin 1-2 or
Pin 3-4
Source
10mA DC
Source
500mV
5V DC
Source
5V DC
Source
Equipment
Source Meter
LCR Meter
(3GHz)
Source Meter
Source Meter
IL
IR
CR
Pin3
Pin4
Item
Rdc
CM
Impedance
IL
IR
CR
Description
Pin 1-3, 2-4
Pin 1-2(Short) to
Pin 3-4(Short)
Pin 5 or 6 to
Pin 1,2,3,4
Pin 1-2 or
Pin 3-4
Source
10mA DC
Source
500mV
5V DC
Source
5V DC
Source
Equipment
Source Meter
LCR Meter
(3GHz)
Source Meter
Source Meter
© 2017 Littelfuse
Revised: 07/14/17
Specifications are subject to change without notice.
littelfuse.com
