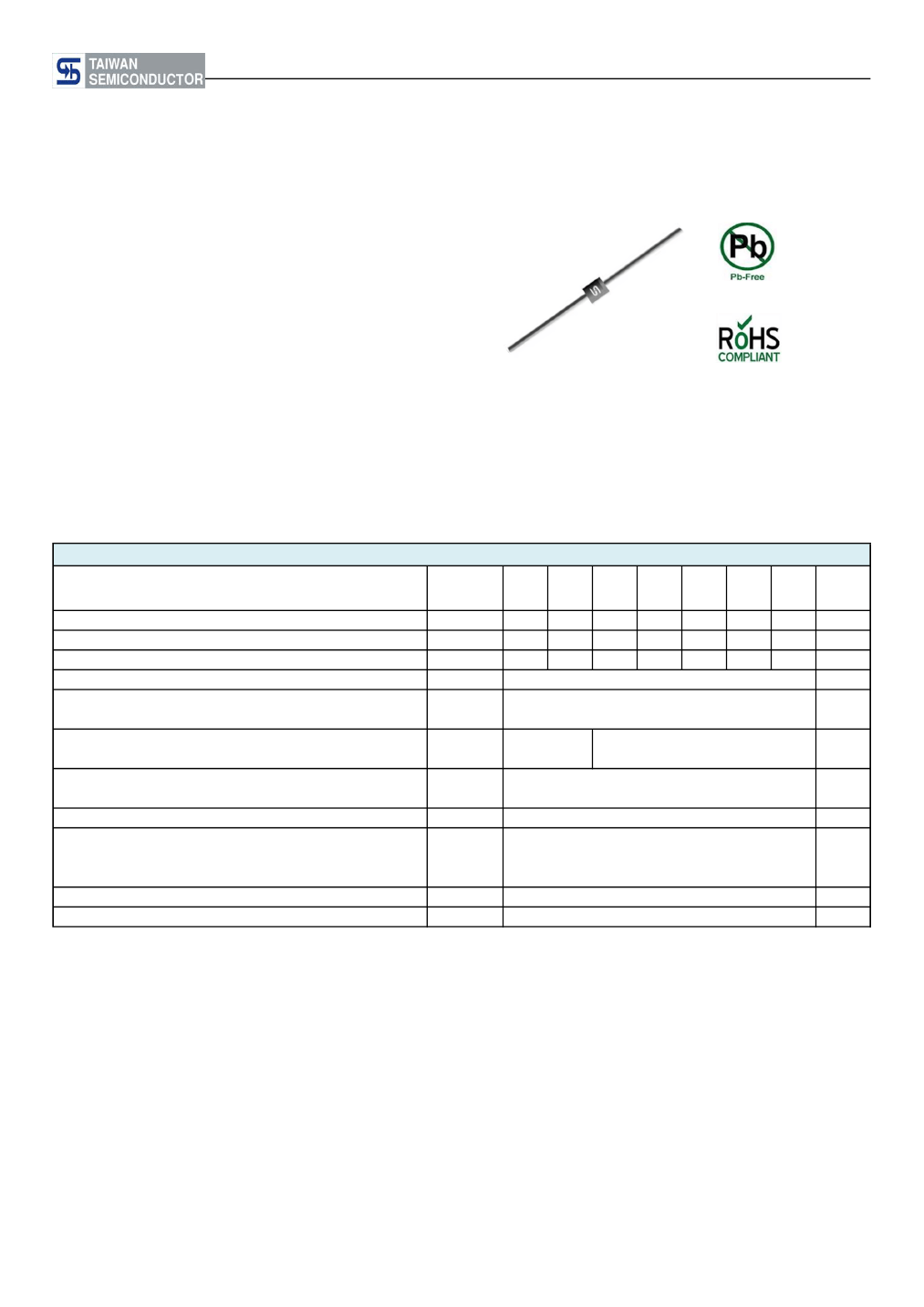

2A01G thru 2A07G
CREAT BY ART
FEATURES
- Glass passivated chip junction
- High efficiency, Low VF
- High current capability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Glass Passivated Rectifiers
MECHANICAL DATA
Case:
DO-204AC (DO-15)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - green compound (halogen-free)
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Weight:
0.4g (approximately)
DO-204AC (DO-15)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@2A
Maximum reverse current @ rated VR
Typical junction capacitance (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300
μs,
1% duty cycle
Note 2: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Cj
R
θJC
R
θJL
R
θJA
T
J
T
STG
1.1
5
100
15
22
25
60
- 55 to +150
- 55 to +150
O
2A
01G
50
35
50
2A
02G
100
70
100
2A
03G
200
140
200
2A
04G
400
280
400
2
70
2A
05G
600
420
600
2A
06G
800
560
800
2A
07G
1000
700
1000
UNIT
V
V
V
A
A
1.0
V
μA
pF
C/W
O
O
C
C
Document Number: DS_D1405014
Version: H14
2A01G thru 2A07G
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
2A0xG
(Note 1)
A0
Prefix "H"
R0
B0
Suffix "G"
PACKING CODE
GREEN COMPOUND
CODE
DO-15
DO-15
DO-15
1,500 / Ammo box
3,500 / 13" Paper reel
1,000 / Bulk packing
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (2A01G) to 1000V (2A07G)
EXAMPLE
PREFERRED P/N
2A01G A0
2A01G A0G
2A01GHA0
PART NO.
2A01G
2A01G
2A01G
H
AEC-Q101
QUALIFIED
PACKING CODE
A0
A0
A0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

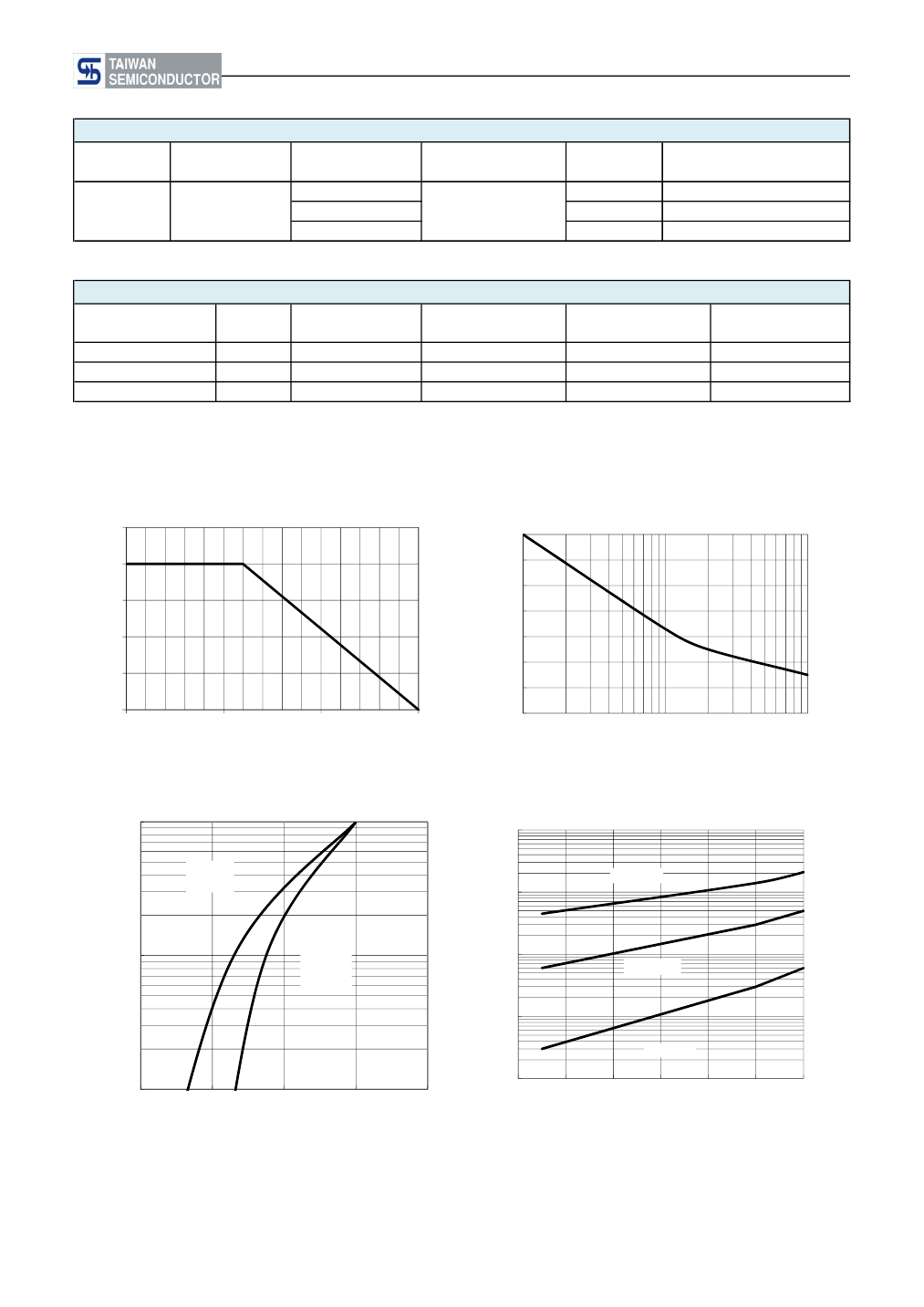

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 MAXMUM FORWARD CURRENT
DERATING CURVE
2.5
PEAK FORWARD SURGE CURRENT(A)
70
60
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 2 MAXIMUM FORWARD SURGE CURRENT
AVERAGE FORWARD CURRENT(A)
2
1.5
1
0.5
0
0
50
100
150
AMBIENT TEMPERATURE(
o
C)
Fig. 3 TYPICAL FORWARD CHARACTERISTICS
10
100
FIG. 4 MAXIMUM REVERSE LEAKAGE
CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT (A)
REVERSE LREAKAGE CURRENT (μA)
2A01G -
2A02G
TJ=125℃
10
1
2A03G -
2A07G
1
TJ=75℃
0.1
TJ=25℃
0.01
0.1
0.6
0.8
1
FORWARD VOLTAGE (V)
1.2
1.4
0
20
40
60
80
100
120
PERCENTAGE OF VR (%)
Document Number: DS_D1405014
Version: H14
2A01G thru 2A07G
Taiwan Semiconductor
CREAT BY ART
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE
(pF)
10
f=1.0MHz
Vsig=50mVp-p
1
0.1
1
10
100
REVERSE VOLTAGE (V)
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
2.60
0.70
25.40
5.80
25.40
Max
3.60
0.90
-
7.60
-
Unit (inch)
Min
0.102
0.028
1.000
0.228
1.000
Max
0.142
0.035
-
0.299
-
DIM.
A
B
C
D
E
MARKING DIAGRAM
P/N =
G=
F=
Specific Device Code
Green Compound
Factory Code
YWW = Date Code
Document Number: DS_D1405014
Version: H14
2A01G thru 2A07G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1405014
Version: H14
