DEMO MANUAL DC2095A
LTC6655
0.25ppm Noise, Low Drift
Precision Reference
DESCRIPTION
Demonstration circuit 2095A features the
LTC
®
6655,
a
precision low drift reference packaged in a hermetic LS8.
The demonstration circuit is available with the 2.5V, 4.096V
or 5V output voltage option parts.
The demo board circuit shows the optimal layout for overall
reference performance. The LTC6655 has a maximum
drift of 2ppm/°C and an initial accuracy of ±0.025%. The
hermetic package further improves the Long Term Drift
performance of the reference to 20ppm/√kHr. Another
benefit of the hermetic package is improved humidity
performance. Testing has shown that humidity can cause
the PCB to deform and stress the package. To reduce this
effect the ground plane is removed directly under the
reference. Doing this reduces output voltage shift as a
result of humidity to less than 10ppm.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2095A
L,
LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
PERFORMANCE SUMMARY
SYMBOL
V
IN
V
OUT
Long-Term Drift of Output Voltage
I
Q
Supply Current
PARAMETER
Input Supply Range
Output Voltage Accuracy
Specifications are at T
A
= 25°C
CONDITIONS
MIN
V
OUT
+ 0.5
–0.025
20
5
TYP
MAX
13
+0.025
UNITS
V
%
ppm/√kHr
mA
dc2095af
1
DEMO MANUAL DC2095A
QUICK START PROCEDURE
With the demonstration circuit, it is easy to set up and
evaluate the performance of the LTC6655. Refer to Figure 1
for proper measurement equipment setup and follow the
procedure below:
1. With the power off, connect the power supply positive
to V
IN
and the common to GND. With default settings,
the supply can range from V
OUT
+0.5V to 13V.
2. Connect a DVM to the V
OUT
turret with the common
connection connected to ground.
3. Turn on power supply and confirm reference operation.
3.00V
2.500V

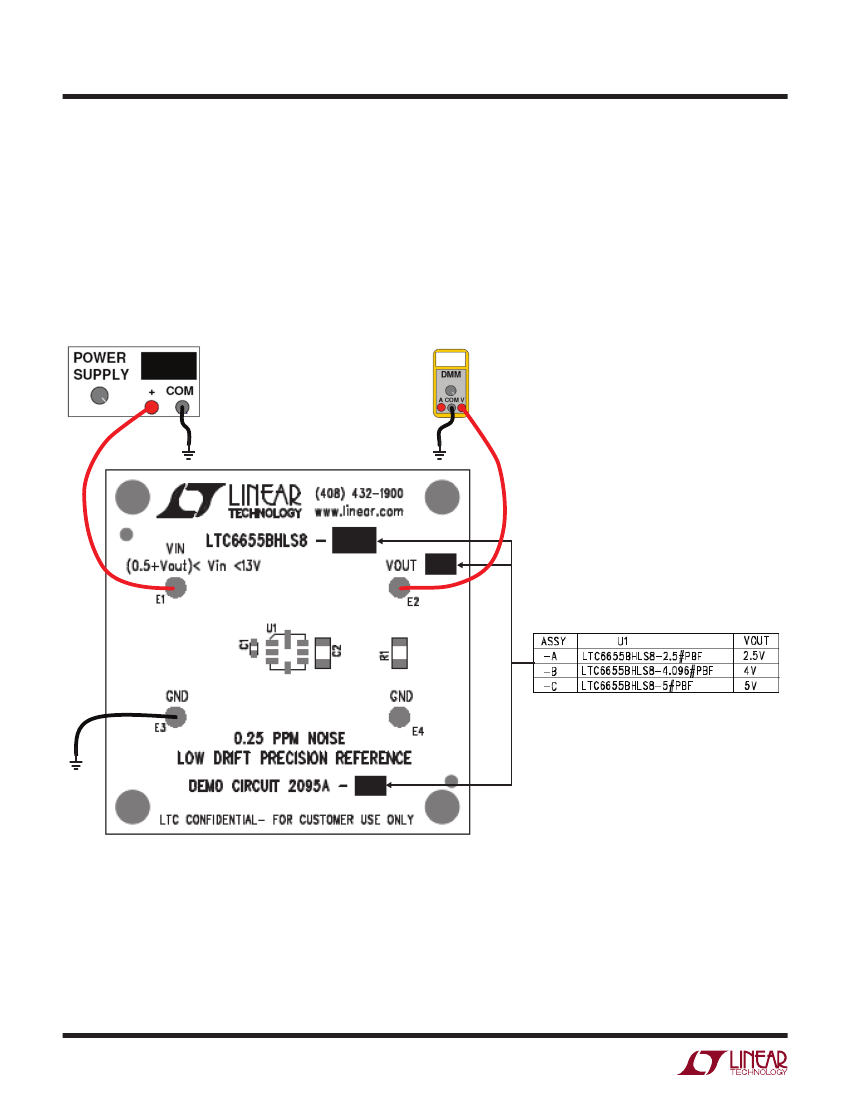

Figure 1. Test Setup
2
dc2095af
5
4
3
2
D
1
D
SCHEMATIC DIAGRAM
C
C
B
B
Information furnished by Linear Technology Corporation is believed to be accurate and reliable.
However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-
tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.
TECHNOLOGY
A
½
½
3
A
½
4
2
1
5
DEMO MANUAL DC2095A
dc2095af
3
DEMO MANUAL DC2095A
