DMN1006UCA6-7

Description
MOSFET MOSFETBVDSS: 8V-24V
CategoryDiscrete semiconductor    The transistor
File Size390KB,7 Pages
ManufacturerDiodes Incorporated
Environmental Compliance
Download Datasheet Parametric View All

DMN1006UCA6-7 Online Shopping

Suppliers Part Number Price MOQ In stock
DMN1006UCA6-7 - - View Buy Now

DMN1006UCA6-7 Overview

MOSFET MOSFETBVDSS: 8V-24V

DMN1006UCA6-7 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionGRID ARRAY, R-PBGA-B6
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time17 weeks
ConfigurationCOMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR
Maximum drain-source on-resistance0.011 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PBGA-B6
JESD-609 codee4
Humidity sensitivity level1
Number of components2
Number of terminals6
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formGRID ARRAY
Peak Reflow Temperature (Celsius)260
Polarity/channel typeN-CHANNEL
surface mountYES
Terminal surfaceNickel/Palladium/Gold (Ni/Pd/Au)
Terminal formBALL
Terminal locationBOTTOM
Maximum time at peak reflow temperature30
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1
DMN1006UCA6
6
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
SSS
12V
R
SS(ON) MAX
5.9mΩ @ V
GS
= 4.5V
9.0mΩ @ V
GS
= 2.5V
I
S
T
A
= +25°
C
16.6A
12.1A
Features
CSP with Footprint 2.70mm × 1.81mm
Height = 0.21mm for Low Profile
ESD Protection of Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
SS(ON)
) and yet maintain superior switching performance,
making it ideal for high-efficiency power management applications.
Mechanical Data
Case: X3-DSN2718-6
Terminal Connections: See Diagram Below
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish
NiPdAu. Solderable per MIL-STD-202,
Method 208
e4
Applications
Battery Management
Load Switch
Battery Protection

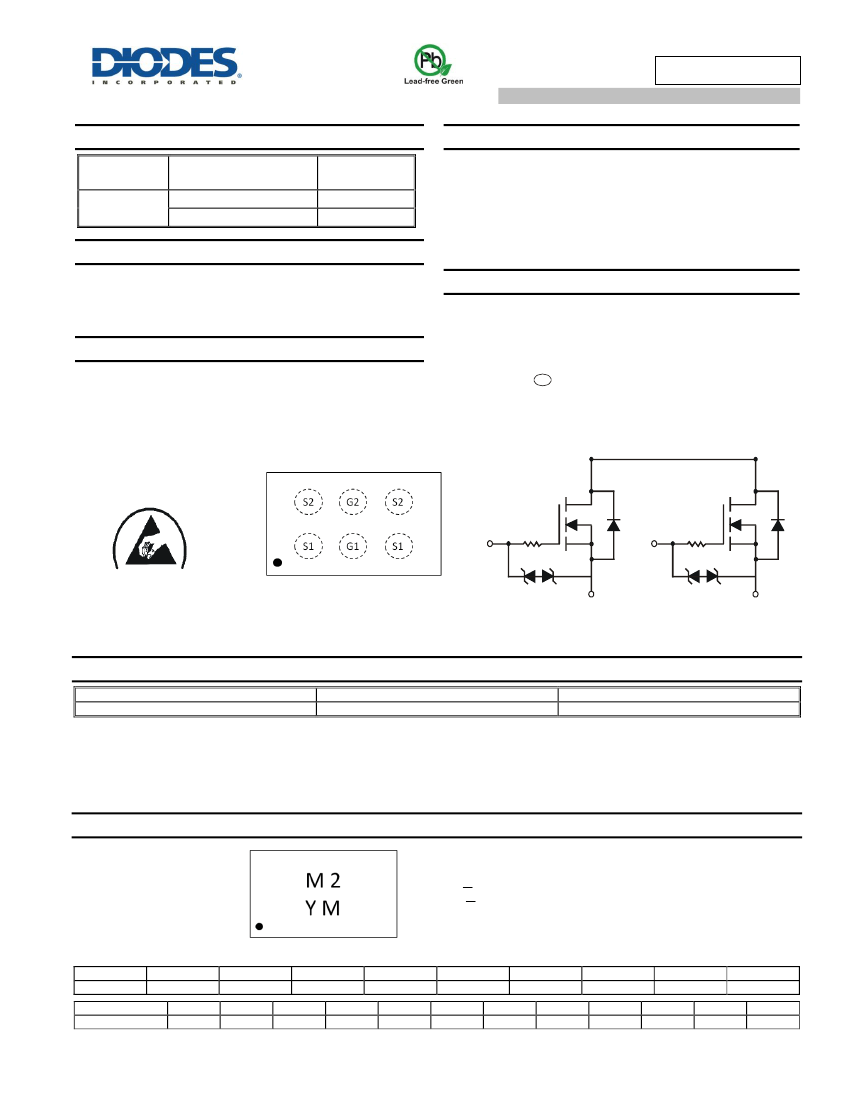

X3-DSN2718-6
G1
G2
ESD PROTECTED
Top View
S1
S2
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
DMN1006UCA6-7
Notes:
Case
X3-DSN2718-6
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See http://www.diodes.com/quality/lead_free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
M2 = Product Type Marking Code
YM = Date Code Marking
Y or Y = Year (ex: F = 2018)
M or M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2017
E
Jan
1
2018
F
Feb
2
Mar
3
2019
G
Apr
4
2020
H
May
5
2021
I
Jun
6
Jul
7
2022
J
Aug
8
2023
K
Sep
9
Oct
O
2024
L
Nov
N
2025
M
Dec
D
DMN1006UCA6
Document number: DS39390 Rev. 6 - 2
1 of 7
www.diodes.com
March 2018
© Diodes Incorporated
