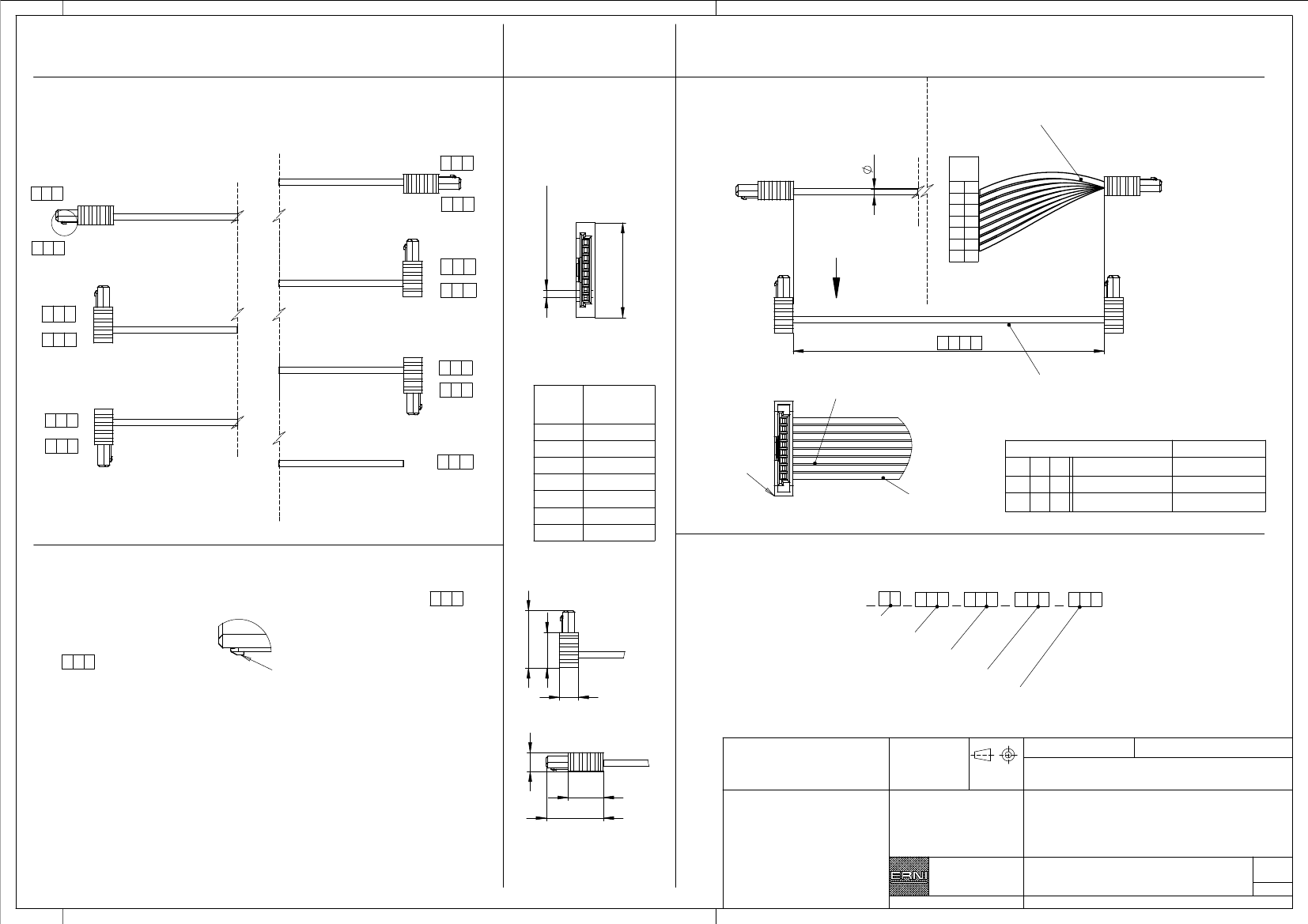

Attachment, Connector Coding & Locking Specification
Connector typical
dimension
Wire Counting & Ribbon Cable Specification
Connector #1
Connector #2
SPX
Pin pitch 1,27
1
Note: wire #1 is always in
front of all views
wire
count
0
0
0
0
0
1
1
2
3
4
6
8
0
2
SPX
SFX
A
APU
AF U
SF X
A
D
APU
AFU
APD
AFD
APD
AFD
NX X
No. of
Pin
2
3
4
6
8
10
12
Dim A
7,62
8,89
10,16
12,7
15,24
17,78
20,32
Note: Printing is always on this side
Length
+5
0
Note: standard cable length from 25 to 1000mm
(5mm increments)
Cable Type
Connector #1
View D
Wire #1
H
P
H
T
V
F
C
High - Temperature
PVC
Halogen - Free
Drawing #
244891
254000
254240
Product Code
IDCCS SRC 1.27
wire count
connector #1
connector #2
length
cable type
DETAIL A
P
ositive lock
unlockable only with tool
P
9,2
F
F
riction lock
unlockable without tool
Locking latch
3
5,7
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Note: please consider the correct
orientation of the locking latch in all views!
Information:
Tolerances
All Dimensions
in mm
Scale 2:1
Sheet 1/2
3
5,7
9,2
All rights reserved.
Only for Information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
MiniBridge
Flat Cable Assemblies
www.ERNI.com
Class
IDCCS
839000
I
A3
Connector Part Number to Connector Coding Crossreference
Wire Count
2
2
2
2
3
3
3
3
4
4
4
4
6
6
6
6
8
8
8
8
10
10
10
10
12
12
12
12
Part No
Cable Connector
224393
214015
224397
214157
234452
234451
234459
234458
224394
214025
224398
214049
224395
214038
224399
214158
224396
214039
224400
214159
234466
234465
234473
234472
234480
234479
234487
234486
Connector Coding
Connector #1
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
Connector #2
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
AFU/AFD
APU/APD
SFX
SPX
Note: please use product code (as shown in drawing 839000 sheet 1/2)
also for inquiries differing to the standard cable assemblies.
A partnumber will be assigned during series order!
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Information:
Tolerances
All Dimensions
in mm
Sheet 2/2
All rights reserved.
Only for Information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
MiniBridge
Flat Cable Assemblies
www.ERNI.com
Class
839000
I
A4
