617175053 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 617175053

617175053: DescriptionHeavy Duty Power Connectors EPX QDX#8PIN ENV CAB NF26Q100; CategoryThe connector Connector bracket; File Size148KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

617175053 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	617175053	-	-	View	Buy Now

617175053 Overview

Heavy Duty Power Connectors EPX QDX#8PIN ENV CAB NF26Q100

617175053 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Factory Lead Time	10 weeks
Connector bracket type	CONNECTOR ACCESSORY

Preview

Download Datasheet

View All

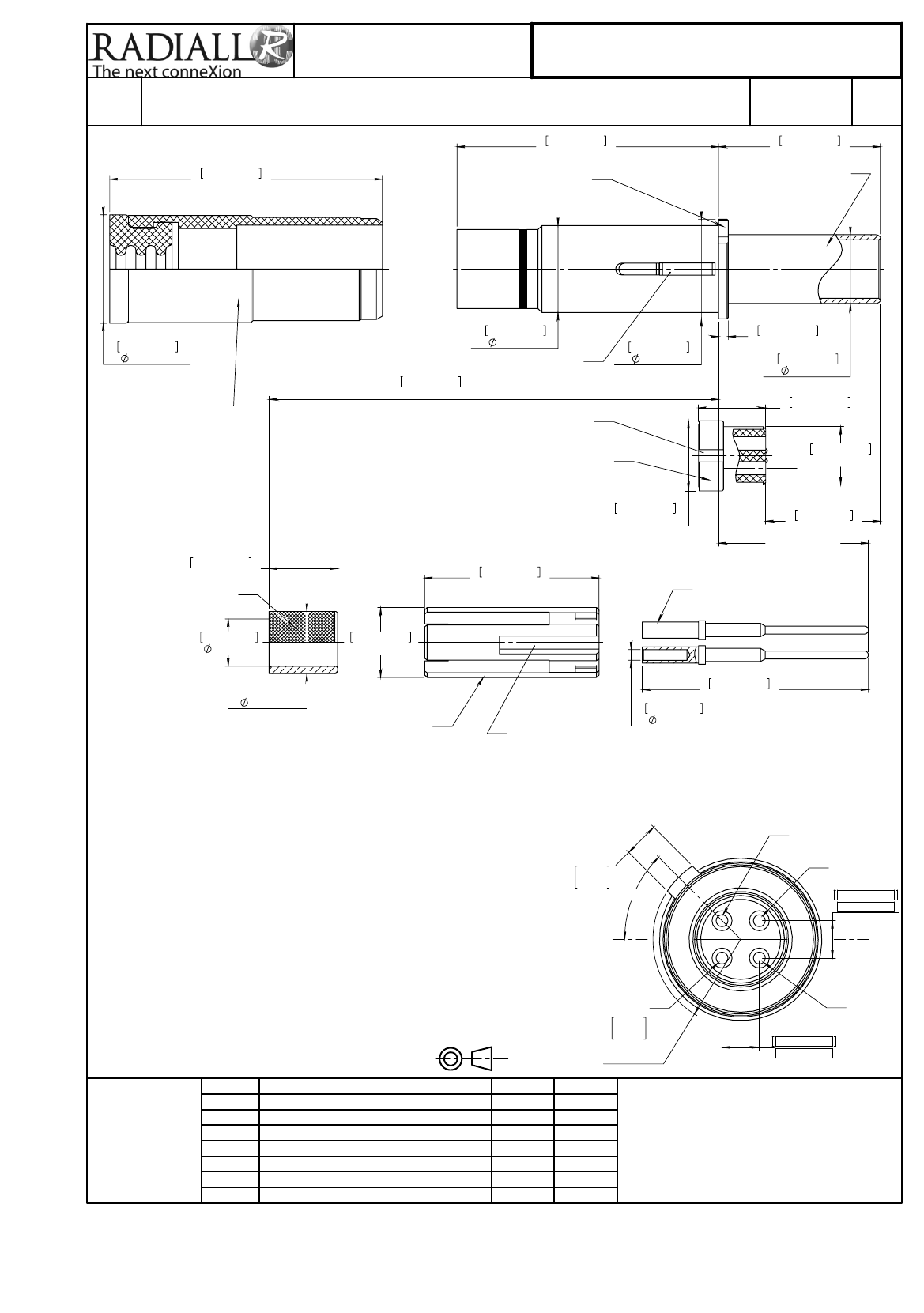

TECHNICAL DATA SHEET

Series

617 175 053

Issue:

Jan 29, 09

0,515 max.

13,08 max.

OUTER BODY CONTACT

EPXB

ENVIRONMENTAL SIZE 8 QUADRAX PIN CONTACT

FOR QUADRAX TENSOLITE NF26Q100 CABLES

FOR QUADRAX GORE RCN8487-1 CABLES

1/1

Page

0,906 max.

23 max.

0,835 max.

21,20 max.

POLARIZING KEY FOR

MOUNTING INTO INSERT

0,343 max.

8,70 max.

0,276 max.

7,01 max.

INSULATOR POLARIZING KEY

0,906 max.

23 max. after crimping

POLARIZING KEY WAY

INSULATOR

RADIALL

617 175 053

0,316 max.

8,03 max.

0,033 max.

0,83 max.

0,219 max.

5,56 max.

0,217 max.

5,50 max.

0,185 max.

4,70 max.

SEALING BOOT

This information is given as an indication.In the continual goal to improve our products,we reserve the right to make any modifications judged necessary.

0,222 max.

5,64 max.

0,217 max.

5,51 max.

SHIELD CRIMP FERRULE

0,354 min.

9 min.

[0,485/0,466]

12,30/11,85

4 x SIZE 24 CENTER CONTACTS

0,559 max.

14,20 max.

0,149 min.

3,79 min.

0,222 max.

5,64 max.

0,727 max.

18,45 max.

[0,198 max.]

5,01 max.

SPACER

POLARIZING KEY WAY

0,033 min.

0,85 min.

Confidential information not to be disclosed to third parties without Radiall approval

MATERIALS:

- OUTER CONTACT: COPPER ALLOY.

- CENTER CONTACTS: COPPER ALLOY.

- FERRULE: COPPER ALLOY.

- INSULATOR AND SPACER: PTFE OR EQUIVALENT

- SEALING BOOT: THERMOPLASTIC AND FLUOROSILICONE.

FINISH:

- ALL METAL PARTS: GOLD OVER NICKEL PLATED.

EXTRACTION TOOL:

- M81969/28.03 (RADIALL: 282 549 001) OR M81969/14-06

WIRING INSTRUCTIONS: SEE RP55178

ENGAGING FACE

RX+

0,075

0,073

1,90

1,85

TX-

45°

0,079

DIMENSIONS : mm (inch are given for information only)

CREATION

PEN:

M070004817A

TX+

0,187

0,183

4,75

4,65

RX-

0,079

4112_9311

NOM:

MALTY S.

Jan 29, 09 Equivalent material of PTFE added for insulator

Sept. 25, 08 Quadrax GORE RNC8487-1 cables added.

Pailot N.

MALTY

Name

PESSARD

Approved

DATE:

Nov. 19, 2007 Nov. 30, 07

RP55178 was RP57339

PESSARD M.

APPR.:

Issue

Revisions

617175053EN

RADIALL PROPRIETARY INFORMATION
