801-83-010-20-001101 datasheet, PDF

Datasheet> All Categories > The connector> 801-83-010-20-001101

801-83-010-20-001101: DescriptionHeaders & Wire Housings; CategoryThe connector; File Size187KB，1 Pages; Manufacturer; Environmental Compliance

Download Datasheet Parametric View All

801-83-010-20-001101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	801-83-010-20-001101	-	-	View	Buy Now

801-83-010-20-001101 Overview

Headers & Wire Housings

801-83-010-20-001101 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer
Product Category	Headers & Wire Housings
RoHS	Details
Product	Headers
Type	Socket
Number of Positions	10 Position
Pitch	2.54 mm
Number of Rows	1 Row
Mounting Style	Straight Pin
Termination Style	Through Hole
Mounting Angle	Right Angle
Contact Gender	Socket (Female)
Contact Plating	Gold
Termination Post Length	3.2 mm
Contact Type	-
Current Rating	3 A
Housing Material	Polyester (PCT)
Contact Material	Beryllium Copper
Flammability Rating	UL 94 V-0
Row Spacing	-
Housing Gender	-
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C

Preview

Download Datasheet

View All

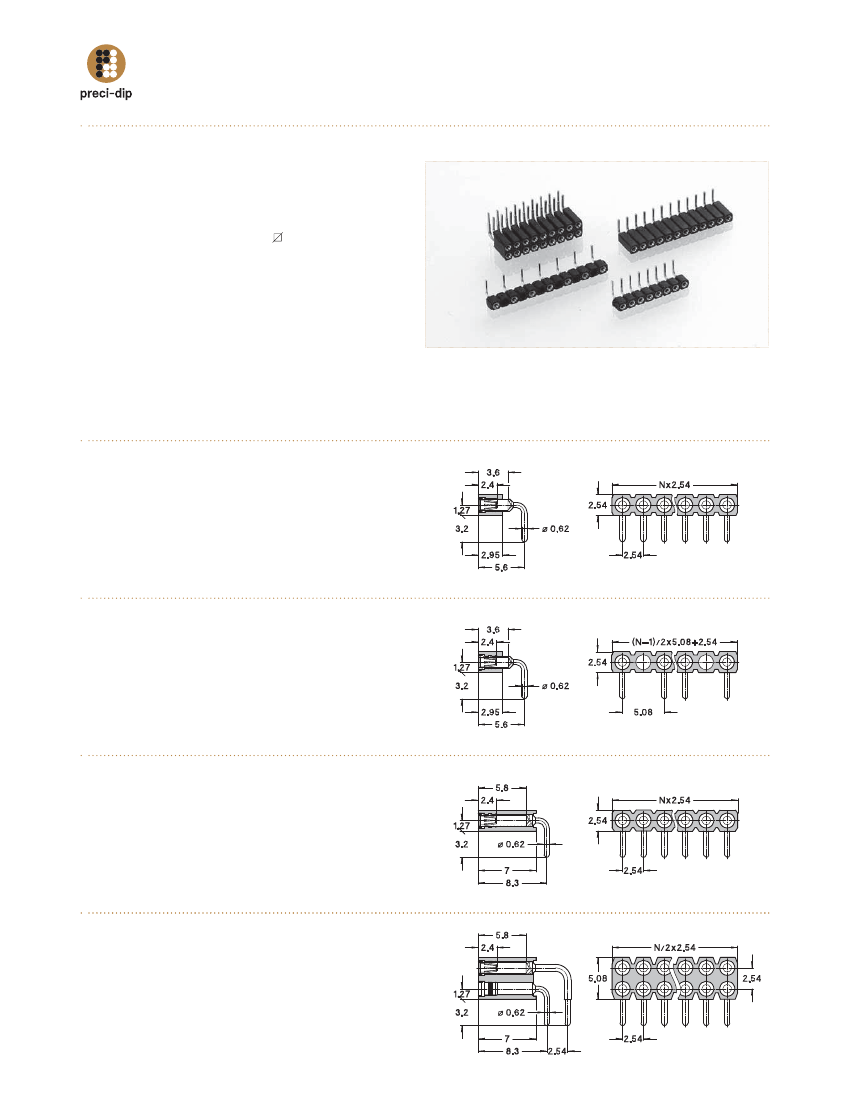

SOCKET CONNECTORS 2.54 mm

MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL /

RIGHT ANGLE

WWW.PRECIDIP.COM

TEL +41 32 421 04 00

SALES@PRECIDIP.COM

Right angle socket connectors, solder tail.

TECHNICAL SPECIFICATIONS

(FOR GENERAL SPECS, SEE PAGE 43)

INSUL ATOR

FL AMMABILIT Y

SLEEVE

CONTACT CLIP (6 FINGER)

MATING PINS

FORCES

MECHANICAL LIFE

RATED CURRENT

CONTACT RESISTANCE

DIELECTRIC STRENGTH

Black glass filled polyester PCT-GF30-FR

UL 94V-O

Brass CuZn36Pb3 (C36000)

Beryllium copper (C17200)

Ø 0.70 to 0.90 mm,

0.635 mm

1.2 N typ. insertion

0.6 N typ. withdrawal

(polished steel gauge Ø 0.76 mm)

Min. 500 cycles

Max. 10 m

Min. 1’000 V

RMS

For corresponding pin connectors, see pages 109-119.

ORDERING INFORMATION ROHS COMPLIANT PARTS

PP PL ATING CODE

SLEEVE

CLIP

Tin

Flash gold

0.75 μm gold

Other plating on request (see page 178 for plating specs).

NNN number of poles.

Replace

NNN

with the requested number of poles,

e.g. 803-87-NNN-20-001101 for a double row version with 16 pins

becomes 803-87-016-20-001101.

801-PP-NNN-20-002101

Right angle short socket connector, solder tail, single row

AVAIL ABILIT Y FROM

2 to 64 contacts

(standard number of contacts: 64)

Option: right angle short receptacle, solder tail,

double row available on request

801-PP-YYY-20-442101

Right angle short socket connector, solder tail, single row, partially

equipped 5.08 mm

AVAIL ABILIT Y FROM

2 to 32 contacts

YYY number of poles:

please consult for ordering code

Bulk :

T & R Packaging* :

801-PP-NNN-20-001101

801-PP-NNN-20-001191

Right angle socket connector, solder tail, single row

AVAIL ABILIT Y FROM

2 to 50 contacts

(standard number of contacts: 50)

*Please consult

www.precidip.com

for availability size of tape, size of

reel, number of components per reel and packing units.

803-PP-NNN-20-001101

Right angle socket connector, solder tail, double row

AVAIL ABILIT Y FROM

4 to 100 contacts

(standard number of contacts: 100)

Due to technical progress, all information provided is subject to change without prior notice.
