59K214-303L5

Description
RF Connectors / Coaxial Connectors RIGHT ANGLE JACK
CategoryThe connector    The connector
File Size65KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

59K214-303L5 Online Shopping

Suppliers Part Number Price MOQ In stock
59K214-303L5 - - View Buy Now

59K214-303L5 Overview

RF Connectors / Coaxial Connectors RIGHT ANGLE JACK

59K214-303L5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerRosenberger
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresAPPLICABLE CABLE: RG 316 /U-D
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMB CONNECTOR
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.2 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Installation methodRIGHT ANGLE
Installation typeCABLE
Maximum operating frequency4 GHz
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.22
Base Number Matches1

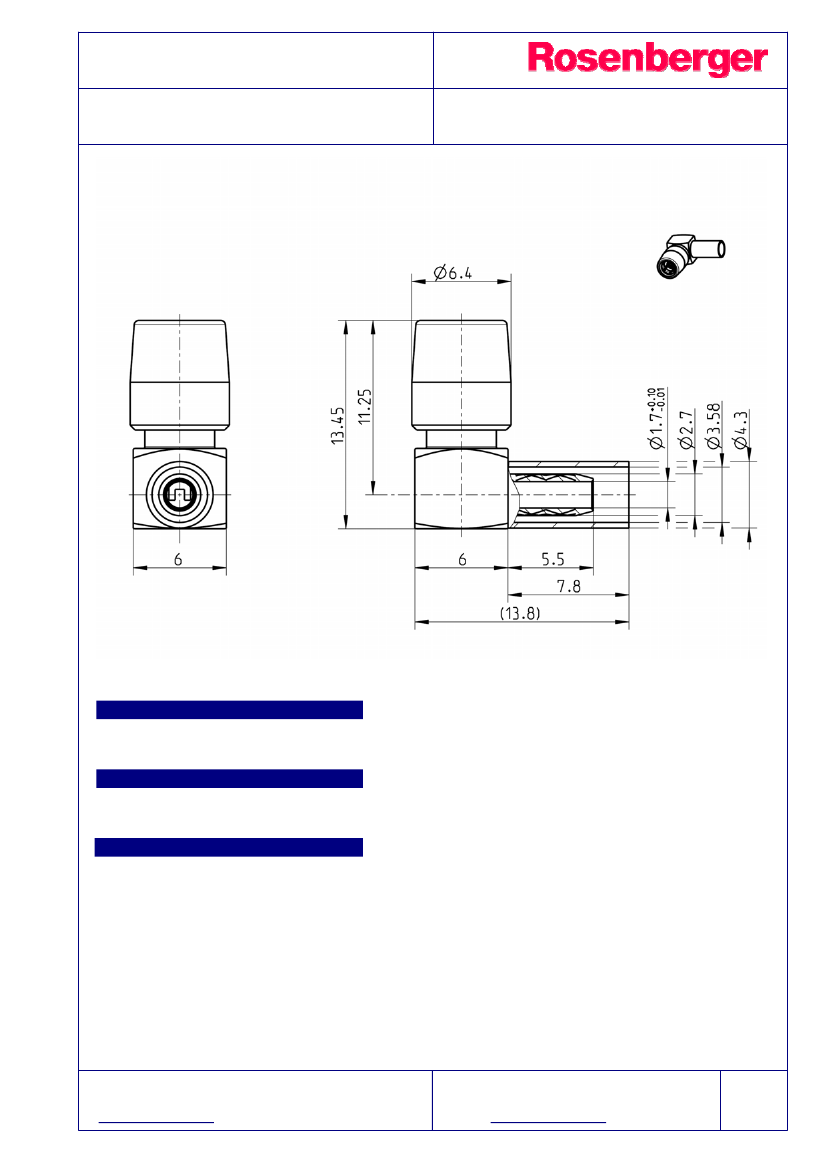

TECHNICAL DATA SHEET
SMB
RIGHT ANGLE JACK
59K214-303L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-10, CECC 22130, US MIL-C-39012
Documents
Assembly instruction
59 F
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Crimping ferrule
Material
Beryllium copper
Beryllium copper
Brass
PTFE
Copper
Plating
AuroDur
AuroDur
AuroDur
AuroDur
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
