TECHNICAL DATA SHEET
QMA
BULKHEAD JACK
28K607-303N5

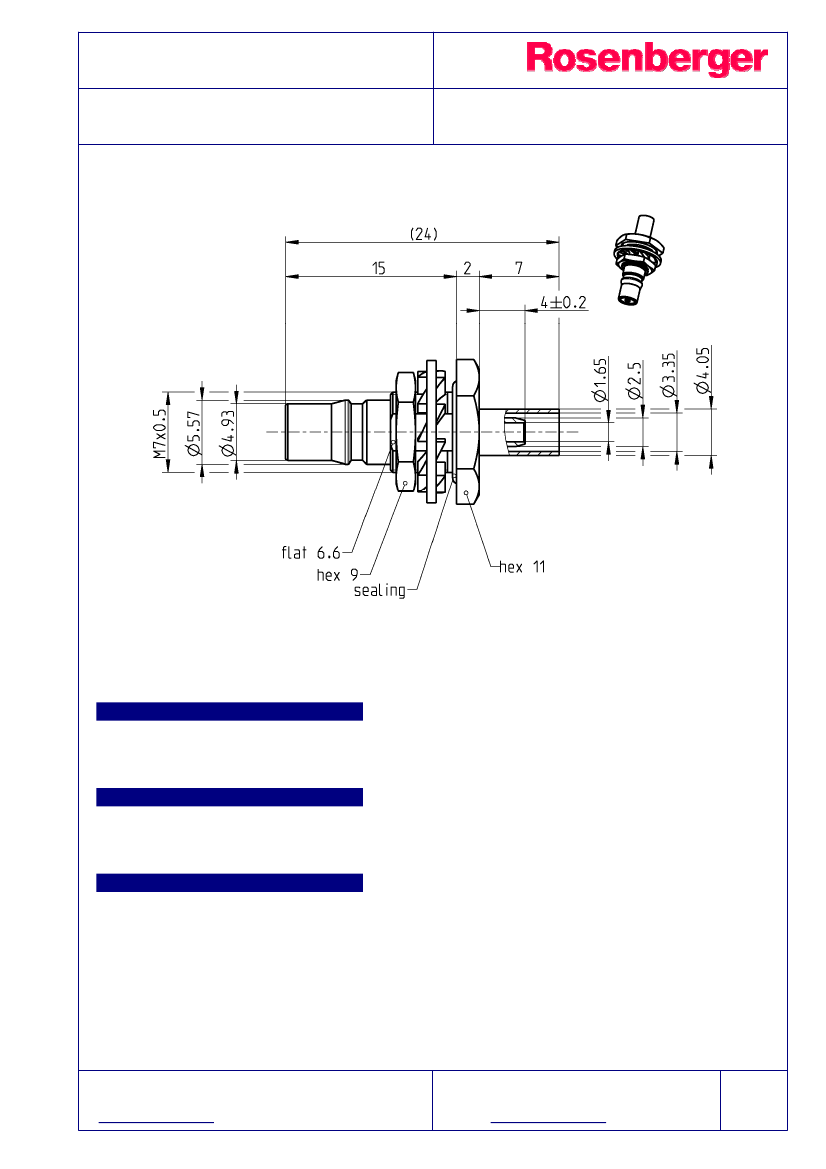

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
Rosenberger 28K000-000, series QMA
Rosenberger is an authorised QLF manufacturer
Documents
Assembly instruction
Panel piercing
28 D
B 57
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Crimping ferrule
Gasket
RF_35/12.04/3.0
Material
Beryllium copper
Brass
Brass
PTFE
Copper
Silicone
Plating
AuroDur, gold plated
White bronze(e.g. Optalloy®)
White bronze(e.g. Optalloy®)
Flash white bronze over silver(e.g. Optargen®)
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
QMA
BULKHEAD JACK
28K607-303N5
50
DC to 18 GHz
30 dB, DC to 3 GHz
26 dB, 3 to 6 GHz
0.05 x
f(GHz)
dB, DC to 6 GHz
5 x10
3
M
3 m
2.5 m
750 V rms
350 V rms
95 dB up to 2 GHz
80 dB up to 4 GHz
70 dB up to 6 GHz
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage, at sea level, 50Hz
Working voltage, at sea level, 50Hz
RF-leakage
- Limitations are possible due to the used cable type –
Mechanical data
Mating cycles
Center contact captivation: axial
Engagement force
Disengagement force
Retention force for interface
min. 100
20 N
typ. 25 N
typ. 20 N
60 N min.
-40°C to +85°C
-40°C to +85°C
IEC 60169-1 16.4 (-40 / +85°C)
IEC 60169-1 16.7 (48 hrs)
IEC 60068-2-64 random
IEC 60169-1 16.3 (96 hrs)
compliant
11W150-000
11W150-102
RG 316 /U-d, K02252d
Environmental data
Temperature range
Storage temperature
Thermal shock
Corrosion
Vibration
Damp heat, steady state
RoHS
Tooling
Crimping tool
Crimp insert
Suitable cables
Weight
Weight
5.0 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
05/10/04
Approved
Sa. Krautenbacher
Date
13.03.14
Rev.
e00
Engineering change number
14-0352
Name
T. Krojer
Date
13.03.14
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
