59S2DA-40MT5-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 59S2DA-40MT5-H

59S2DA-40MT5-H: DescriptionRF Connectors / Coaxial Connectors R/A Plug PCB w/Housing Violett; CategoryThe connector; File Size350KB，3 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

59S2DA-40MT5-H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59S2DA-40MT5-H	-	-	View	Buy Now

59S2DA-40MT5-H Overview

RF Connectors / Coaxial Connectors R/A Plug PCB w/Housing Violett

59S2DA-40MT5-H Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Rosenberger
Product Category	RF Connectors / Coaxial Connectors
Product	PCB Connectors
RF Series	FAKRA
Gender	Plug
Impedance	50 Ohms
Maximum Frequency	6 GHz
Termination Style	PCB - Through Hole
Orientation	Right Angle
Mounting Type	PCB
Body Style	Right Angle
Contact Plating	Gold
Contact Termination	-
Contact Type	Pin (Male)
Voltage Rating	335 V
Contact Material	Brass
Insulation Resistance	1000 MOhms
Mating Cycles	25
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	300

Preview

Download Datasheet

View All

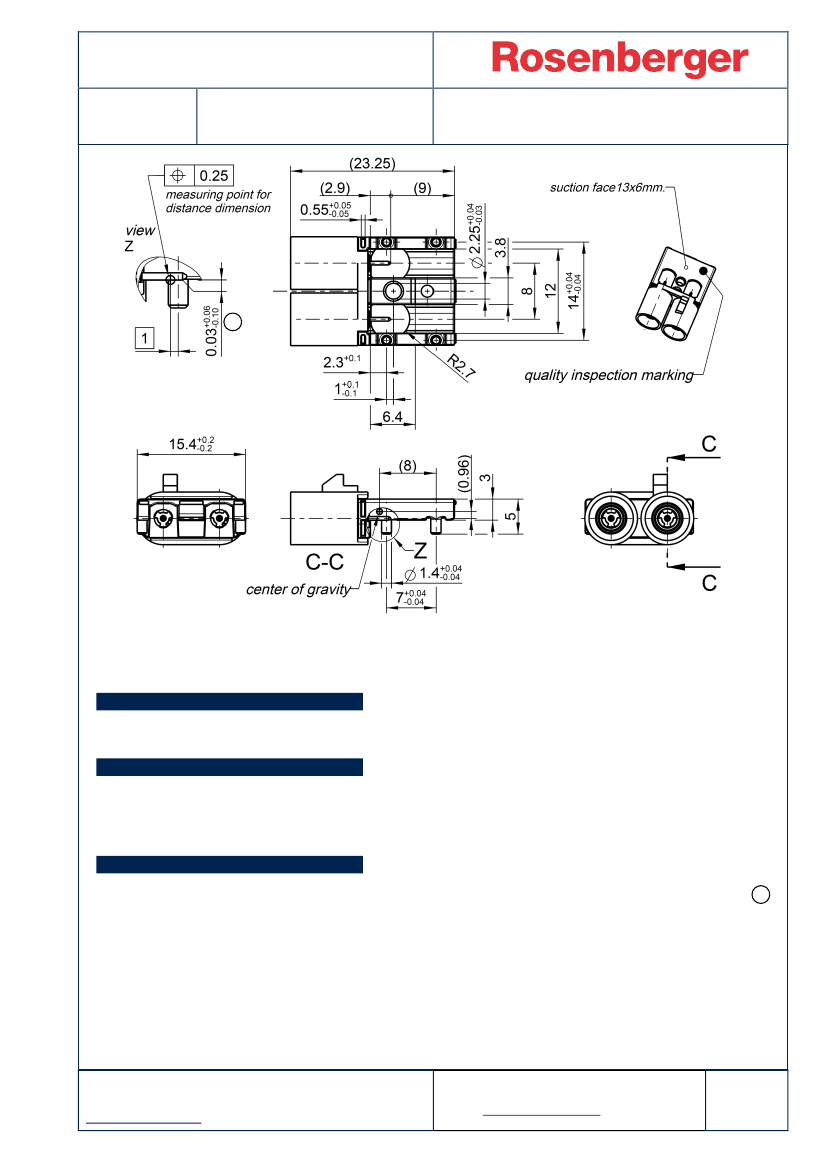

Technical Data Sheet

FAKRA – HF

PLUG FOR PCB

59S2DA-40MT5-Y

Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

DIN 72594-1

Documents

Assembly instruction

PCB layout

Tape & reel packaging

MA_59V048

MB_182

VG118.30000

Material and plating

Connector parts

Center contact

Outer contact

Dielectric

Housing

Material

Brass

Zinc alloy

PA 6T/66

Plating

AuroDur®, gold plated

Tin 2 µm min., over Nickel 1 µm min.

RF_35/09.14/6.2

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Email : info@rosenberger.de

Page

1/3

59S2DA-40MT5-H Related Products

	59S2DA-40MT5-H	59S2DA-40MT5-K	59S2DA-40MT5-Z
Description	RF Connectors / Coaxial Connectors R/A Plug PCB w/Housing Violett	RF Connectors / Coaxial Connectors R/A Plug PCB w/Housing Curry	RF Connectors / Coaxial Connectors R/A Plug PCB w/Housing Water Blue
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Rosenberger	Rosenberger	Rosenberger
Product Category	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors
Product	PCB Connectors	PCB Connectors	PCB Connectors
RF Series	FAKRA	FAKRA	FAKRA
Gender	Plug	Plug	Plug
Impedance	50 Ohms	50 Ohms	50 Ohms
Maximum Frequency	6 GHz	6 GHz	6 GHz
Termination Style	PCB - Through Hole	PCB - Through Hole	PCB - Through Hole
Orientation	Right Angle	Right Angle	Right Angle
Mounting Type	PCB	PCB	PCB
Body Style	Right Angle	Right Angle	Right Angle
Contact Plating	Gold	Gold	Gold
Contact Type	Pin (Male)	Pin (Male)	Pin (Male)
Voltage Rating	335 V	335 V	335 V
Contact Material	Brass	Brass	Brass
Insulation Resistance	1000 MOhms	1000 MOhms	1000 MOhms
Mating Cycles	25	25	25
Maximum Operating Temperature	+ 105 C	+ 105 C	+ 105 C
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C
Factory Pack Quantity	300	300	300
