8A-05PMMS-SH7001: DescriptionCircular Metric Connectors M8 CONN WITH KEY PNL SCRW 5PIN M CONN; CategoryThe connector; File Size222KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8A-05PMMS-SH7001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8A-05PMMS-SH7001	-	-	View	Buy Now

8A-05PMMS-SH7001 Overview

Circular Metric Connectors M8 CONN WITH KEY PNL SCRW 5PIN M CONN

8A-05PMMS-SH7001 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	Circular Metric Connectors
Number of Contacts	5 Contact
Thread Size	M8
Termination Style	Solder Cup
Current Rating	1.5 A
IP Rating	IP67
Body Style	Straight
Contact Plating	Gold
Description/Function	M8 With Key Male Connector
Gender	Male
Housing Material	Nylon
Length	20.5 mm
Shell Style	Plug
Shielding	Unshielded
Mounting Style	Panel
Contact Gender	Pin (Male)
Insert / Contact Gender	Pin
Factory Pack Quantity	1

Preview

Download Datasheet

View All

1

2

3

4

REV.

5

ECN NO.

6

DATE

SIGN

7

DESCRIPTION

8

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A

F

QC

12.0 (HEX)

QC

2.5

QC

20.5

QC

10.0 (HEX)

8.5

13.9 (REF.)

QC

7.00

E

M8*0.5

M8*1.0

D

T

A

L

W

CONFIDENTIAL

11.5 (REF.)

QC

6.90

PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY

2013-10-22

R&D DEPT.

C

With Liquid Glue

3

1

Connector

7.1

+0.1

0

Screw Nut

5

4 O-Ring

2

Shield

Note:

* Important Dimension.

QC

* Waterproof Rate: IP67.

* Housing: Nylon+GF, Black.

* Male Pin: Copper Alloy, Gold Plated.

* Shield: Zinc Alloy, Nickel Plated.

* Screw Nut: Copper Alloy, Nickel Plated.

* O-Ring: EPDM, Black.

* For Panel Thickness Max 3.5mm.

* Nut Torque: 4~6 kgf.cm.

5

1

3

8.1

B

4

2

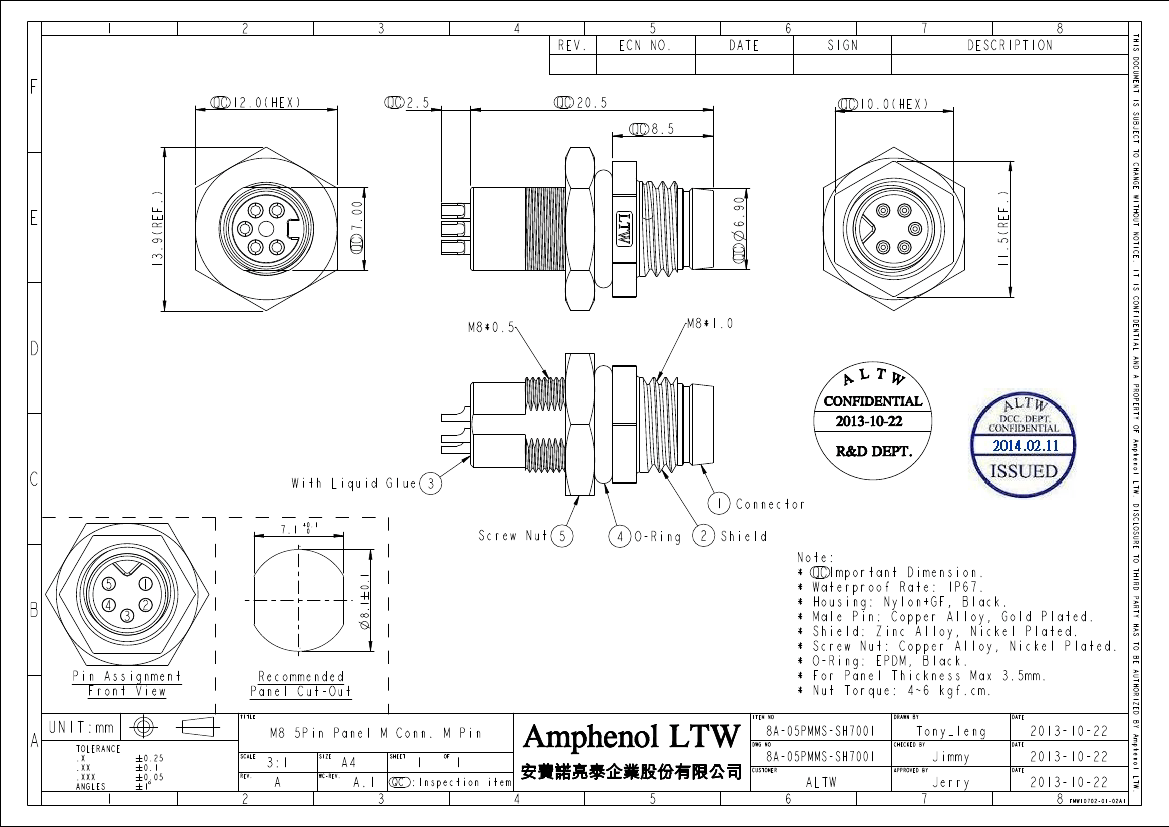

Pin Assignment
