74LS42DC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74LS42DC

74LS42DC: DescriptionDecimal Decoder/Driver, TTL, CDIP16,; Categorylogic; File Size90KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

74LS42DC Overview

Decimal Decoder/Driver, TTL, CDIP16,

74LS42DC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	DECIMAL DECODER/DRIVER
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

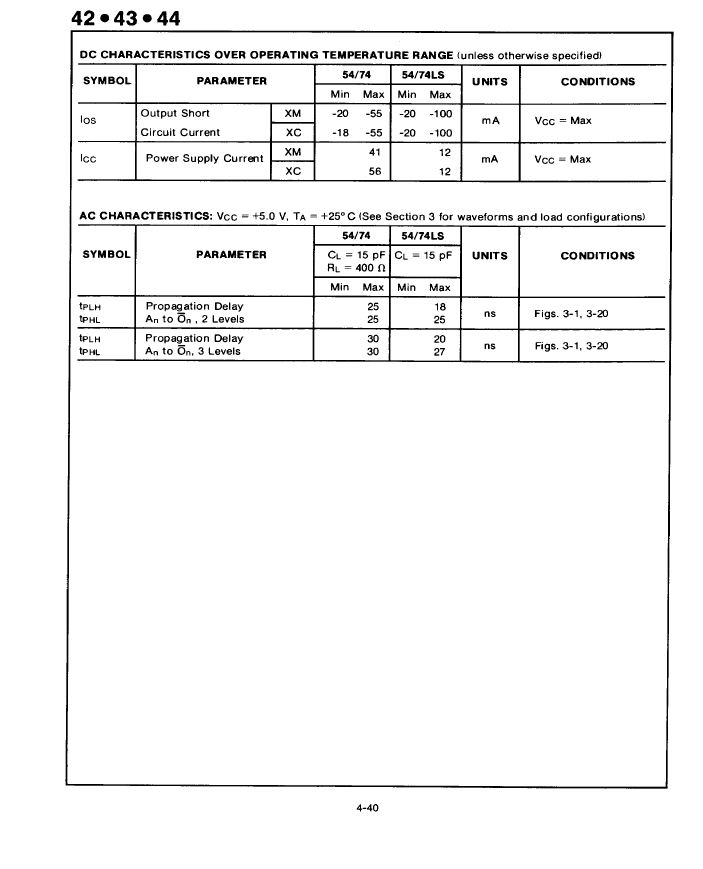

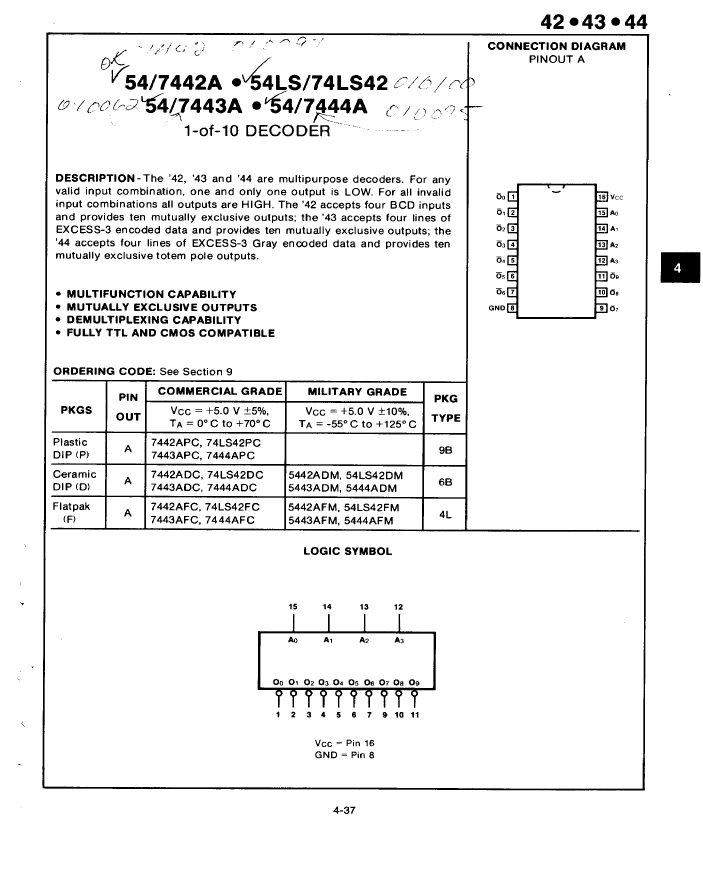

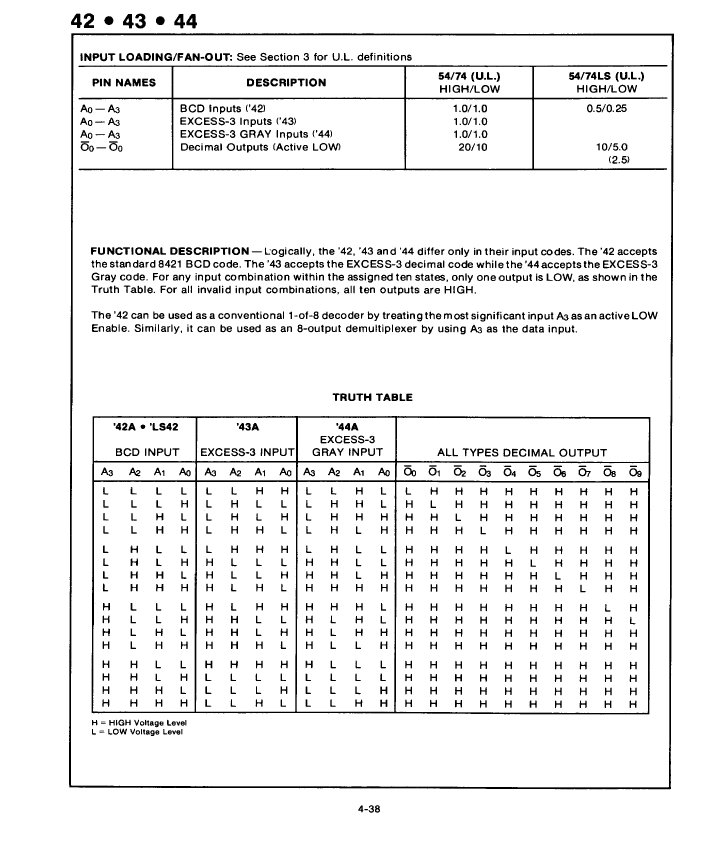

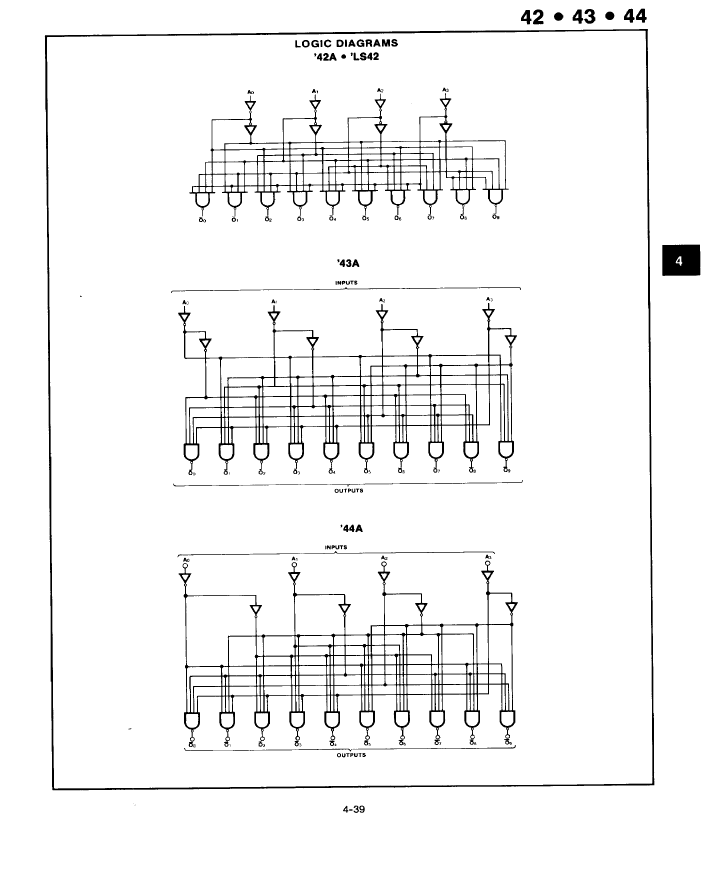

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

74LS42DC Related Products

	74LS42DC	54LS42DM	5442ADM	WBDDSS4-A-01-2803-F-B	5442AFM	74LS42PC	7442AFC	7442ADC	7442APC	74LS42FC
Description	Decimal Decoder/Driver, TTL, CDIP16,	Decimal Decoder/Driver, LS Series, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16	Decimal Decoder/Driver, TTL, CDIP16,	Array/Network Resistor, Isolated, 0.1W, 280000ohm, 100V, 1% +/-Tol, -100,100ppm/Cel, 0707,	Decimal Decoder/Driver, TTL, CDFP16,	Decimal Decoder/Driver, TTL, PDIP16,	Decimal Decoder/Driver, TTL, CDFP16,	Decimal Decoder/Driver, TTL, CDIP16,	Decimal Decoder/Driver, TTL, PDIP16,	Decimal Decoder/Driver, TTL, CDFP16,
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	unknown	compliant	compliant	unknown	compliant
Number of terminals	16	16	16	8	16	16	16	16	16	16
Maximum operating temperature	70 °C	125 °C	125 °C	150 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package form	IN-LINE	IN-LINE	IN-LINE	SMT	FLATPACK	IN-LINE	FLATPACK	IN-LINE	IN-LINE	FLATPACK
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	-	Fairchild	Fairchild	-	Fairchild	Fairchild	Fairchild
JESD-30 code	R-XDIP-T16	R-GDIP-T16	R-XDIP-T16	-	R-XDFP-F16	R-PDIP-T16	R-XDFP-F16	R-XDIP-T16	R-PDIP-T16	R-XDFP-F16
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	DECIMAL DECODER/DRIVER	DECIMAL DECODER/DRIVER	DECIMAL DECODER/DRIVER	-	DECIMAL DECODER/DRIVER	DECIMAL DECODER/DRIVER	DECIMAL DECODER/DRIVER	DECIMAL DECODER/DRIVER	DECIMAL DECODER/DRIVER	DECIMAL DECODER/DRIVER
Number of functions	1	1	1	-	1	1	1	1	1	1
Package body material	CERAMIC	CERAMIC, GLASS-SEALED	CERAMIC	-	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	-	DFP	DIP	DFP	DIP	DIP	DFP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	-	FL16,.3	DIP16,.3	FL16,.3	DIP16,.3	DIP16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
power supply	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	-	YES	NO	YES	NO	NO	YES
technology	TTL	TTL	TTL	-	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	MILITARY	-	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	-	1	1	1	-	-	-
