Ferrites and accessories
EFD 30/15/9
Core and accessories
Series/Type:
Date:
B66423, B66424
May 2017
EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
EFD 30/15/9
Core
■
E core with flattened, lower center leg
B66423
for especially flat transformer design
■
For DC/DC converters
■
Delivery mode: single units
Magnetic characteristics
(per set)
Σl/A
l
e
A
e
A
min
V
e
= 0.99 mm
–1
= 68 mm
= 69 mm
2
= 69 mm
2
= 4690 mm
3
Approx. weight
24 g/set
Ungapped
Material
N87
N97
A
L
value
nH
2050 +30/–20%
2150 +30/–20%
μ
e
1610
1690
P
V
W/set
< 2.6 (200 mT, 100 kHz, 100 °C)
< 2.2 (200 mT, 100 kHz, 100 °C)
Ordering code
B66423G0000X187
B66423G0000X197
Other A
L
values/air gaps and materials available on request – see Processing remarks on page 4.
Gapped
(A
L
values/air gaps examples)
Material
N87
A
L
value
nH
160
±10%
250
±10%
315
±10%
μ
e
125
196
246
g
approx. mm
0.71
0.38
0.27
Ordering code
B66423U0160K187
B66423U0250K187
B66423U0315K187
The A
L
value in the table applies to a core set comprising one ungapped core (dimension g = 0 mm)
and one gapped core (dimension g > 0 mm).
Calculation factors
(for formulas, see
“E cores: general information”
)
Material
Relationship between
air gap – A
L
value
K1 (25 °C)
N87
Validity range:
125
K2 (25 °C)
–0.712
Calculation of saturation current
K3 (25 °C)
176
K4 (25 °C)
–0.796
K3 (100 °C) K4 (100 °C)
161
–0.873
K1, K2: 0.10 mm < s < 2.00 mm
K3, K4: 70 nH < A
L
< 630 nH
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
5/17
EFD 30/15/9

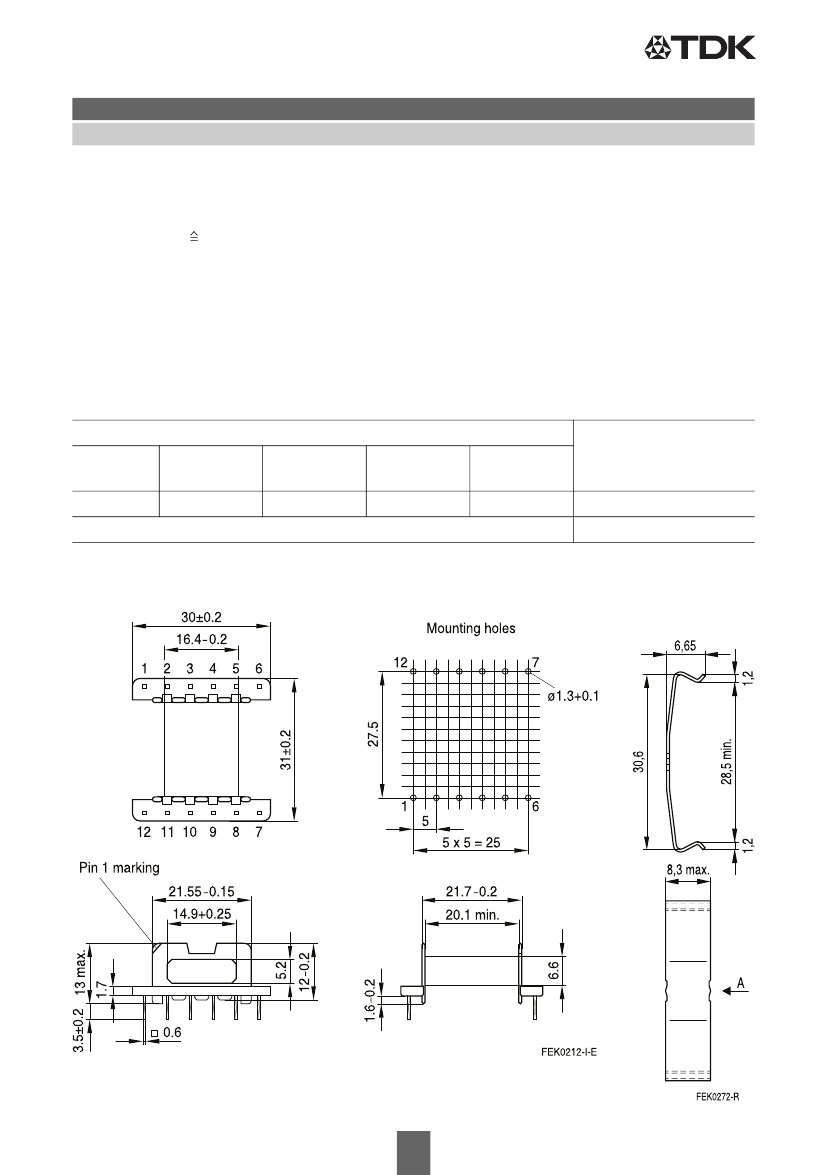

Accessories
Coil former
GFR thermosetting plastic (UL 94 V-0, insulation class to IEC 60085:
F max. operating temperature 155 °C), color code black
Sumikon PM 9630
®
[
E41429 (M)
]
, SUMITOMO BAKELITE CO LTD
Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 °C, 2 s
Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3.5 s
Winding:
see Processing notes, 2.1
Pins:
Squared pins
Yoke
Material:
Coil former
Sections
1
A
N
mm
2
52.3
l
N
mm
56.7
A
R
value
μΩ
37.3
Pins
12
B66424W1012D001
B66424B2000X000
Yoke
View A
B66424
Material:
Stainless spring steel (0.45 mm)
Ordering code
Yoke (ordering code per piece, 2 are required)
Coil former
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
5/17
