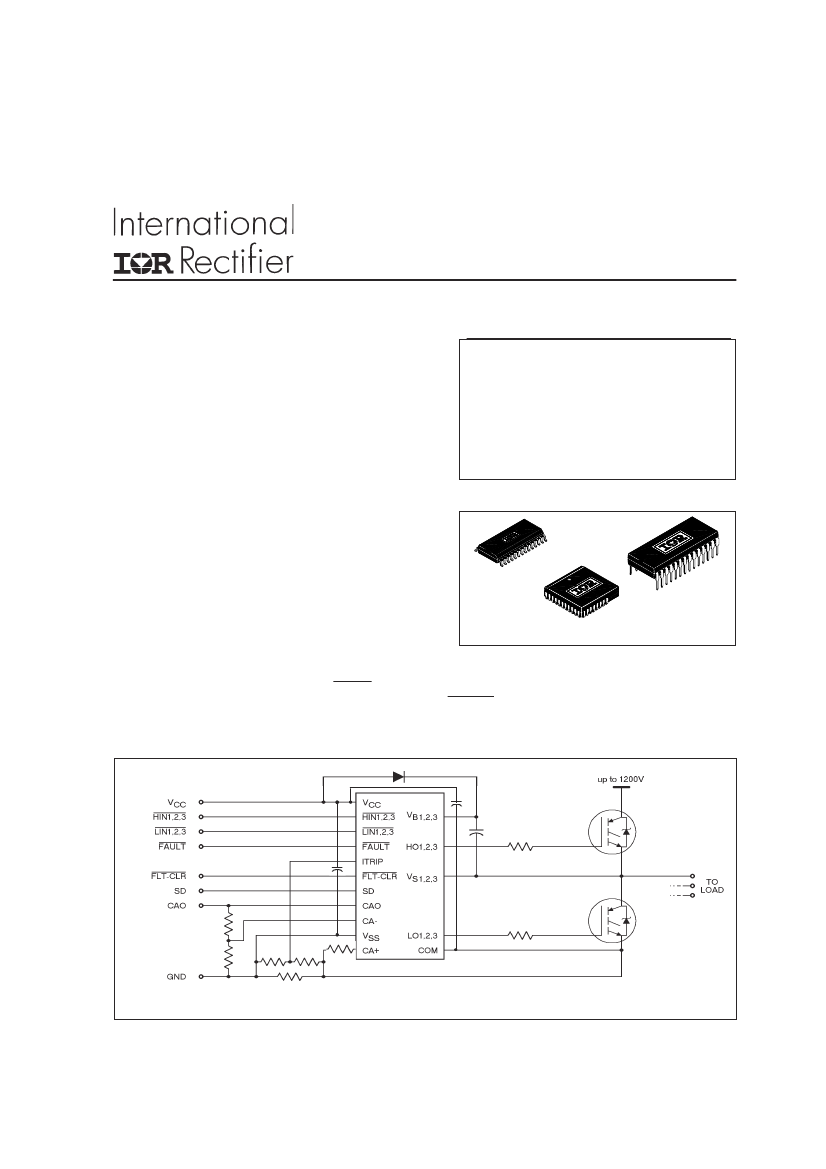

Data Sheet No. PD60107 revU
IR2133/IR2135(J
&
S
) & (PbF)
IR2233
/
IR2235
(
J
&
S
)
3-PHASE BRIDGE DRIVER
Features
•
Floating channel designed for bootstrap operation
Product Summary
V
OFFSET
I
O+/-
V
OUT
t
on/off
(typ.)
Deadtime (typ.)
600V or 1200V max.
200 mA / 420 mA
10 - 20V or 12 - 20V
750/700 ns
250 ns
•
•
•
•
•
•
•
•
Fully operational to +600V or+1200V
Tolerant to negative transient voltage
dV/dt immune
Gate drive supply range from 10V/12V to 20V DC and
up to 25V for transient
Undervoltage lockout for all channels
Over-current shut down turns off all six drivers
Independent 3 half-bridge drivers
Matched propagation delay for all channels
2.5V logic compatible
Outputs out of phase with inputs
Also available LEAD-FREE
Packages
Description
The IR2133IR2135/IR2233IR2355 (J&S) are high voltage, high
speed power MOSFET and IGBT driver with three independent
28-Lead SOIC
high side and low side referenced output channels for 3-phase
28-Lead PDIP
applications. Proprietary HVIC technology enables ruggedized
monolithic construction. Logic inputs are compatible with CMOS
44-Lead PLCC w/o 12 leads
or LSTTL outputs, down to 2.5V logic. An independent opera-
tional amplifier provides an analog feedback of bridge current via an external current sense resistor. A current trip
function which terminates all six outputs can also be derived from this resistor. A shutdown function is available to
terminate all six outputs. An open drain FAULT signal is provided to indicate that an over-current or undervoltage
shutdown has occurred. Fault conditions are cleared with the FLT-CLR lead. The output drivers feature a high pulse
current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in
high frequency applications. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the
high side configuration which operates up to 600 volts or 1200 volts.
Typical Connection
up to 600V or 1200V
(Refer to Lead Assignments for correct pin configuration). This/These diagram(s) show electrical connections only.
Please refer to our Application Notes and DesignTips for proper circuit board layout.
www.irf.com
1
IR2133/IR2135/IR2233
/
IR2235(J
&
S
) & (PbF)
Absolute Maximum Ratings
Absolute Maximum Ratings indicate sustained limits beyond which damage to the device may occur. All volt-
age parameters are absolute voltages referenced to COM. The Thermal Resistance and Power Dissipation
ratings are measured under board mounted and still air conditions.
Symbol
V
B1,2,3
V
S1,2,3
V
HO1,2,3
V
CC
V
SS
V
LO1,2,3
V
IN
Definition
High side floating supply voltage
(IR2133/IR2135)
(IR2233/IR2235)
High side floating supply offset voltage
High side floating output voltage
Fixed supply voltage
Logic ground
Low side output voltage
Logic input voltage (HIN, LIN, ITRIP, SD & FLT-CLR)
Min.
-0.3
-0.3
V
B1,2,3
- 25
V
S1,2,3
- 0.3
-0.3
V
CC
- 25
-0.3
V
SS
- 0.3
Max.
625
1225
V
B1,2,3
+ 0.3
V
B1,2,3
+ 0.3
25
V
CC
+ 0.3
V
CC
+ 0.3
(V
SS
+ 15) or
(V
CC
+ 0.3)
whichever is
lower
V
CC
+ 0.3
V
CC
+ 0.3
V
CC
+ 0.3
50
1.5
1.6
2.0
83
78
63
125
150
300
Units
V
V
IN,AMP
V
OUT,AMP
V
FLT
dV
S
/dt
P
D
Rth
JA
T
J
T
S
T
L
Op amp input voltage (CA+ & CA-)
Op amp output voltage (CAO)
FAULT output voltage
Allowable offset supply voltage transient
Package power dissipation @ T
A
≤
25ºC (28 Lead PDIP)
(28 Lead SOIC)
(44 lead PLCC)
Thermal resistance, junction to ambient (28 Lead PDIP)
(28 Lead SOIC)
(44 lead PLCC)
Junction temperature
Storage temperature
Lead temperature (soldering, 10 seconds
V
SS
- 0.3
V
SS
- 0.3
V
SS
- 0.3
—
—
—
—
—
—
—
—
-55
—
V/ns
W
ºC/W
ºC
Recommended Operating Conditions
The input/output logic timing diagram is shown in figure 1. For proper operation the device should be used within the
recommended conditions. All voltage parameters are absolute voltages referenced to COM. The VS offset rating is
tested with all supplies biased at 15V differential.
Symbol Parameter Definition
V
B1,2,3
V
S1,2,3
V
HO1,2,3
V
CC
V
SS
V
LO1,2,3
V
IN
V
IN,AMP
V
OUT,AMP
V
FLT
High side floating supply voltage
High side floating supply offset voltage (IR2133/IR2135)
(IR2233/IR2235)
High side floating output voltage
Fixed supply voltage
Low side driver return
Low side output voltage
Logic input voltage (HIN, LIN, ITRIP, SD & FLT-CLR)
Op amp input voltage (CA+ & CA-)
Op amp output voltage (CAO)
FAULT output voltage
Min.
Max.
Units
V
S1,2,3
+ 10/12 V
S1,2,3
+ 20
Note 1
600
Note 1
1200
V
S1,2,3
V
B1,2,3
10 or 12
20
-5
5
0
V
CC
V
SS
V
SS
+ 5
V
SS
V
SS
+ 5
V
SS
V
SS
+ 5
V
SS
V
CC
V
Note 1:
Logic operational for VS of COM - 5V to COM + 600V/1200V. Logic state held for V S of COM -5V to COM -VBS. (Please refer to the Design Tip
DT97-3 for more details).
Note 2:
All input pins, op amp input and output pins are internally clamped with a 5.2V zener diode.
2
www.irf.com
IR2133/IR2135/IR2233
/
IR2235(J
&
S
) & (PbF)
Dynamic Electrical Characteristics
V
BIAS (
V
CC,
V
BS1,2,3)
= 15V, V
S1,2,3
=
V
SS
,
T
A
= 25
o
C
and
C
L
= 1000
p
F unless otherwise specified.
Symbol
ton
toff
tr
tf
t sd
titrip
tbl
t flt
tfil,in
t fltclr
DT
SR+
SR-
Definition
Turn-on propagation delay
Turn-off propagation delay
Turn-on rise time
Turn-off fall time
SD to output shutdown propagation delay
ITRIP to output shutdown propagation delay
ITRIP blanking time
ITRIP to FAULT propagation delay
Input filter time (HIN, LIN and SD)
FLT-CLR to FAULT clear time
Deadtime, LS turn-off to HS turn-on &
HS turn-off to LS turn-on
Amplifier slew rate (positive)
Amplifier slew rate (negative)
Min. Typ. Max. Units Test Conditions
500
450
—
—
500
600
—
400
—
600
100
5
2
750
700
90
40
750
850
400
650
310
850
250
10
2.5
1000
950
150
70
1000
1100
—
900
—
1100
400
—
—
V/µs
V
IN
= 0 & 5V
V
S1,2,3
= 0 to 600V
or 1200V
V
IN
,V
SD
= 0 & 5V
V
IN
,V
ITRIP
= 0 & 5V
ITRIP = 1V
V
IN
,V
ITRIP
= 0 & 5V
V
IN
= 0 & 5V
V
IN
,V
ITRIP
= 0 & 5V
V
IN
= 0 & 5V
ns
NOTE:
For high side PWM, HIN pulse width must be
≥ 1µ
sec
Static Electrical Characteristics
V
BIAS
(V
CC,
V
BS1,2,3
) = 15V unless otherwise specified and T
A
= 25
o
C. The V
IN,
V
TH
and I
IN
parameters are
referenced to V
SS
and are applicable to all six channels (H
S1,2,3
& L
S1,2,3
). The VO and IO parameters are
referenced to V
SS
and V
S1,2,3
and are applicable to the respective output leads: H
O1,2,3
or L
O1,2,3.
Symbol
V
IH
V
IL
V
FCLR,IH
V
FCLR,IL
V
SD,TH+
V
SD,TH-
V
IT,TH+
V
IT,TH-
V
OH
V
OL
I
LK
I
QBS
I
QCC
I
IN+
I
IN-
I
SD+
I
SD-
I
ITRIP+
I
ITRIP-
www.irf.com
Definition
Logic “0” Input Voltage (OUT = LO)
Logic “1” Input Voltage (OUT = HI)
Logic “0” Fault Clear Input Voltage
Logic “1” Fault Clear Input Voltage
SD Input Positive Going Threshold
SD Input Negative Going Threshold
I
ITRIP
Input Positive Going Threshold
I
ITRIP
Input Negative Going Threshold
High Level Output Voltage, VBIAS - VO
Low Level Output Voltage, VO
Offset Supply Leakage Current (IR2133/IR2135)
(IR2233/IR2235)
Quiescent VBS Supply Current
Quiescent VCC Supply Current
Logic “1” Input Bias Current (OUT = HI)
Logic “0” Input Bias Current (OUT = LO)
“High” Shutdown Bias Current
“Low” Shutdown Bias Current
“High” I
ITRIP
Bias Current
“Low” I
ITRIP
Bias Current
Min.
2.2
—
2.2
—
1.6
1.4
470
360
—
—
—
—
—
—
—
—
—
—
—
—
Typ. Max. Units
—
—
—
—
1.9
1.7
570
460
—
—
—
—
50
4
200
100
30
—
30
—
—
0.8
—
0.8
2.2
2.0
670
560
100
100
50
50
100
8
350
250
100
100
100
100
Test Conditions
V
mV
µA
mA
µA
nA
µA
nA
V
IN
= 0V, IO = 0A
V
IN
= 5V, IO = 0A
V
B1,2,3
=V
S1,2,3
= 600V
V
B1,2,3
=V
S1,2,3
= 1200V
V
IN
= 0V or 5V
V
IN
= 0V or 5V
V
IN
= 0V
V
IN
= 5V
SD = 5V
SD = 0V
I
ITRIP
= 5V
I
ITRIP
= 0V
3
IR2133/IR2135/IR2233
/
IR2235(J
&
S
) & (PbF)
Static Electrical Characteristics — Continued
V
BIAS
(V
CC
,
V
BS1,2,3
) = 15V and T
A
= 25
o
C unless otherwise specified. The V
IN
,
V
TH
and I
IN
parameters are
referenced to V
SS
and are applicable to all six channels (HS1,2,3 & LS1,2,3). The VO and IO parameters are
referenced to V
SS
and V
S0,1,2,3
and are applicable to the respective output leads: HO or LO.
Symbol Parameter Definition
I
FLTCLR
+ “High” Fault Clear Input Bias Current
I
FLTCLR
- “Low” Fault Clear Input Bias Current
V
BSUV+
V
BS
Supply Undervoltage Positive Going Threshold
(for IR2133/IR2233)
(for IR2135/IR2235)
V
BSUV-
V
BS
Supply Undervoltage Negative Going Threshold
(for IR2133/IR2233)
(for IR2135/IR2235)
V
BSUVH
V
BS
Supply Undervoltage Lockout Hysteresis
(for IR2133/IR2233)
(for IR2135/IR2235)
V
CCUV+
V
CC
Supply Undervoltage Positive Going Threshold
(for IR2133/IR2233)
(for IR2135/IR2235)
V
CCUV-
V
CC
Supply Undervoltage Negative Going Threshold
(for IR2133/IR2233)
(for IR2135/IR2235)
V
CCUVH
V
CC
Supply Undervoltage Lockout Hysteresis
(for IR2133/IR2233)
(for IR2135/IR2235)
R
on,FLT
I
O+
I
O-
V
OS
I
IN,AMP
CMRR
PSRR
FAULT- Low On Resistance
Output High Short Circuit Pulsed Current
Output Low Short Circuit Pulsed Current
Amplifier Input Offset Voltage
Amplifier Input Bias Current
Amplifier Common Mode Rejection Ratio
Amplifier Power Supply Rejection Ratio
—
—
—
190
380
—
—
50
50
5
—
4
0.5
—
—
0.4
1
70
250
500
0
—
70
70
5.2
—
7
1
10
4
—
—
100
—
—
30
4
—
—
5.4
20
—
—
—
—
mA
dB
V
mV
mA
Ω
V
OUT
= 0V, V
IN
= 0V
PW
≤
10
µ
s
V
OUT
= 15V, V
IN
= 5V
PW
≤
10
µ
s
CA+=0.2V, CA-=CAO
CA+ = CA- = 2.5V
CA+ = 0.1V & 5V, CA- = CAO
CA+=0.2V, CA-=CAO
V
CC
= 10V & 20V
CA+ = 1V, CA- = 0V
CA+ = 0V, CA- = 1V
CA+ = 1V, CA- = 0V, CAO = 4V
CA+ = 0V, CA- = 1V, CAO = 2V
CA+ = 5V, CA- = 0V, CAO = 0V
CA+ = 0V, CA- = 5V, CAO = 5V
www.irf.com
7.2
8.3
8.2
9.4
9.2
10.5
7.6
9.2
8.6
10.4
9.6
11.6
—
—
0.4
1
—
—
V
7.2
8.3
8.2
9.4
9.2
10.5
7.6
9.2
8.6
10.4
9.6
11.6
Min. Typ. Max. Units Test Conditions
—
—
200
100
350
250
µA
FLT-CLR = 0V
FLT-CLR = 5V
mV
nA
V
OH,Amp
Amplifier High Level Output Voltage
V
OL,Amp
Amplifier Low Level Output Voltage
I
SRC,Amp
Amplifier Output Source Current
I
SNK,Amp
Amplifier Output Sink Current
I
O+,Amp
I
O-,Amp
4
Amplifier Output High Short Circuit Current
Amplifier Output Low Short Circuit Current
IR2133/IR2135/IR2233
/
IR2235(J
&
S
) & (PbF)

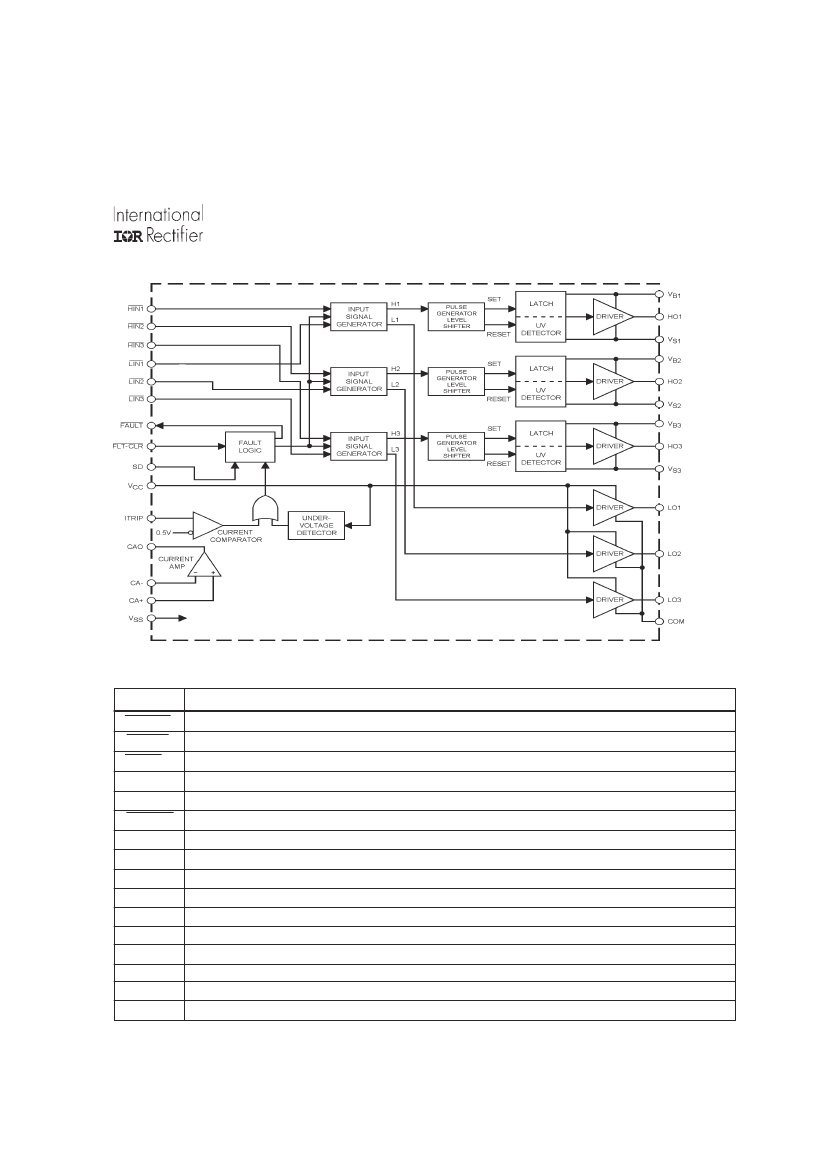

Functional Block Diagram
Lead Definitions
Symbol
HIN1,2,3
LIN1,2,3
FAULT
V
CC
ITRIP
FLT-CLR
SD
CAO
CA-
CA+
V
SS
COM
V
B1,2,3
HO1,2,3
V
S1,2,3
LO1,2,3
www.irf.com
Lead Description
Logic inputs for high side gate driver outputs (HO1,2,3), out of phase.
Logic inputs for low side gate driver outputs (LO1,2,3), out of phase.
Indicates over-current or undervoltage lockout (low side) has occurred, negative logic.
Logic and low side fixed supply.
Input for over-current shut down.
Logic input for fault clear, negative logic.
Logic input for shut down.
Output of current amplifier.
Negative input of current amplifier.
Positive input of current amplifier.
Logic ground.
Low side return.
High side floating supplies.
High side gate drive outputs.
High side floating supply returns.
Low side gate drive outputs
5
京公网安备 11010802033920号
EEWORLD
