053041 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 053041

053041: DescriptionD Subminiature Connector, 9 Contact(s), Male, Solder Terminal, M3, Receptacle,; CategoryThe connector The connector; File Size171KB，14 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

053041 Overview

D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, M3, Receptacle,

053041 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3
body width	0.492 inch
subject depth	0.216 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Mixed contacts	NO
Installation option 1	M3
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell material	METAL
Housing size	1/E
Terminal length	0.236 inch
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1

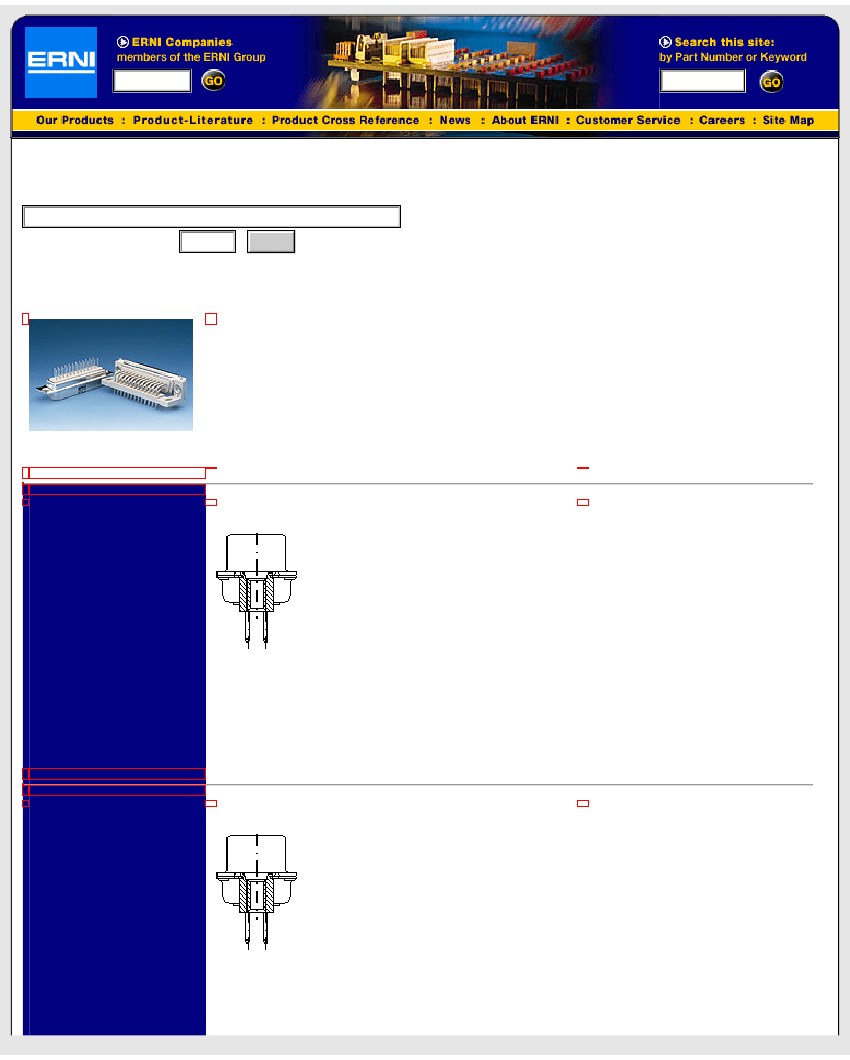

Preview

Download Datasheet

View All

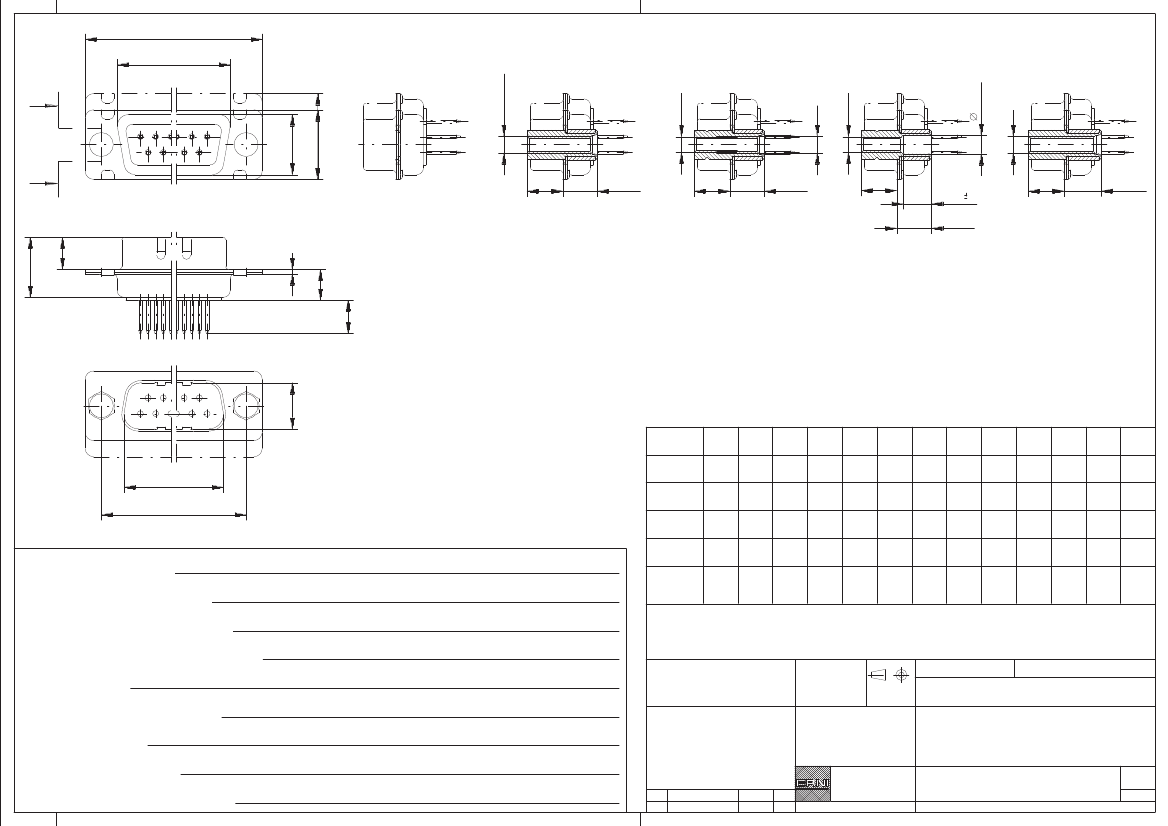

Schnitt A-A

/ cross section A-A

M3 oder/

+0,2

or #4-40

#4-40

3,3

6,4

6,3

-0,3

6,4

6,3

-0,3

6,4

5,2

0,2

6,4

6,3

-0,3

6,8

-0,3

5,5

a : Anschlußlänge beliebig von 3 bis 6 mm; Toleranz

±0.3

a : terminal length from 3 to 6 mm; tolerance

±0.3

30.8

39.1

53.0

69.3

67.0

16.8

25.1

38.9

55.3

52.7

25.0

33.3

47.0

63.5

61.1

8.3

11.0

12.5

15.4

10.8

5.8

19.3

27.5

41.3

57.7

55.3

10.8

13.6

0.8

0.9

Zubehör: Gewindebolzen/Hülse

accessories: threaded bolt/sleeve

Polzahl/

No. of

contacts

Ident-Nr. /

Polzahl /

Part No. :

Refer to table on page 2

Straight soldering

6.0 mm

±0.3

+0.2

±0.2

+0.2

±0.3

±0.2

+0.3

±0.3

±0.2

±0.1

No. of contacts :

Terminal Type :

Anschlußart /

Anschlußlänge /

Bauart /

Type :

Fehlende Masse und Angaben siehe DIN 41652 /

Sonstige Angaben siehe Fertigungsunterlagen /

Information:

Tolerances

Missing information and dimensions according to DIN 41652

Additional indications please see the production documentation

Scale

All Dimensions

in mm

Terminal Length :

2:1

Consider protection memo from DIN 34

Anforderungsstufe /

Aufdruck /

Zubehör /

Logo :

Class :

ERNI

207=0.8µm (30

µin)

Au CONTACT, TIN/LEAD TERMINAL

Accessory :

Refer to table on page 2

Special :

Refer to table on page 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

TMC-P 9 bis 50-TL-3.0 bis 6.0

TMC-P 9 bis 50-TL-3.0 to 6.0

Elektroapparate GmbH

D-73099 ADELBERG

M:00022919.SZN

Sonderausführung /

Index

05.09.2000

Date

054948

TMCP

053041 Related Products

	053041	024730	024734	053045
Description	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, M3, Receptacle,	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 50 Contact(s), Male, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 50 Contact(s), Male, Solder Terminal, M3, Receptacle,
Reach Compliance Code	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3
body width	0.492 inch	0.492 inch	0.606 inch	0.606 inch
subject depth	0.216 inch	0.216 inch	0.216 inch	0.216 inch
body length	1.213 inch	1.213 inch	2.638 inch	2.638 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU
Contact completed and terminated	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD
Contact point gender	MALE	MALE	MALE	MALE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation option 1	M3	#4-40	#4-40	M3
Installation option 2	THREADED	THREADED	THREADED	THREADED
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	3	3	3	3
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	30u inch	30u inch	30u inch
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	METAL	METAL	METAL	METAL
Housing size	1/E	1/E	5/D	5/D
Terminal length	0.236 inch	0.236 inch	0.236 inch	0.236 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	9	50	50
Maker	-	ERNI	ERNI	ERNI
