5962-9555701QXX datasheet, PDF

Datasheet> All Categories > Programmable logic> Programmable logic devices> 5962-9555701QXX

5962-9555701QXX: DescriptionFlash PLD, CMOS, CPGA160, CERAMIC, PGA-160; CategoryProgrammable logic Programmable logic devices; File Size266KB，12 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-9555701QXX Overview

Flash PLD, CMOS, CPGA160, CERAMIC, PGA-160

5962-9555701QXX Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	PGA
package instruction	PGA,
Contacts	160
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
JESD-30 code	R-CPGA-P160
JESD-609 code	e4
Dedicated input times	2
Number of I/O lines	128
Number of terminals	160
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2 DEDICATED INPUTS, 128 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
Programmable logic type	FLASH PLD
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
Base Number Matches	1

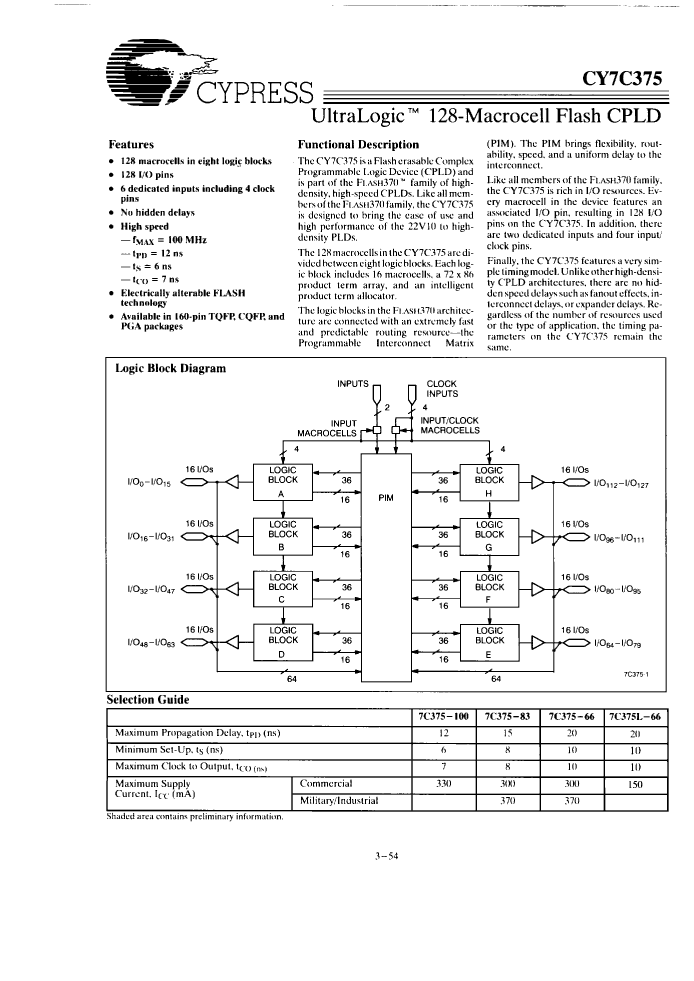

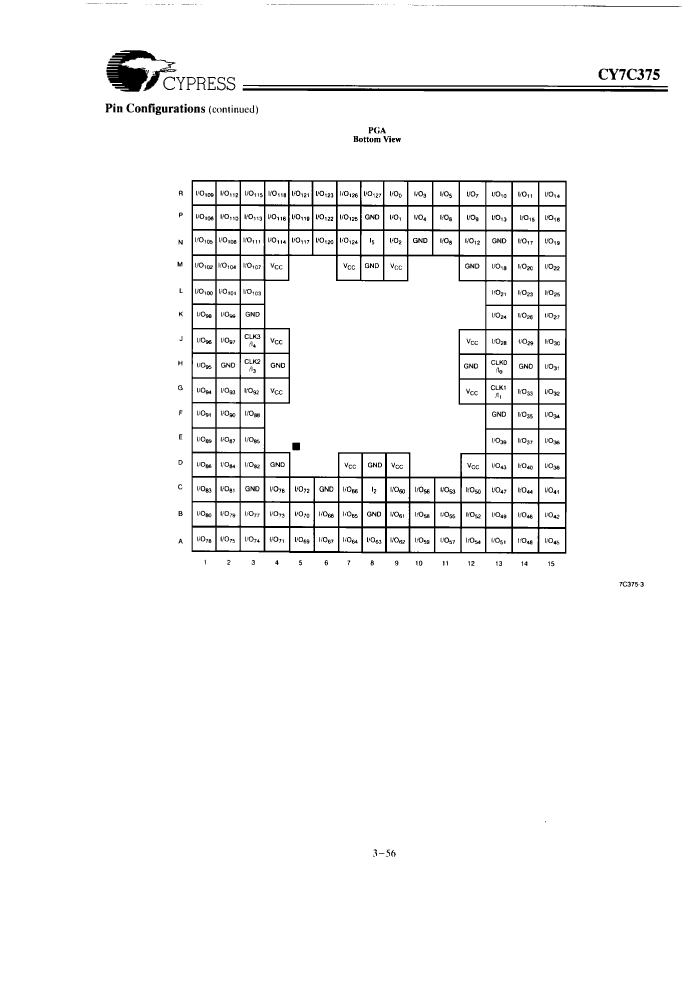

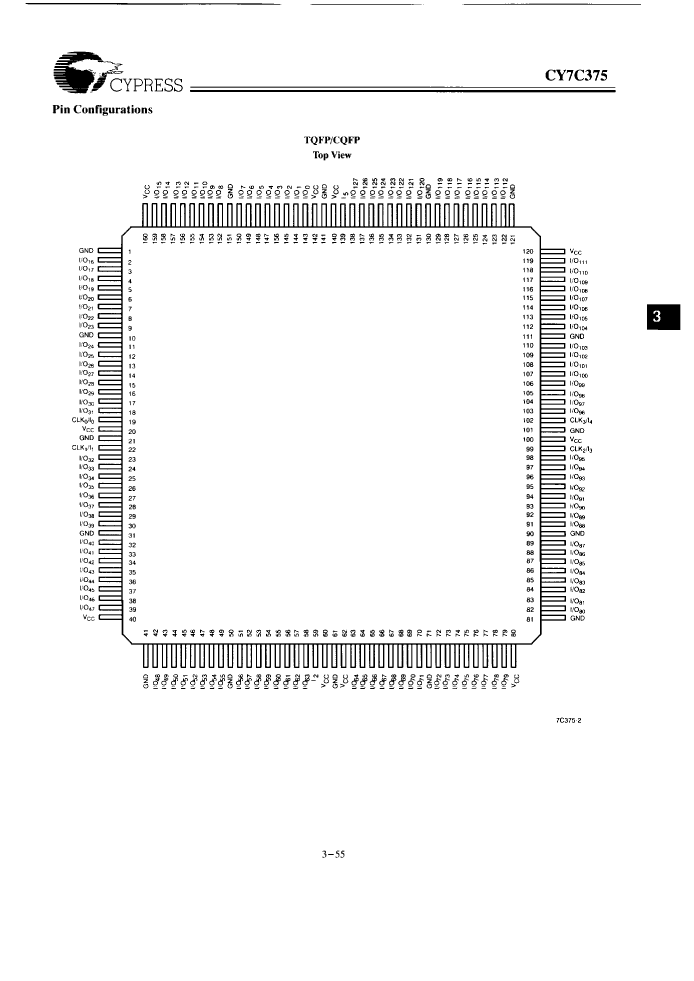

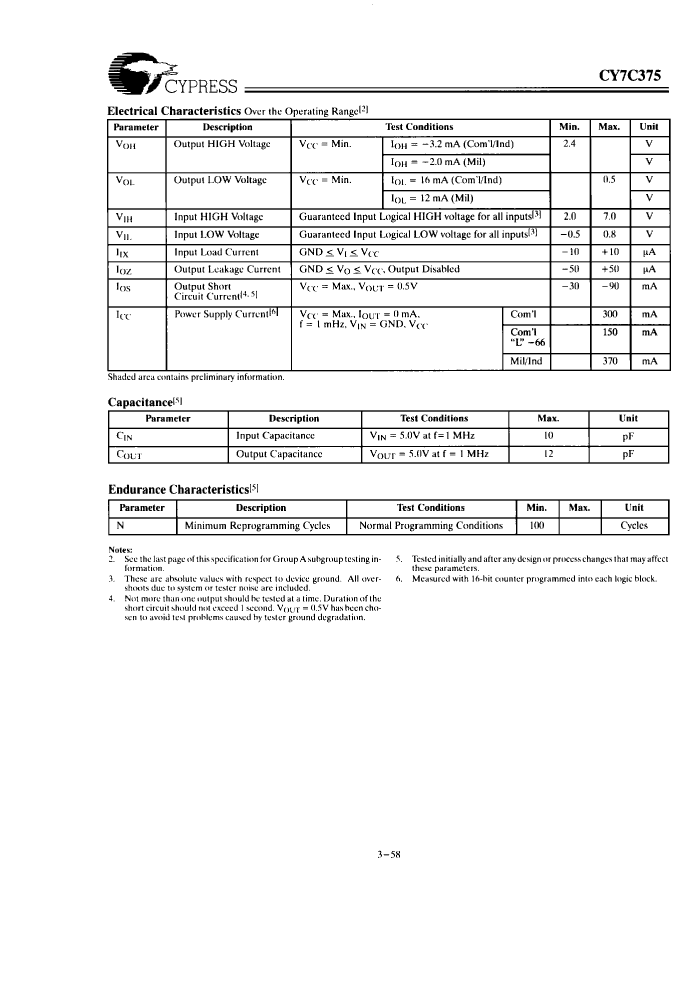

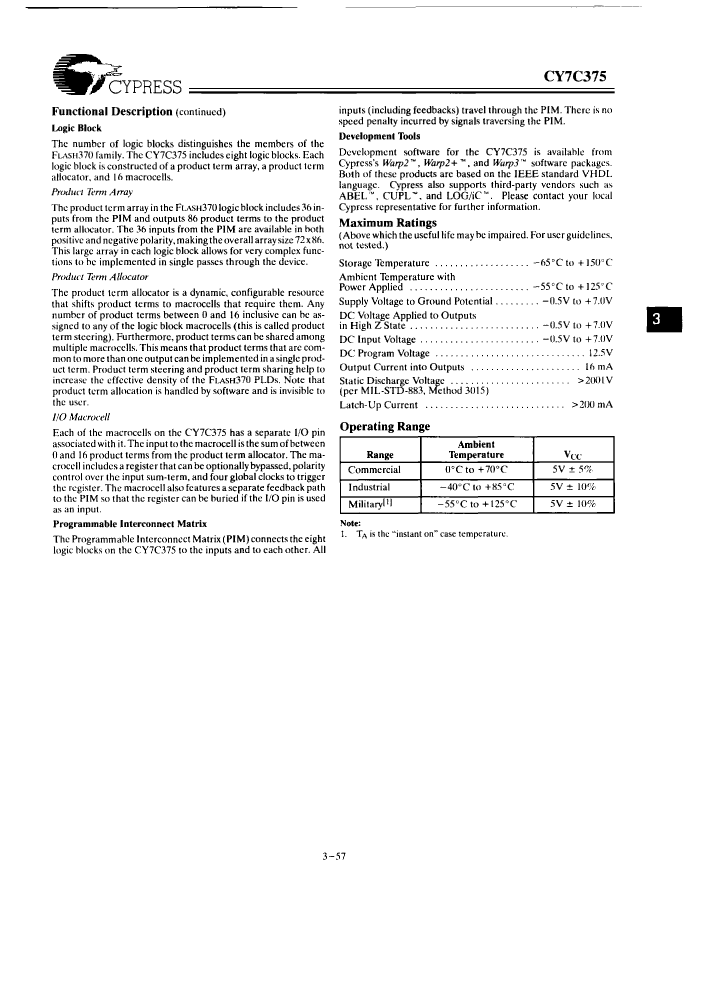

Preview

Download Datasheet

View All

5962-9555701QXX Related Products

	5962-9555701QXX	5962-9555701QZX	5962-9555701QYX	5962-9555702QZX	5962-9555702QYX	5962-9555702QXX
Description	Flash PLD, CMOS, CPGA160, CERAMIC, PGA-160	Flash PLD, 20ns, CMOS, CQFP160, QFP-160	Flash PLD, 20ns, CMOS, CQFP160, QFP-160	Flash PLD, 15ns, CMOS, CQFP160, QFP-160	Flash PLD, 15ns, CMOS, CQFP160, QFP-160	Flash PLD, CMOS, CPGA160, CERAMIC, PGA-160
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	PGA	QFP	QFP	QFP	QFP	PGA
package instruction	PGA,	QFP,	GQFF,	QFP,	GQFF,	PGA,
Contacts	160	160	160	160	160	160
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
JESD-30 code	R-CPGA-P160	S-CQFP-G160	S-CQFP-F160	S-CQFP-G160	S-CQFP-F160	R-CPGA-P160
JESD-609 code	e4	e4	e4	e4	e4	e4
Dedicated input times	2	2	2	2	2	2
Number of I/O lines	128	128	128	128	128	128
Number of terminals	160	160	160	160	160	160
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	2 DEDICATED INPUTS, 128 I/O	2 DEDICATED INPUTS, 128 I/O	2 DEDICATED INPUTS, 128 I/O	2 DEDICATED INPUTS, 128 I/O	2 DEDICATED INPUTS, 128 I/O	2 DEDICATED INPUTS, 128 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	QFP	GQFF	QFP	GQFF	PGA
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	GRID ARRAY	FLATPACK	FLATPACK, GUARD RING	FLATPACK	FLATPACK, GUARD RING	GRID ARRAY
Programmable logic type	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Terminal form	PIN/PEG	GULL WING	FLAT	GULL WING	FLAT	PIN/PEG
Terminal location	PERPENDICULAR	QUAD	QUAD	QUAD	QUAD	PERPENDICULAR
Base Number Matches	1	1	1	1	1	-
maximum clock frequency	-	50 MHz	50 MHz	62.5 MHz	62.5 MHz	-
length	-	28 mm	28 mm	28 mm	28 mm	-
propagation delay	-	20 ns	20 ns	15 ns	15 ns	-
Maximum seat height	-	2.79 mm	4.9 mm	2.79 mm	4.9 mm	-
Terminal pitch	-	0.65 mm	0.65 mm	0.65 mm	0.65 mm	-
width	-	28 mm	28 mm	28 mm	28 mm	-
