ASB 2-VAD 1A-1-3-226/1 M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> ASB 2-VAD 1A-1-3-226/1 M

Preview

ASB 2-VAD 1A-1-3-226/1 M: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size657KB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ASB 2-VAD 1A-1-3-226/1 M Overview

Sensor Cables / Actuator Cables

ASB 2-VAD 1A-1-3-226/1 M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
RoHS	Details
Connector End A	M12
Connector End A Pin Count	4 Pin
Connector End B	Valve Connector
Gender	Male / Male
Length	1 m
Current Rating	4 A
Voltage Rating	24 V
Number of Conductors	4 Conductor
Color	Black
Jacket Material	Polyurethane (PUR)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

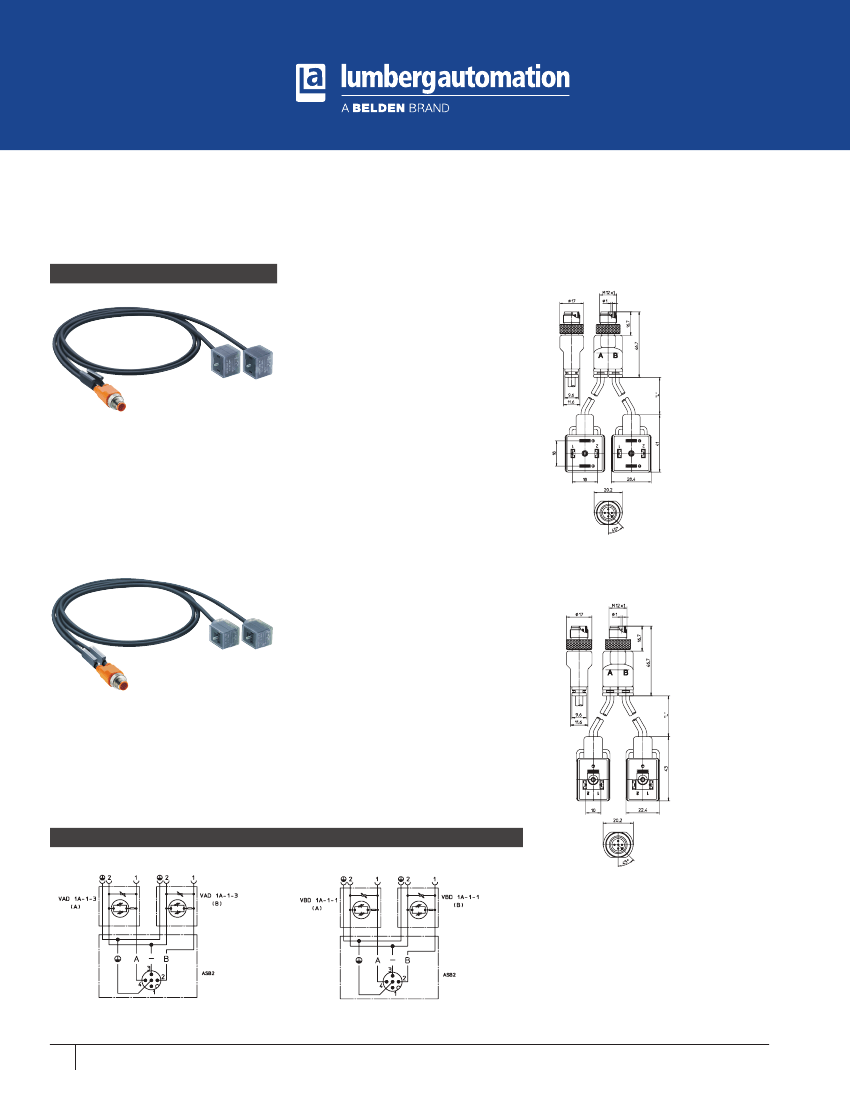

M12 / DIN Valve-Splitters, Double-Ended, IEC Color Code

ASB 2-VAD 1 A | ASB 2-VBD 1A

M12-Duo-Male - 2xDIN Valve

Actuator cordset, double-ended, M12 Duo male

connector with self-locking threaded joint and

two valve connectors according to

— DIN EN 175301-803, form A —

ASB 2-VAD 1A

M12-Duo-Male - 2xDIN Valve

Actuator cordset, double-ended, M12 Duo male

connector with self-locking threaded joint and

two valve connectors according to

— DIN EN 175301-803, form B —

ASB 2-VBD 1A

Pin Assignments

Wiring Diagrams

ASB 2 - VAD 1A

ASB 2 - VBD 1A

242

Technical Support:

1-717-217-2289

www.lumberg-automationusa.com

ASB 2-VAD 1A-1-3-226/1 M Related Products

	ASB 2-VAD 1A-1-3-226/1 M	ASB 2-VBD 1A-1-1-226/1 M	ASB 2-VAD 1A-1-3-226/1,5 M	ASB 2-VAD 1A-1-3-226/0,3 M	ASB 2-VBD 1A-1-1-226/2 M	ASB 2-VAD 1A-1-3-226/0,6 M	ASB 2-VAD 1A-1-3-226/2 M
Description	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
RoHS	Details	Details	Details	Details	Details	Details	Details
Connector End A	M12	M12	M12	M12	M12	M12	M12
Connector End A Pin Count	4 Pin	5 Pin	4 Pin	4 Pin	5 Pin	4 Pin	4 Pin
Connector End B	Valve Connector	Valve Connector	Valve Connector	Valve Connector	Valve Connector	Valve Connector	Valve Connector
Gender	Male / Male	Male / Male	Male / Male	Male / Male	Male / Male	Male / Male	Male / Male
Length	1 m	1 m	1.5 m	300 mm	2 m	600 mm	2 m
Current Rating	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Voltage Rating	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Number of Conductors	4 Conductor	5 Conductor	4 Conductor	4 Conductor	5 Conductor	4 Conductor	4 Conductor
Color	Black	Black	Black	Black	Black	Black	Black
Jacket Material	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)
Factory Pack Quantity	1	1	1	1	1	1	1
