STLC4370
Single Chip 802.11b/g WLAN Radio for Mobile Applications
DATA BRIEF
Features
■
■
■
■
Extremely small footprint
Ultra Low Power consumption
Fully compliant with the IEEE 802.11b and
802.11g WLAN standards
Support for 54, 48, 36, 24, 18, 12, 9, and
6Mbps OFDM, 11 and 5.5Mbps CCK and
legacy 2 and 1Mbps data rates
Single Chip 802.11b/g WLAN solution with
fully integrated:
– Zero IF (ZIF) transceiver,
– Voltage Controlled Oscillator (VCO),
– High-speed A/D and D/A converters,
– Radio Power Management Unit (PMU),
– OFDM and CCK baseband processor,
– ARM9 Media Access Controller (MAC),
– SPI serial host interface (up to 48Mbps)
Intelligent power control, including 802.11
power save mode
Fully integrated Bluetooth coexistence

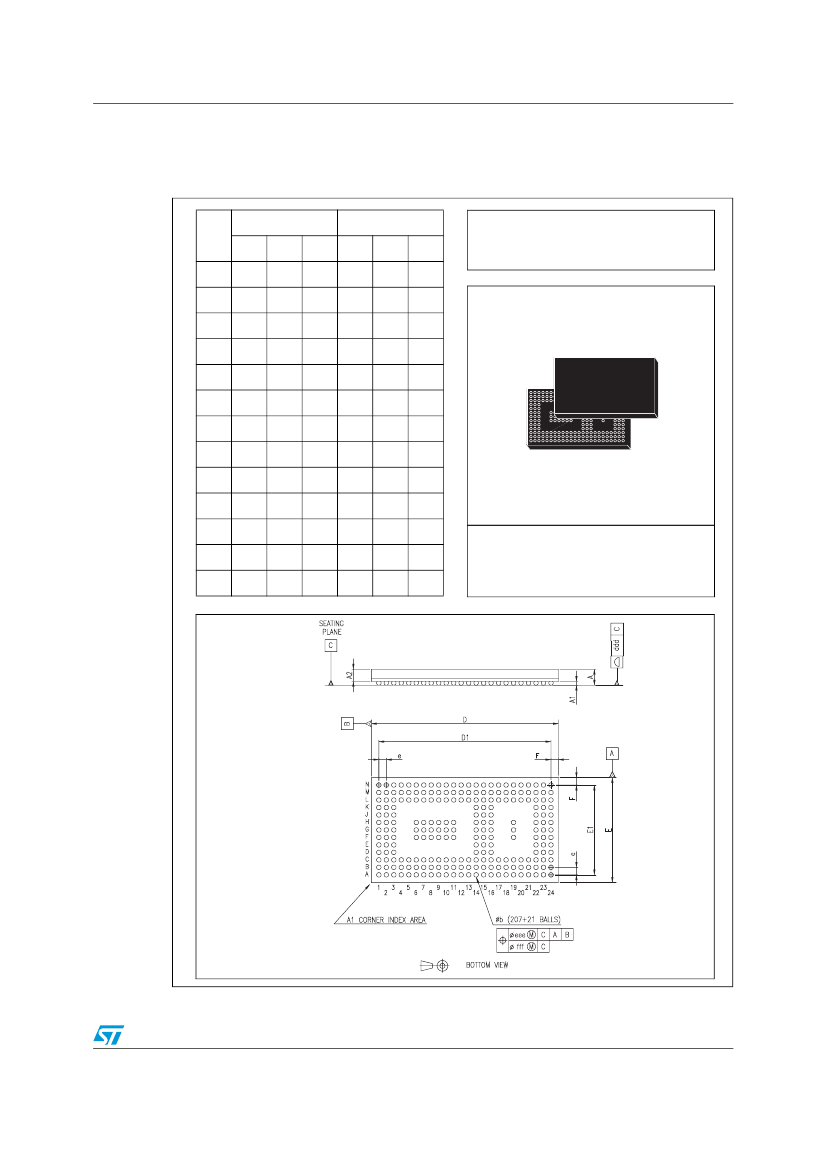

LFBGA (12.5 mm x 7 mm x 1.6 mm)
■
Order codes
Part Number
E-STLC4370A
Package
Lead-free LFBGA228
Description
The STLC4370 is a single chip 802.11b/g WLAN
radio for embedded, low-power and very small
form factor mobile applications. The product
conforms to the IEEE 802.11b and 802.11g
protocols operating in the 2.45GHz ISM
frequency band supporting OFDM data rates of
54, 48, 36, 24, 18, 12, 9, and 6Mbps as well as
CCK data rates of 11 and 5.5Mbps and legacy
data rates of 2 and 1Mbps.
The STLC4370 is a fully integrated wireless radio
including a ZIF transceiver, RF Synthesizer/VCO,
high-speed data converters, an OFDM/CCK
digital baseband processor, an ARM9-based
MAC and a complete Power Management Unit.
Host control is provided by a flexible serial
interface (SPI) supporting bit rates of 48Mbps. For
maximum flexibility, the STLC4370 accepts
system reference clock frequencies of 19.2, 26,
38.4 and 40MHz.
A reference design evaluation platform of
hardware and software is provided to system
integrators to rapidly enable wireless connectivity
to mobile platforms.
■
■
Applications
■
■
■
■
■
■
■
Cellular phones
Personal Digital Assistants (PDA)
Portable computers
Hand-held data transfer devices
Cameras
Computer peripherals
Cable replacement
January 2006
Rev. 1
1/5
www.st.com
5
For further information contact your local STMicroelectronics sales office.
