BV1LB150FJ-CE2

Description
Power Switch ICs - Power Distribution 1ch Low-side swtch 42V; 10A; SOP-J8
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size858KB,20 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

BV1LB150FJ-CE2 Online Shopping

Suppliers Part Number Price MOQ In stock
BV1LB150FJ-CE2 - - View Buy Now

BV1LB150FJ-CE2 Overview

Power Switch ICs - Power Distribution 1ch Low-side swtch 42V; 10A; SOP-J8

BV1LB150FJ-CE2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerROHM Semiconductor
package instructionLSOP, SOP8,.25
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time13 weeks
Built-in protectionTRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Number of drives1
Input propertiesSTANDARD
Interface integrated circuit typeBUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 codeR-PDSO-G8
length4.9 mm
Number of functions1
Number of terminals8
Output characteristicsOPEN-DRAIN
Output current flow directionSINK
Maximum output current6.5 A
Output polarityINVERTED
Package body materialPLASTIC/EPOXY
encapsulated codeLSOP
Encapsulate equivalent codeSOP8,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Filter levelAEC-Q100
Maximum seat height1.65 mm
Maximum supply voltage5.5 V
Minimum supply voltage3 V
Nominal supply voltage5 V
surface mountYES
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Disconnect time80 µs
connection time80 µs
width3.9 mm
Datasheet

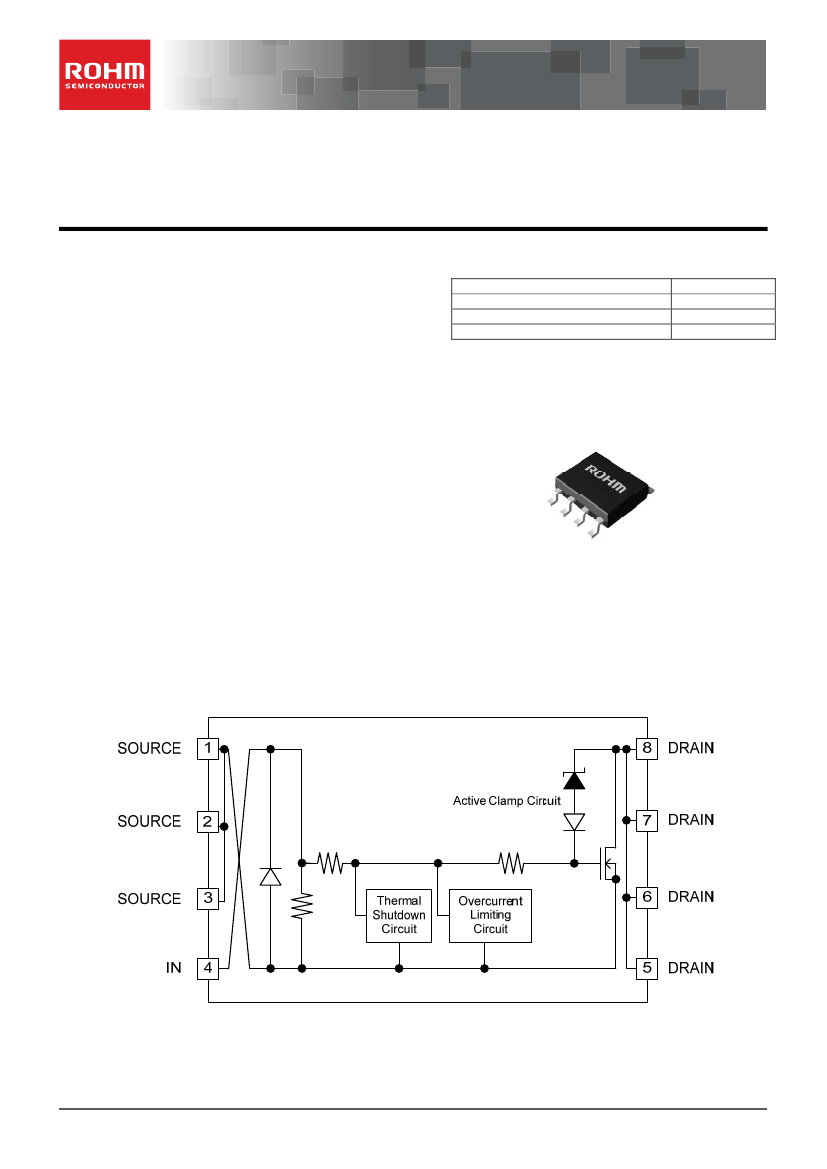

Automotive IPD Series
1ch Low Side Switch IC
BV1LB150FJ-C
Features
Built-in overcurrent limiting circuit(OCP)
Built-in thermal shutdown circuit(TSD)
Built-in active clamp circuit
Direct control enabled from CMOS logic IC, etc.
On-state resistance R
ON
=150mΩ(Typ)
(when V
IN
½5V,
I
D
=0.5A, Tj½25C)
Monolithic power management IC with the control
block (CMOS) and power MOS FET mounted on a
single chip
AEC-Q100 Qualified
(Note1)
(Note 1)
Grade1
Product Summary
On-state resistance (T
j
=25°C, Typ)
Overcurrent limit (T
j
=25°C, Typ)
Output clamp voltage (Min)
Active clamp energy (T
j
=25°C)
150mΩ
10.0A
42V
165mJ
Package
SOP-J8
W(Typ) x D(Typ) x H(Max)
4.90mm x 6.00mm x 1.65mm
General Description
The BV1LB150FJ-C is an automotive 1ch low side
switch IC, which has built-in overcurrent limiting circuit,
thermal shutdown circuit, and overvoltage (active clamp)
protection circuit.
Applications
1ch low side switch for driving resistive, Inductive load, Capacitive load
Block Diagram
○Product
structure: Silicon monolithic integrated circuit
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
This
product is not designed to protect it from radiation.
1/17
TSZ02201-0G3G0BD00100-1-2
31.Jan.2017 Rev.002
