5322R10KL2.0: DescriptionIndustrial Motion & Position Sensors Sensata Technologies; CategoryThe sensor; File Size247KB，2 Pages; ManufacturerSensata; Environmental Compliance

Download Datasheet Parametric View All

5322R10KL2.0 Overview

Industrial Motion & Position Sensors Sensata Technologies

5322R10KL2.0 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Sensata
Product Category	Industrial Motion & Position Sensors
RoHS	Details
Product	Position Sensor
Linearity	+/- 2 %
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Resistance Range	10000 Ohms
Type	Rotary Precision Position Sensor
Electrical Travel	240 deg
Mechanical Travel	250 deg
Mounting Style	Panel
IP Rating	IP66, IP67

Preview

Download Datasheet

View All

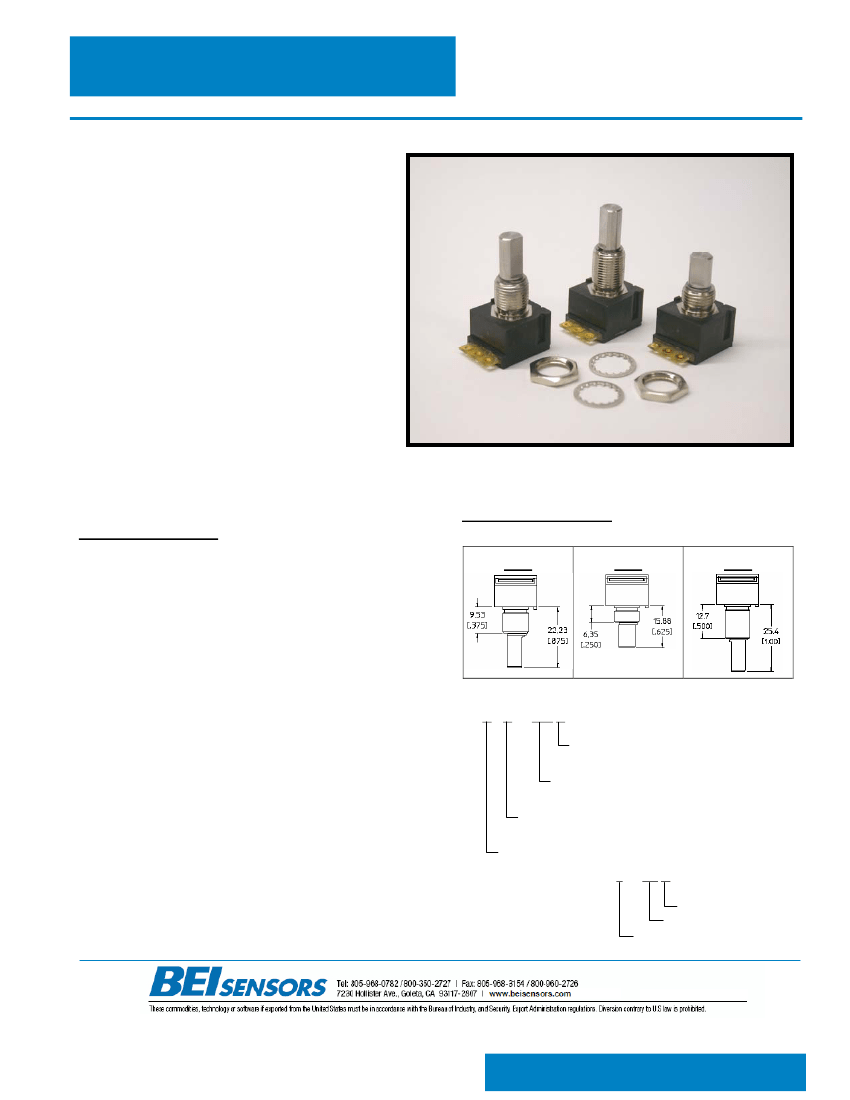

Rotary Precision Position Sensor

Single Turn, Compact, Sealed, Extended Life

The BEI

5320 Series offers a highly reliable

rotary potentiometer sensor that can be easily integrated

or re-packaged into a wide variety of existing and new

applications. The new 5320 Series is ideally suited for

tight packaging constraints while providing superior

durability, long service life and repeatable accuracy.

The sensor is fully sealed and impervious to

contamination and moisture. A wide variety of standard

and non-standard options are available including detent

functions, electrical/mechanical angles, shaft/bushing

sizes, lengths and configurations, resistance values, etc.

The 5320 Series standard termination offers gold plated

through holes for direct soldering. Options are also

available for custom termination methods by contacting

Sales. The 5320 series sensors offer all of the

advantages of a cost effective, traditional potentiometer

while providing a rugged, compact, low-profile design to

survive the harshest conditions.

5320

Series

Panel Pot

Ordering Information:

5320 Series Features:

Extended Operating Life

1 million plus operational cycles

Fully Sealed Construction

Meets or exceeds IP66/IP67 standards

Extended Temperature Range

Operating: -40º to +125ºC

Storage: -55º to +150ºC

High Quality, Rugged Construction

Stainless Steel Shaft, Nickel Plated Brass Bushing

See Reverse for Additional Environmental Specifications

Wide Range of Configurations (see ordering info)

Shaft and Bushing Lengths

Linearity (accuracy) Tolerance Limits

With or Without Detent Function

Total Resistance

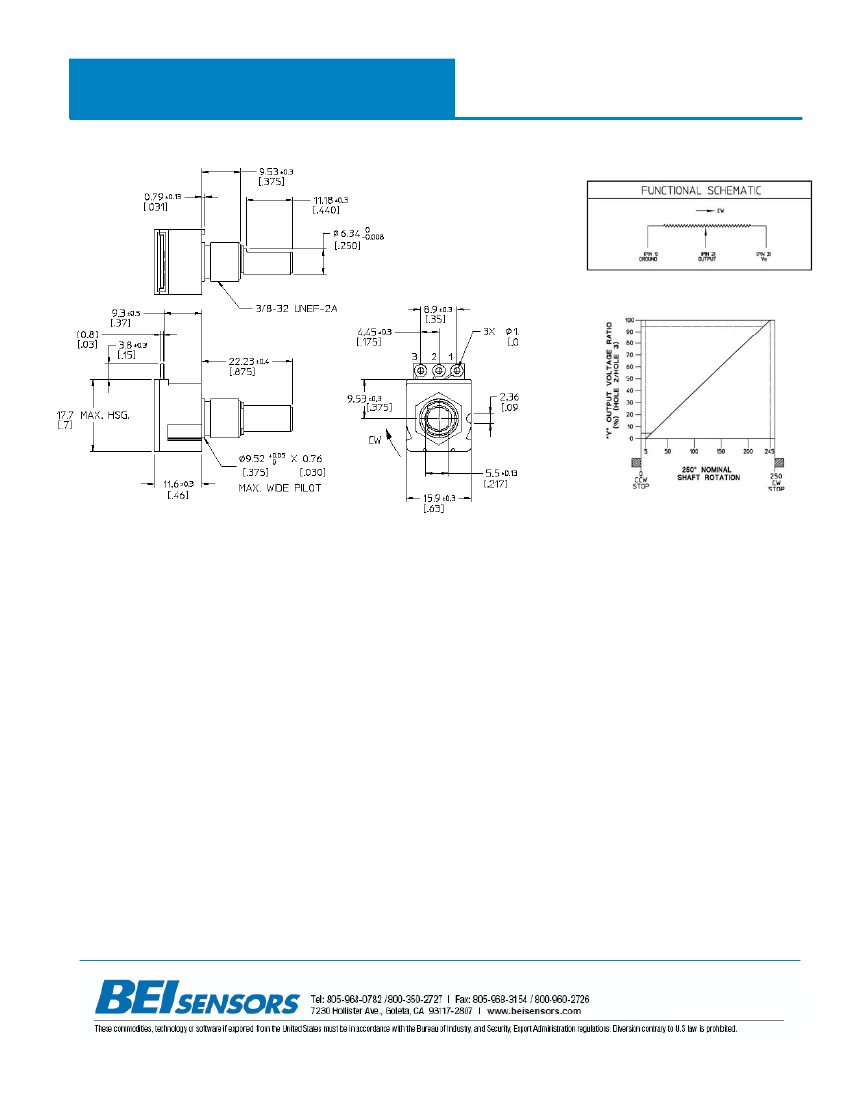

Dimensions are shown in millimeters [inches reference]

532X RXK LX.X X

Detent:

Blank = None, D = Included

Independent Linearity:

Standard = +/-2.0%

Total Resistance:

Standard = 1K, 5K or 10K

Basic Configuration Model (identified above)

Basic Configurations: Shaft & Bushing Lengths

5321

5322

5323

Custom Options Available (contact Duncan Sales)

STANDARD PART: 5321 R5K L2.0

No Detent Function

Standard +/-2.0% Linearity

5K Total Resistance

170 Technology Drive

Irvine, CA 92618-2401

(949) 341-9500 Fax: (949) 453-2700

email: sales@beiduncan.com

ISO 9001 : 2000 Registered
