CAT140041MWI-GT3 Overview

Voltage Supervisor with I2C Serial CMOS EEPROM

CAT140041MWI-GT3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum clock frequency (fCLK)	0.1 MHz
JESD-30 code	R-PDSO-G8
JESD-609 code	e4
length	4.9 mm
memory density	4096 bi
Memory IC Type	EEPROM
memory width	1
Number of functions	1
Number of terminals	8
word count	4096 words
character code	4000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	4KX1
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	260
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.9 mm
Maximum write cycle time (tWC)	5 ms
Base Number Matches	1

Preview

Download Datasheet

View All

CAT140xx

Voltage Supervisor with I C Serial

CMOS EEPROM

FEATURES

Precision Power Supply Voltage Monitor

5V, 3.3V, 3V & 2.5V systems

7 threshold voltage options

Active High or Low Reset

Valid reset guaranteed at V

= 1 V

Supports Standard and Fast I

C Protocol

16-Byte Page Write Buffer

Low power CMOS technology

1,000,000 Program/Erase cycles

100 year data retention

Industrial temperature range

RoHS-compliant 8-pin SOIC package

For Ordering Information details, see page 14.

DESCRIPTION

The CAT140xx (see table below) are memory and

supervisory solutions for microcontroller based systems. A

CMOS serial EEPROM memory and a system power

supervisor with brown-out protection are integrated

together. Memory interface is via both the standard

(100kHz) as well as fast (400kHz) I

C protocol.

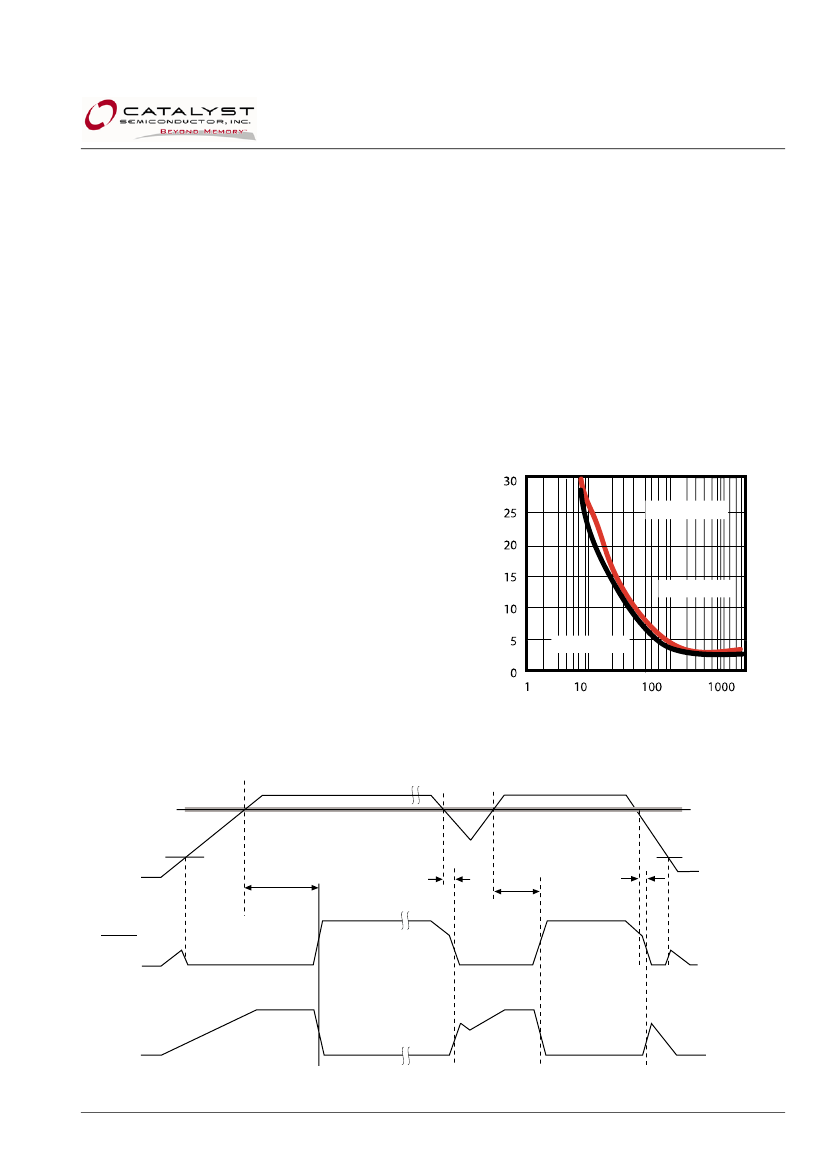

The CAT140xx provides a precision V

sense circuit

with two reset output options: CMOS active low output

or CMOS active high. The RESET output is active

whenever V

is below the reset threshold or falls

below the reset threshold voltage.

The power supply monitor and reset circuit protect

system controllers during power up/down and against

brownout conditions. Seven reset threshold voltages

support 5V, 3.3V, 3V and 2.5V systems. If power

supply voltages are out of tolerance reset signals

become active, preventing the system microcontroller,

ASIC or peripherals from operating. Reset signals

become inactive typically 240ms after the supply

voltage exceeds the reset threshold level.

PIN CONFIGURATION

SOIC (W)

CAT14016 / 08 / 04 / 02

NC / NC / NC / A

NC / NC / A

/ A

NC / A

/ A

RST/RST

SCL

SDA

MEMORY SIZE SELECTOR

Product

14002

14004

14008

14016

Memory density

2-Kbit

4-Kbit

8-Kbit

16-Kbit

PIN FUNCTION

Pin Name

A0, A1, A2

SDA

SCL

¯¯¯¯

RST/RST

Function

Device Address Inputs

Serial Data Input/Output

Serial Clock Input

Reset Output

Power Supply

Ground

No Connect

THRESHOLD SUFFIX SELECTOR

Nominal Threshold

Voltage

4.63V

4.38V

4.00V

3.08V

2.93V

2.63V

2.32V

Threshold Suffix

Designation

Characteristics subject to change without notice
