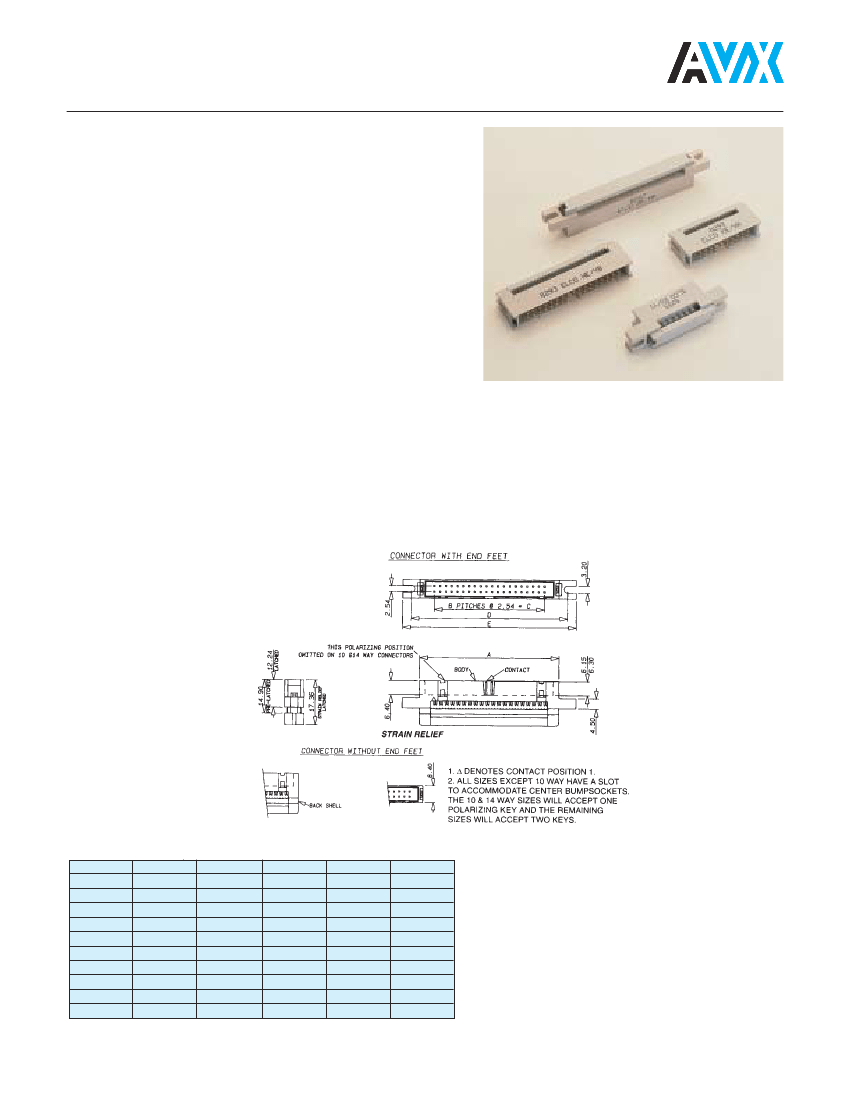

Male Plug Connector
Series 8293
Series 8293 IDC
male plug connectors are available in
industry standard sizes of 10 to 64 positions. They mate
with Series 8290 IDC sockets as well as other industry
compatible connectors. The housing gives full protection
to contact pins, and has the optional facility of fitting dual
height polarizing keys to prevent incorrect insertion of the
mating socket.
TECHNICAL SPECIFICATION
Material:
Molding - UL94VO rated glass filled grey
polyester
Contact - Phosphor bronze
Contact Plating:
Gold over nickel
Current Rating:
1 ampere at 70ºC maximum ambient
Voltage Rating:
350V DC or AC peak
Insulation Resistance:
>1000 megohms
Dielectric Withstanding Voltage:
1050 DC or AC peak
UL and CSA Approval pending
Operating Temperature:
-55ºC to +105ºC
Contact Resistance:
Initially, 10 milliohms max.
DIMENSIONS:
millimeters (inches)
No. of Ways
10
14
16
20
26
34
40
50
60
64
A
22.89 (0.901)
27.97 (1.101)
30.51 (1.201)
35.59 (1.401)
43.21 (1.701)
53.37 (2.101)
60.99 (2.401)
73.69 (2.091)
86.39 (3.401)
91.47 (3.601)
B
4
6
7
9
12
16
19
24
29
31
C
10.16 (0.400)
15.24 (0.600)
17.78 (0.700)
22.86 (0.900)
30.48 (1.200)
40.64 (1.600)
48.26 (1.900)
60.96 (2.400)
73.66 (2.900)
78.74 (3.100)
D
30.48 (1.200)
35.56 (1.400)
38.10 (1.500)
43.18 (1.700)
50.80 (2.000)
60.96 (2.400)
68.58 (2.700)
81.28 (3.200)
93.98 (3.700)
98.74 (3.900)
E
38.10 (1.500)
43.18 (1.700)
45.72 (1.800)
50.80 (2.000)
56.59 (2.228)
68.58 (2.700)
76.20 (3.000)
88.90 (3.500)
101.60 (4.000)
106.68 (4.200)
18
ELCO
Male Plug Connector
Series 8293
CUSTOMER APPLICATION TOOLING
A standard hand press set and platen is
available. See page 27.
POLARIZING KEYS
Order Code:
90 2118 7000 00 000
ORDERING CODE
10
Connector Code
Prefix
10 = Standard
Connector
Assembly with
mounting flange
11 = Standard
Connector
Assembly
without
mounting flange
8293
Series Number
026
Number of
Contacts
010 = 10 position
014 = 14 position
016 = 16 position
020 = 20 position
026 = 26 position
034 = 34 position
040 = 40 position
050 = 50 position
060 = 60 position
064 = 64 position
000
Assembly Variation
000 = Connector
without strain
relief
001 = Connector
with strain relief
01
0
Plating Variation
Polarization Variation
01 = Standard 30µ" 0 = No Polarizing
Gold over
2 = Dual Height Type A
Nickel
04 = 10µ" Gold over
Nickel
Strain Relief Order Code
10 position
14 position
16 position
20 position
26 position
34 position
40 position
50 position
60 position
64 position
60 8293 3310 00 000
60 8293 3314 00 000
60 8293 3316 00 000
60 8293 3320 00 000
60 8293 3326 00 000
60 8293 3334 00 000
60 8293 3340 00 000
60 8293 3350 00 000
60 8293 3360 00 000
60 8293 3364 00 000
ELCO
19
