Surge arrester
3-electrode arrester
Series/Type:
Ordering code:
Version/Date:
Version:
T23-A420XF4
B88069X7140B502
Issue 06 / 2007-04-23
01
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white" (or invisible). This ensures that the table disappears for the customer
PDF. To update the data sheet, click on the symbol "Preview" and then "Close". Please do not alter the header or
footer when copying the content.
Identification/Classification 1:
(header 1 + top left header bar)
Identification/Classification 2:
(header 2 + bottom left header bar)
Ordering code:
(top right header bar)
Series/Type:
(top right header bar)
Surge arrester
3-electrode arrester
B88069X7140B502
T23-A420XF4
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Surge arrester
3-electrode arrester
B88069X7140B502
T23-A420XF4
Features
Standard size
Fast response time
Very high current rating
Stable performance over life
Very low capacitance
High insulation resistance
RoHS-compatible
Electrical specifications
DC spark-over voltage
1) 2) 4)
Applications
Line protection
Station protection
Base stations
350 ... 550
V
Impulse spark-over voltage
4)
at 100 V/µs - for 99 % of measured values
- typical values of distribution
at 1 kV/µs
Service life
10
1
10
1
1
- for 99 % of measured values
- typical values of distribution
50 Hz; 1 s
5)
50 Hz; 9 cycles
5)
8/20 µs
5)
8/20 µs
5)
10/350 µs
5)
< 750
< 700
< 850
< 800
10
50
20
25
5
> 10
< 1.5
< 0.2
~ 30
~1
~ 200
~ 2.5
-40 ... +90
40/ 90/ 21
420 YY M O
420
YY
M
- Nominal voltage
- Year of production
- Month of production
(1 ... 9 = Jan ... Sep;
O ... D = Oct ... Dec)
- Non radioactive
V
V
V
V
A
A
kA
kA
kA
GΩ
pF
µs
V
A
V
g
°C
operations
operation
operations
operation
operation
Insulation resistance at 100 V
dc 4)
Capacitance at 1 MHz
4)
Transverse delay time
3)
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
Weight
Storage temperature
Climatic category (IEC 60068-1)
Marking, blue negative
O
KB AB E / KB AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 4
Issue 06 / 2007-04-23
Surge arrester
3-electrode arrester
B88069X7140B502
T23-A420XF4
1)
2)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
3)
Test according to ITU-T Rec. K.12
4)
Tip or ring electrode to center electrode
5)
Total current through center electrode, half value through
tip respectively ring electrode.
Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE0845
The arrester failsafe mechanism contains a solder pellet with a melting
temperature between 193 and 203 °C.

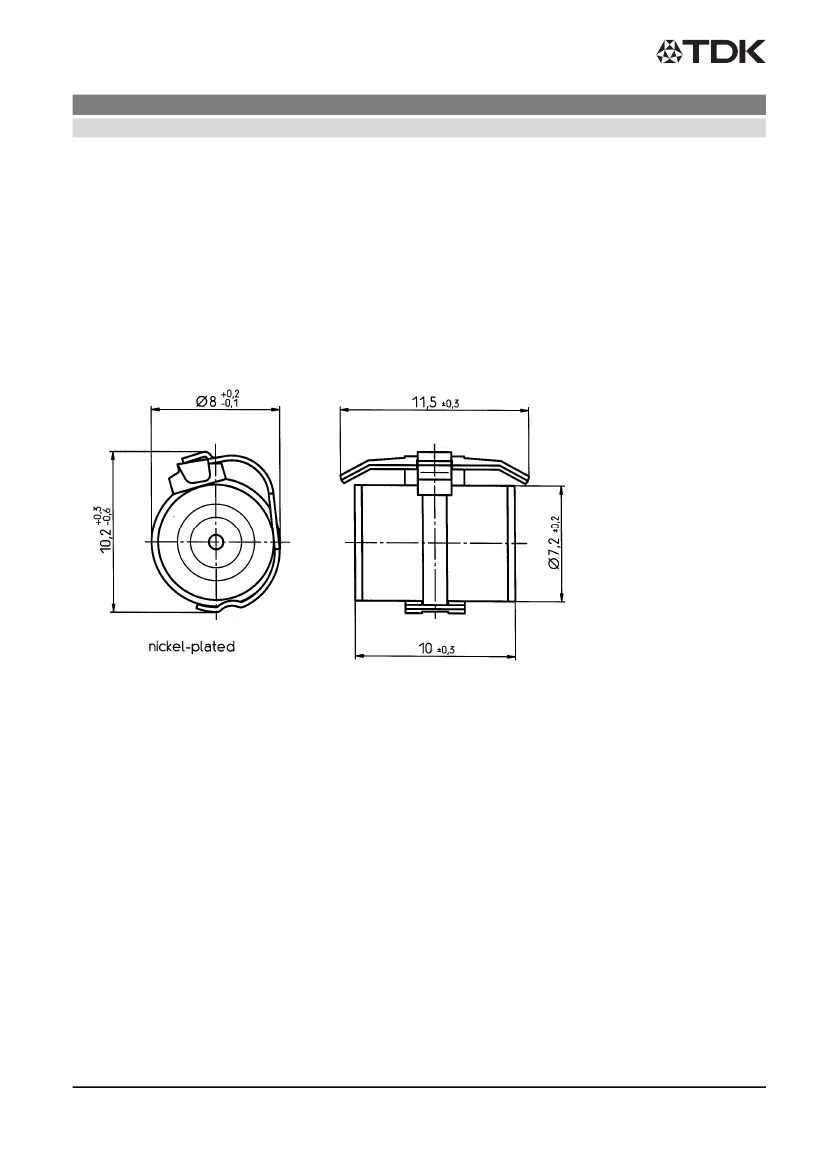

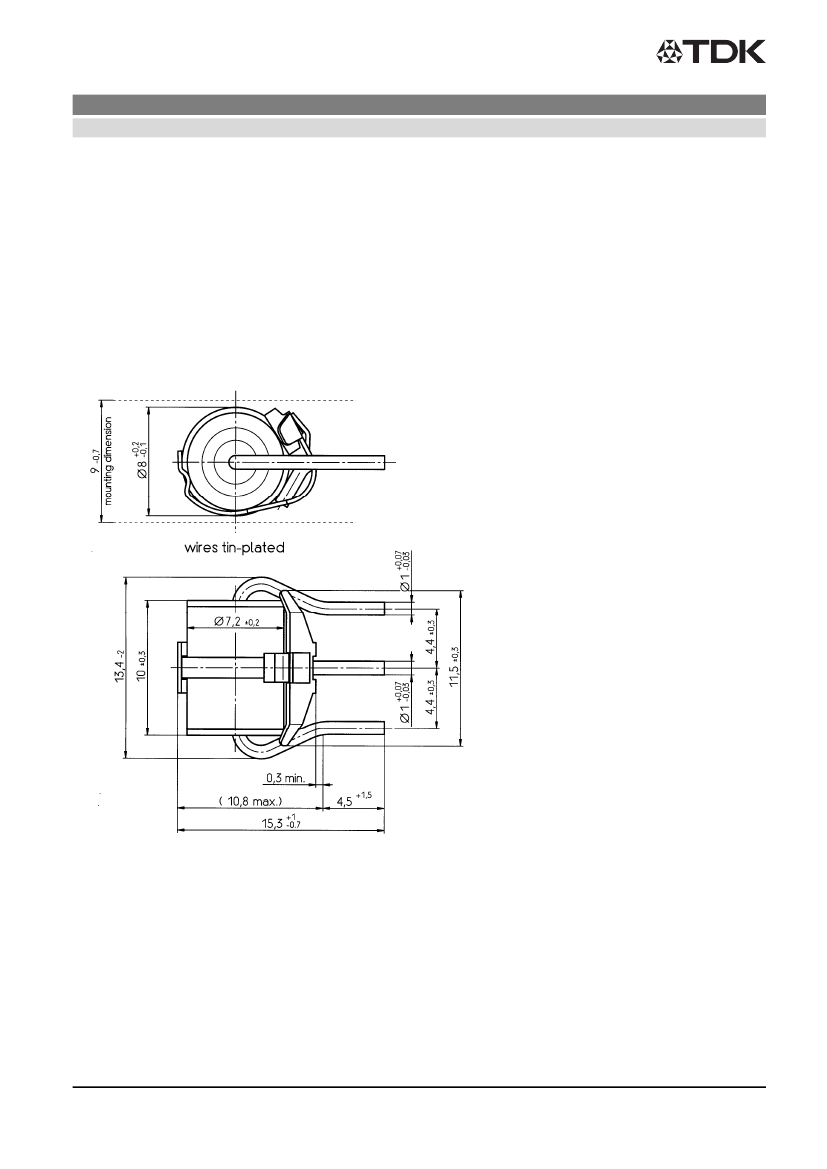

Dimensional drawing
Not to scale
Dimensions in mm
Non controlled document
Cautions and warnings
The short-circuit spring does not trigger until 180 °C is reached depending on the material. Care
must be taken to limit the thermal radiation onto adjacent parts to safe values.
Surge arresters must not be operated directly in power supply networks.
Surge arresters may become hot in case of longer periods of current stress (danger of burning).
Surge arresters may be used only within their specified values. In case of overload, the head
contacts may fail or the component may be destroyed.
Damaged surge arresters must not be re-used.
KB AB E / KB AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 4
Issue 06 / 2007-04-23
