Technical Data Sheet
RPC-1.85
ADAPTOR
JACK – PLUG
08KR121-SR00S3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

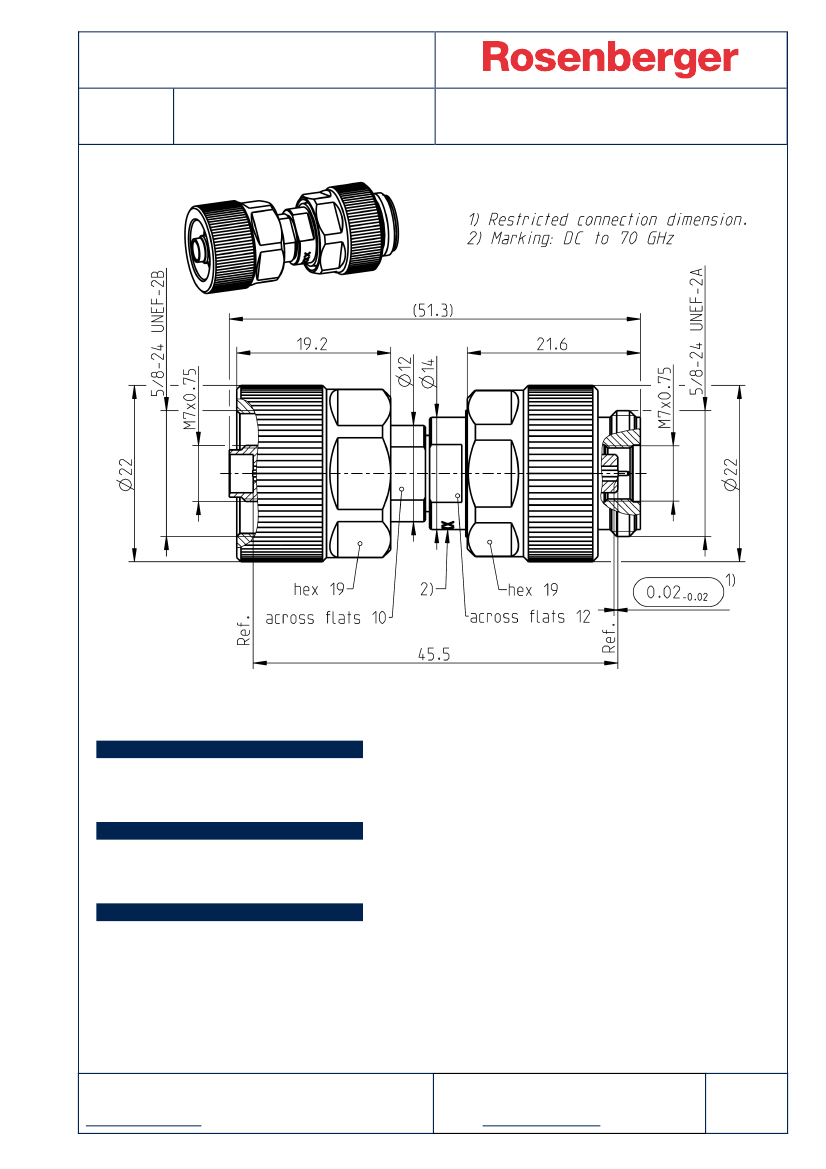

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
Mechanically compatible with
IEC 61169-32
RPC-2.40
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact
Coupling nut
Dielectric
Material
CuBe
Stainless steel
Stainless steel
PEEK
Plating
Gold, min. 1.27 µm, over chemical nickel
Passivated
Passivated
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
RPC-1.85
Electrical data
Impedance
Frequency
Return loss
50
Ω
DC to 70 GHz
≥
28 dB, DC to 18 GHz
≥
21 dB, 18 GHz to 50 GHz
≥
17 dB, 50 GHz to 70 GHz
≤
0.05 x
f(GHz)
dB
≥
5 GΩ
≤
4.0 mΩ
≤
2.5 mΩ
500 V rms
150 V rms
≥
100 dB up to 1 GHz
ADAPTOR
JACK – PLUG
08KR121-SR00S3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
Mechanical data
Mating cycles
Center contact captivation
Coupling test torque
Recommended torque
Recommended torque ruggedized nut
≥
500
≥
20 N
1.65 Nm
0.80 Nm to 1.10 Nm
1.36 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
2002/95/EC (RoHS)
-40° to +85°C
C
IEC 61169-1, Subclause 9.4.4
IEC 61169-1, Subclause 9.4.6
IEC 61169-1, Subclause 9.3.3
IEC 61169-1, Subclause 9.3.14
IEC 61169-1, Subclause 9.4.3
compliant
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in box
94.3 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Martin Moder
Date
22/03/11
Approved
Roland Neuhauser
Date
05/06/12
Rev.
b00
Engineering change number
12-0375
Name
Maik Knoll
Date
05/06/12
