REVISIONS
REV
B1
ECO
-
DESCRIPTION
RELEASED DRAWING
DATE
JUN-25-2014
BY
BEN
APPR
TOMMY
9/16-24 UNEF THREAD
11/16-24 UNEF THREAD
MASTER KEYWAY
TITLE:
Ø15.0
27.0

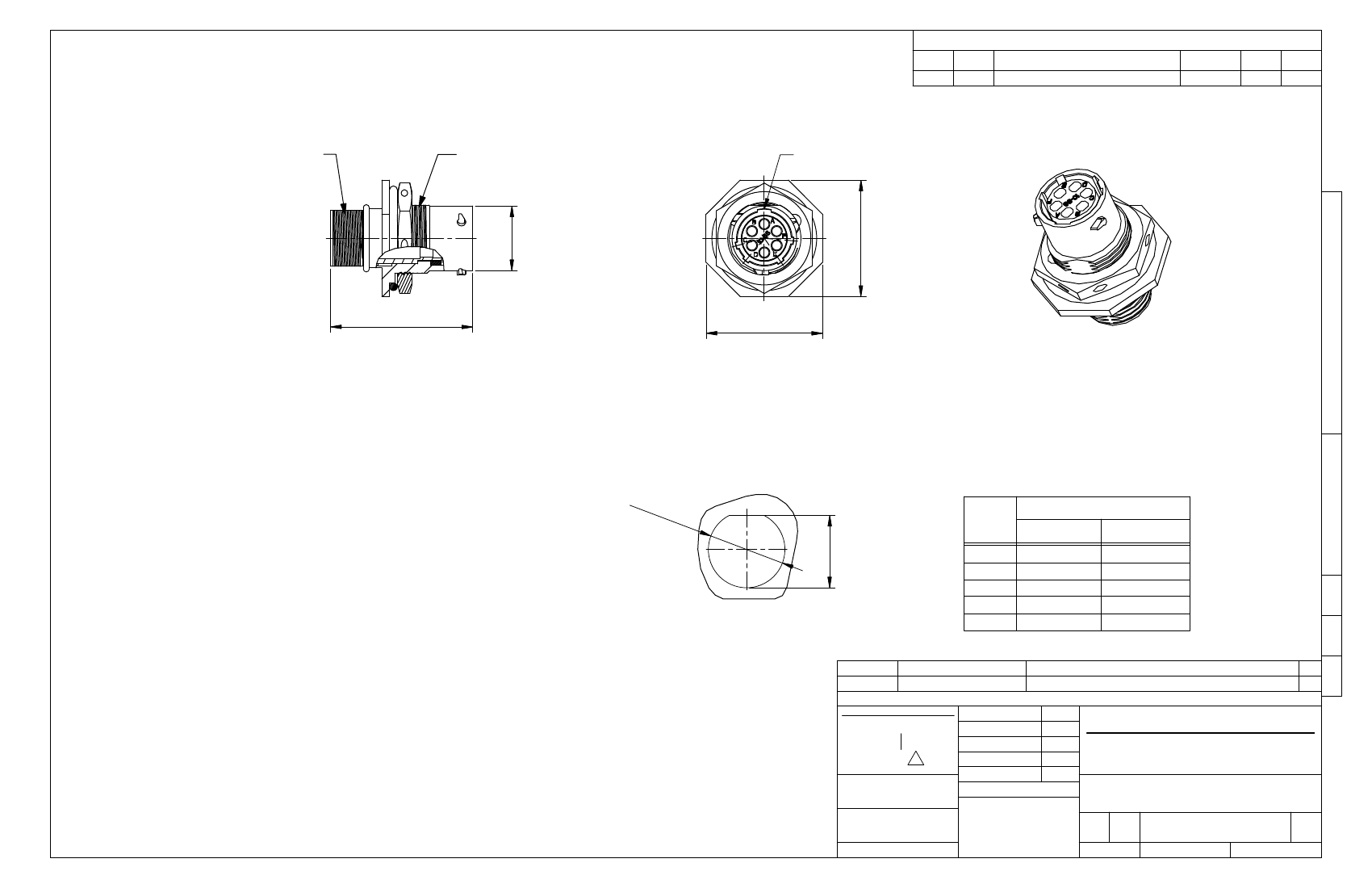

ECO-MATE,RECEPTACLE,JAM NUT,SIZE 10, 6 POS,SOCKET.
33.0
27.0
NOTES：(UNLESS OTHERWISE SPECIFIED)
1. MATERIAL：
SHELL：ZINC ALLOY，NICKEL PLATED.
JAM NUT : Al ALLOY，NICKEL PLATED.
INSERT：THERMOPLASTIC，UL94 V-0.
O-RING：NBR/SILICONE RUBBER.
SEAL GASKET：NBR/SILICONE RUBBER.
2. SPECIFICATIONS：
2.1 RATED CURRENT：
2.1.1 STAMPED CONTACT：5A (MAX) .
2.1.2 MACHINED CONTACT : 7.5A (MAX) .
2.2 RATED VOLTAGE：150V（AC/DC）.
2.3 OPERATING TEMPERATURE：SEE CHART.
2.4 DIELECTRIC WITHSTANDING VOLTAGE：LESS THAN
2 MILLIAMPS CURRENT LEAKAGE@1500 VOLTS AC.
2.5 INSULATION RESISTANCE：5000 MEGOHMS MIN.
2.6 IP--CLASS：IP67.
2.7 MATING CYCLES DURABILITY：500 CYCLES MIN.
3. SUITABLE CONTACTS ：20# CONTACTS.
4. ROHS COMPLIANT.
5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
DWG NO:
ø17
+
.8
0.2
0
16.8
+0.2
0
RT0W7106S*H*
PART NUMBER
KEY POS
N
W
X
Y
Z
-40°C ~ 105°C
-40°C ~ 125°C
RT0W7106SNH RT0W7106SNH03
RT0W7106SWH RT0W7106SWH03
RT0W7106SXH RT0W7106SXH03
RT0W7106SYH
RT0W7106SYH03
RT0W7106SYH RT0W7106SYH03
REV:
B1
PANEL CUT OUT REFERENCE
SH:
1
QUANTITY
SEE PART NUMBER
CHART
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
OF:
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
BEN
JUN-25-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE,RECEPTACLE,JAM NUT,
SIZE 10, 6 POS,SOCKET.
TYPE
DWG NO:
REVISION
B
C-
RT0W7106S*H*
SHEET
B1
OF
NONE
1
1
